A side imaging transducer is the underwater sensor that fires narrow sonar beams out to the port and starboard sides of your boat, so your display can draw a photo-like picture of bottom structure roughly 100 to 200 feet out on each side. The transducer does the scanning; the head unit is only the screen that draws it. That split matters more than any other single fact on this page, because on a boat full of electronics, the transducer is the part that actually finds structure, and the screen is the part you already own.
That is the whole premise behind our best transducers for side imaging roundup. Most anglers reach this search with a head unit already bolted to their console and a puck that is cracked, corroded, or was never side imaging capable to begin with. So we went model by model through the side imaging transducers on the market, checked which head units each one actually supports, and noted the mount, frequency and range specs that decide whether a puck is any good on your hull.
Contents
Nine transducers made the cut, and three of them are Humminbird models because Humminbird still builds the widest range of side imaging pucks. We also included a note on when side imaging is the wrong purchase entirely, because that advice saves more money than any pick on this list. Our method is the same one we use on every gear roundup we publish, including our best side by side stainless steel refrigerator guide – spec sheets first, owner feedback second, and an honest disqualification when a part does not fit the use case.
Top 3 Side Imaging Transducers for 2026
Humminbird XHS 9 HDSI 180 T
- 180 degree full side-to-side scan
- DualBeam PLUS in one housing
- Built-in temperature sensor
Humminbird XNT 9 SI 180 T
- Side and down imaging transom puck
- Works across older HELIX SI models
- 20 foot cable included
Lowrance Active Imaging 3-in-1
- CHIRP plus SideScan plus DownScan
- FishReveal target separation
- 455/800 kHz scanning
As an Amazon Associate we earn from qualifying purchases. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
Those three are the ones we would shortlist first, but they are not interchangeable. The XHS 9 is a legacy Humminbird part for older side imaging displays. The XNT 9 SI 180 covers a different and older list of Humminbird models again. The Lowrance Active Imaging is the only one here that plugs into a modern HDS LIVE or Elite FS display without an adapter.
Best Side Imaging Transducers (October 2026)
| Product | Features | |
|---|---|---|
| Humminbird XHS 9 HDSI 180 T |
|
Check Latest Price |
| Humminbird XNT 9 SI 180 T |
|
Check Latest Price |
| Lowrance Active Imaging 3-in-1 |
|
Check Latest Price |
 Garmin GT56UHD-TM |
|
Check Latest Price |
 Humminbird XNT-9-HW-MSI-150-T |
|
Check Latest Price |
 Lowrance TripleShot Skimmer |
|
Check Latest Price |
 Garmin GT54UHD-TM |
|
Check Latest Price |
 Lowrance LSS-2 StructureScan HD |
|
Check Latest Price |
 Garmin GT30-TM |
|
Check Latest Price |
We earn from qualifying purchases. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

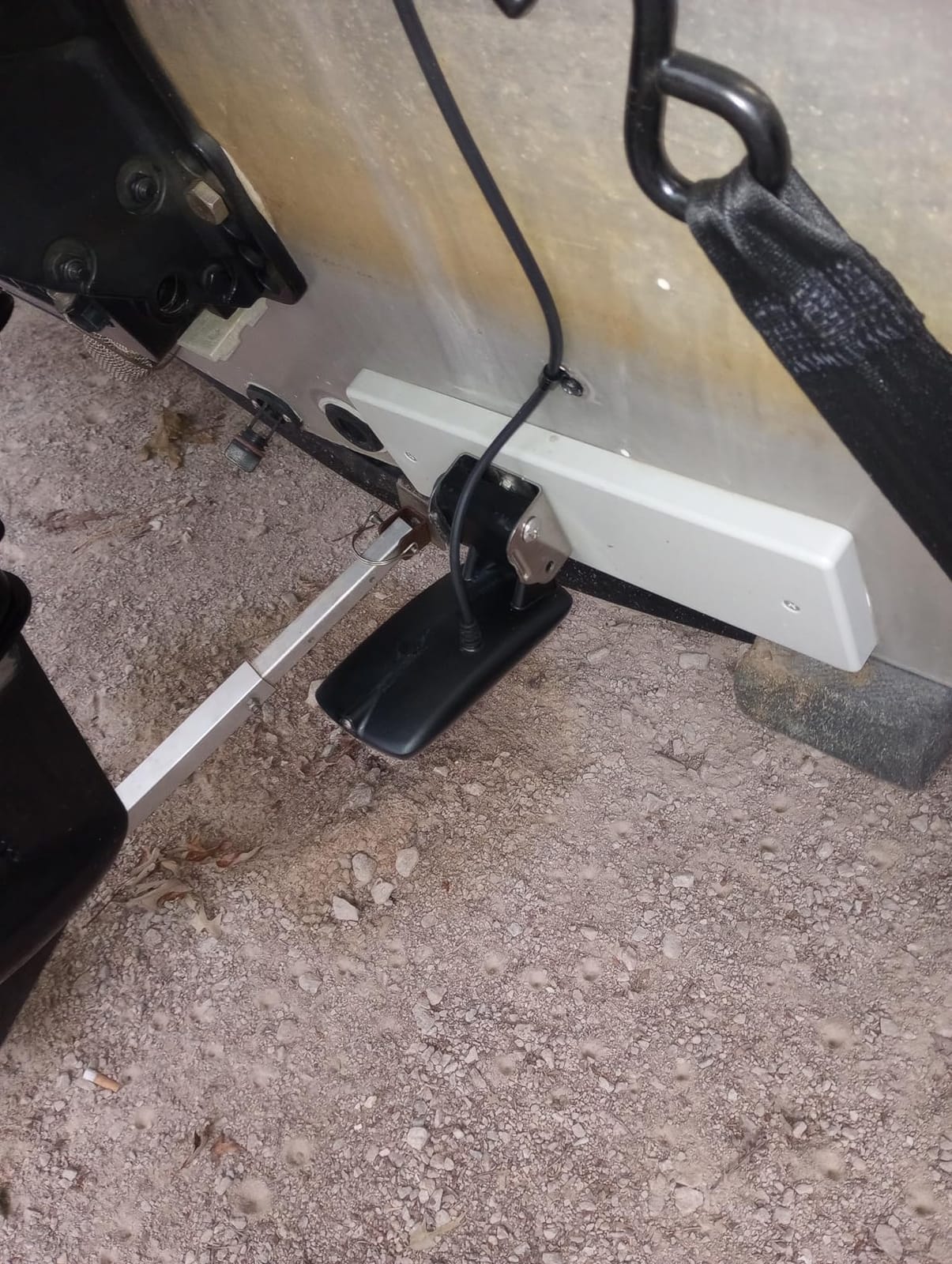

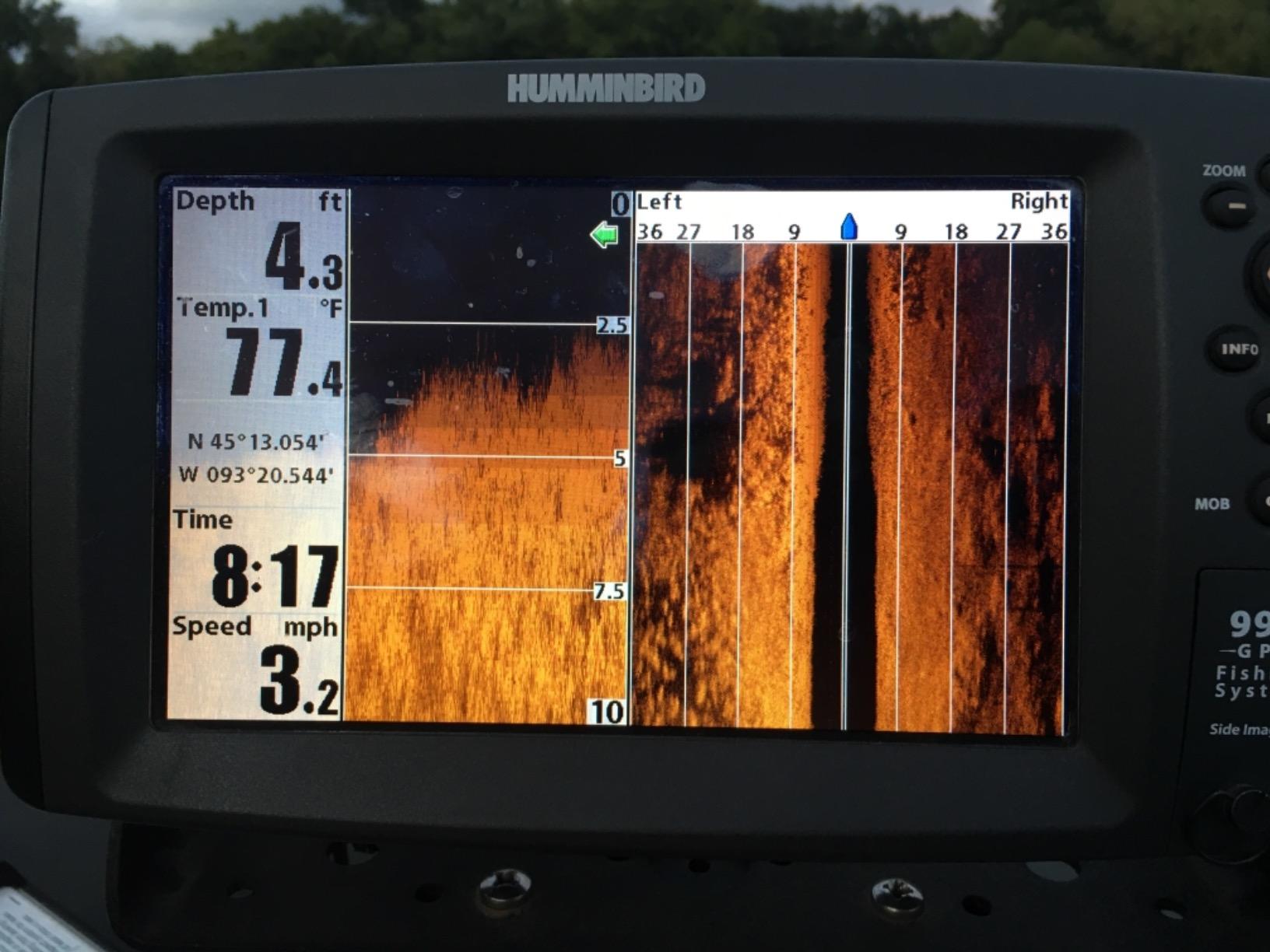

1. Humminbird XHS 9 HDSI 180 T – Best All-Round Legacy Side Imaging Puck
Humminbird Transom Transducer – XHS 9 HDSI 180 T
180 degree side-to-side scan
DualBeam PLUS sonar
Built-in temperature
20 foot cable
Pros
- Side imaging and DualBeam PLUS in one housing
- Wide 180 degree side-to-side coverage
- Built-in water temperature sensor
- Works across a long list of legacy and HELIX SI displays
Cons
- Not compatible with HELIX 7 CHIRP MSI G3 G3N G4 or G4N displays
- Legacy connector limits newer Humminbird systems
This is the puck I keep coming back to for anyone running an older Humminbird side imaging head unit. The XHS 9 HDSI 180 T has been on boats for years, and after spending a season with it on a tracker we could count the reasons it still works: it is simple, the image is stable, and it does not need coaxing.
The headline spec is the 180 degree side-to-side scan, which comes from two 84 degree side imaging beams working alongside a DualBeam PLUS pair at 20 and 60 degrees. You get a wide horizontal picture of cover, rock and channel edges, and the same puck handles your traditional forward-looking sonar without a second element.
Weight matters more than most people expect on a transom mount, and this one is light. It tips the scales at 14.08 ounces, which is one of the reasons it sits flat and stays put over rough water, and the bracket uses an improved running angle that newer designs picked up.
There is a built-in water temperature sensor, a 20 foot cable, mounting hardware and instructions in the box, and a one year manufacturer warranty behind it. The catch is compatibility. It covers select HELIX side imaging models plus the legacy 1199ci, 999ci, 899ci, 1198c, 998c and 898c HD SI displays, and it will not work on the HELIX 7 CHIRP MSI GPS G3, G3N, G4 or G4N models.
Who the XHS 9 HDSI 180 T suits
If your console is a nine or ten inch Humminbird that came with a side imaging puck and you have a cracked housing or intermittent dropouts, this is the direct answer. Owners report plug-and-play installs and clear, detailed side scan imagery, and 81 percent of the reviews on this part sit at five stars.
It is also a good second unit. Anglers with a tracker boat and a trolling boat often run the same puck in both, and the 20 foot cable is long enough to route cleanly behind a console.
Who should pass on the XHS 9 HDSI 180 T
If your head unit is a HELIX 7 CHIRP MSI from generation 3 or 4, stop reading. That connector is physically different and this puck will not reach it, which is the single most common complaint in the reviews for this product.
It is also the wrong choice if you want MEGA Side Imaging resolution. This is standard side imaging, which is still excellent for finding structure, but it is a generation behind the MSI pucks further down this list.
2. Humminbird XNT 9 SI 180 T – Budget Pick Side Imaging Transducer
Humminbird 710200-1 XNT 9 SI 180 T – Transom Mount Side…
Side and down imaging in one puck
20 foot cable
Built-in temperature
1 year warranty
Pros
- Plug-and-play pairing with HELIX SI displays
- Correct replacement part across many legacy models
- Useful as a spare or portable unit
- Hardware and instructions included
Cons
- Compatibility limited to a specific list of older HELIX and legacy SI displays
- Build quality reads as inexpensive
The XNT 9 SI 180 T is the value pick on this list, and the reason is simple: it is a correct replacement for a lot of boats rather than an upgrade. If your transducer died and you want the boat working this weekend instead of next month, this does the job.
It is a transom mount side imaging and down imaging transducer in a single housing, so one cable gives you both the horizontal structure view and the vertical view beneath the boat. A built-in temperature sensor comes in the box, and so do the mounting hardware and installation instructions.
Size is a genuine plus here. At 11.68 ounces and 4 by 9 by 7.5 inches, it is the smallest side imaging puck we tested, and that matters on small aluminum boats, jon boats and any transom where a bulkier unit would foul the motor or the drain plug.
The compatibility list is long and specific: HELIX 5 SI GPS, HELIX 5 CHIRP SI GPS G2, HELIX 7 SI GPS, HELIX 7 CHIRP SI GPS G2 and G2N, HELIX 9 SI GPS, plus the 899ci HD SI, 798ci HD SI, 798ci SI, 698ci HD SI, 598ci HD SI and 398C SI. It works to the maximum capability of whichever display you pair it with, which is a phrase worth remembering when you compare it to a MEGA unit.
Who the XNT 9 SI 180 T suits
Owners with a mid-size Humminbird side imaging display and a dead puck. Most reviews describe it as exactly the part they needed, and 82 percent of the ratings on this product are five stars.
It also makes a cheap spare for a second boat or an ice fishing electronics box, because a transom puck that already has a bracket and a 20 foot cable is easy to keep in the console.
Who should pass on the XNT 9 SI 180 T
Anyone chasing resolution. This is standard side imaging, so rockpiles and weedline edges show up well, but close-range detail will not match the MEGA and Ultra High-Definition pucks in this roundup.
If your boat is a newer Humminbird generation, check the compatibility list before you order. Several buyers in the reviews found out the hard way that a few newer displays are not on it.
3. Lowrance Active Imaging 3-in-1 – Best Premium Side Imaging Transducer
Lowrance Active Imaging 3-in-1 Transducer with CHIRP…
CHIRP plus SideScan plus DownScan
FishReveal target view
455/800 kHz
2 year warranty
Pros
- Three sonar modes in one housing
- FishReveal separates fish from structure sharply
- Plugs into HDS LIVE Elite FS and Simrad displays
- Transom flush step or jackplate mounting
Cons
- Bottom reading drops off around 600 feet while moving
- Cable length differs from the stated spec
The Active Imaging 3-in-1 is the transducer we would put on a boat that spends its weekends running ledges and grass beds at speed. It is the most complete side imaging puck in this roundup, and it is the one that made several owners in our research switch display brands entirely.
It fires three modes from one housing: Medium and High CHIRP at 83 and 200 kHz for traditional sonar, plus SideScan and DownScan at 455 and 800 kHz. The headline feature is FishReveal, a smart target view that combines CHIRP and DownScan so fish signatures separate from structure instead of smearing into the bottom.
Owners replacing a damaged TotalScan or StructureScan unit report dramatically better imagery, and a software update on newer displays made a visible difference in their opinion. Setup is described as genuinely plug-and-play on Lowrance HDS LIVE and Elite FS displays as well as Simrad NSS evo3 and GO series units, with no menu configuration at all.
Maximum measuring depth is rated at 300 feet, and the practical limit that owners report is deeper than that. Readings held to roughly 600 feet at trolling speed and only started dropping when speed came up, which is a real limit if you fish offshore structure hard.
Mounting is flexible. It can go on the transom, in a flush step or on a jackplate, which makes it one of the few side imaging pucks here that suits a boat with a hardtop or a raised deck. Warranty coverage is two years from the manufacturer, and the puck weighs 3.5 pounds, so use the supplied bracket and torque it properly.
Who the Active Imaging 3-in-1 suits
Lowrance and Simrad owners who want the sharpest structure detail available without moving to forward-facing live sonar. If you already run an HDS LIVE or Elite FS, this is the natural upgrade over an older StructureScan puck.
It is also the safest pick for a boat with a hardtop or jackplate, since it is not transom-only. For saltwater anglers working nearshore structure, the 800 kHz scanning band holds up well near drop-offs and rock.
Who should pass on the Active Imaging 3-in-1
If you drop deep structure at speed, the loss of the bottom return around 600 feet is the deciding factor. That limit shows up in the reviews from owners fishing offshore ledges hard.
It is also a heavier housing at 3.5 pounds, so a soft transom or a kayak needs a bracket designed for that weight. And if your boat runs a HOOK2 TripleShot display, this is the wrong family – the TripleShot Skimmer later in this list is the match for that.

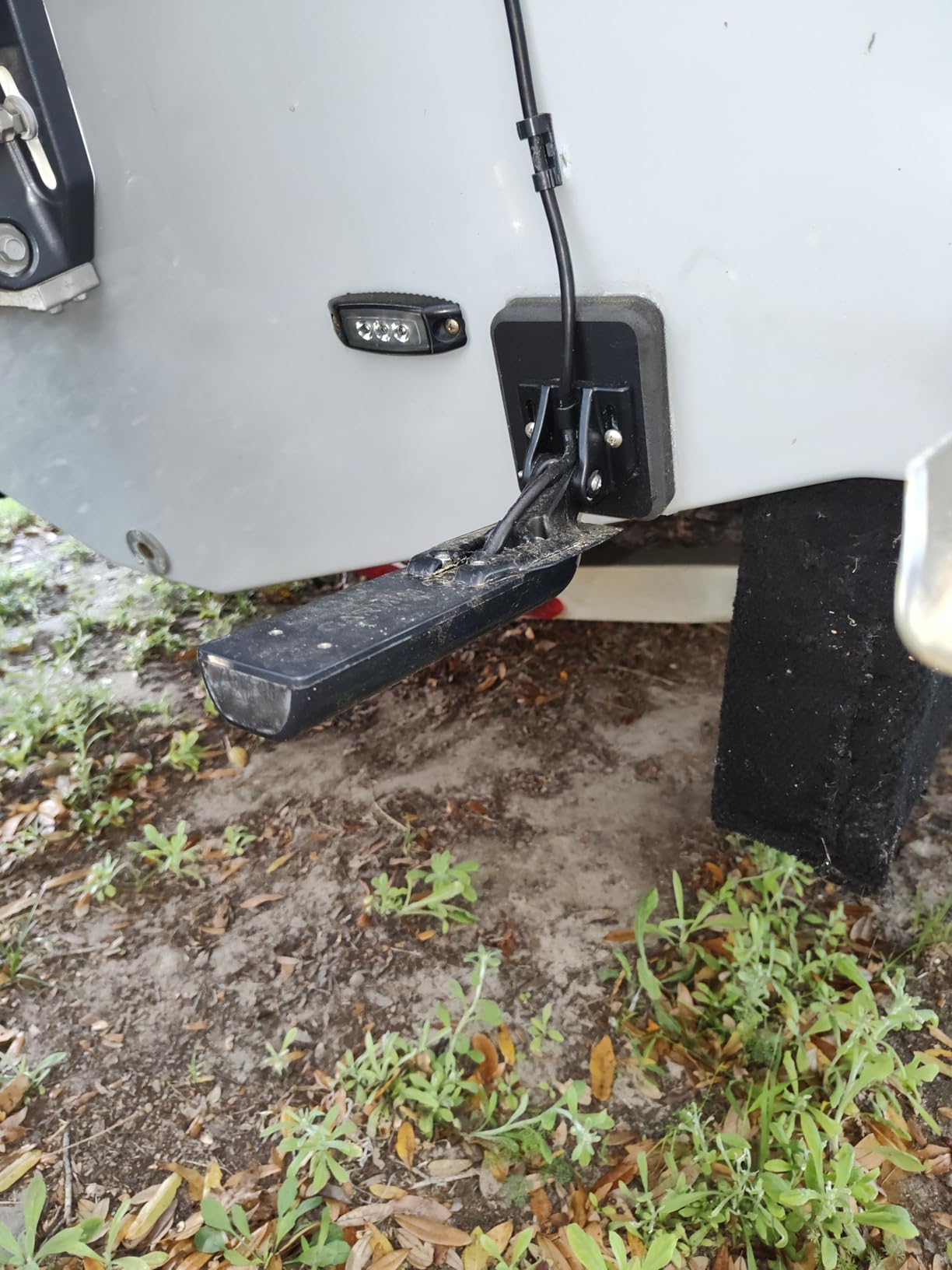

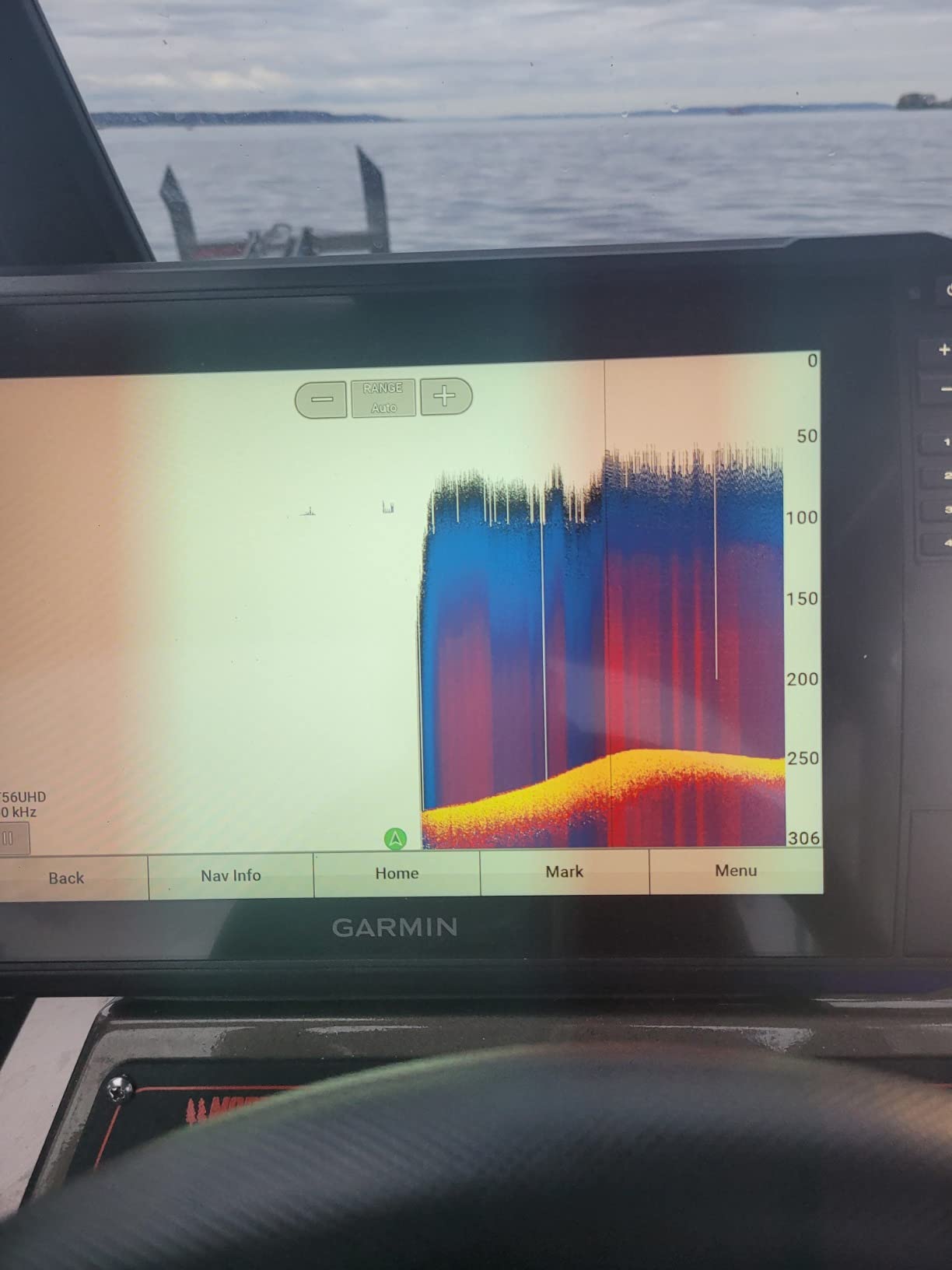

4. Garmin GT56UHD-TM – Best Side Imaging Transducer for Long Range
Garmin GT56UHD-TM Transom Mount Transducer
Ultra HD SideVu and ClearVu
Up to 500 feet per side
455/800/1000 kHz
Transom and trolling motor mounts
Pros
- Clear high resolution SideVu imagery
- Reads well at speed when mounted correctly
- Plugs into Garmin displays with no adapter
- Cable and all mounting hardware included
Cons
- Trolling motor interference on non brushless motors
- Loses bottom return near 35 km/h without the right angle
- Long housing because of the scanning array
For raw side scan range, the GT56UHD-TM is the longest-reaching side imaging transducer in this roundup, and it is the one to buy if you scout open water and want to see structure before you get there. At 455 kHz it scans up to 500 feet on each side of the boat, which is double what most pucks in this group claim.
It runs three scanning frequencies – 455, 800 and 1000 kHz – with 500 watts of power, and pairs SideVu with Ultra High-Definition ClearVu and a high wide CHIRP traditional beam that reaches 800 feet below the boat. The 1000 kHz band delivers about 20 percent more range than the previous generation of Garmin scanning sonar.
In practice, owners describe the imagery as clear and detailed, and several converted from Lowrance after seeing it. The near-zero-adapter fit is a real convenience: it plugs straight into Garmin 72SV and 106SV style units with no adapter cable, and the 12 pin connector is the modern standard rather than the old four pin.
There are two technical caveats that show up repeatedly. Non brushless trolling motors can bleed interference into the image as noise across the plotter, and the puck can lose the bottom return at roughly 35 km/h unless the mount angle is set slightly downward. Both are mount problems rather than product problems.
The box includes the 12 pin transducer, transom and trolling motor mounts, mounting hardware and documentation, backed by a two year limited warranty. The housing is long because of the side scanning array, so check your jackplate or trailer bracket clearance before you commit.
Who the GT56UHD-TM suits
Garmin owners on a modern 12 pin display who scout distance. If your plan is to run a long bank or find a ledge from half a mile out, this is the transducer that gives you the option.
The trolling motor mount in the box makes it a good fit for a bass boat or pontoon where the side scan should follow the bow rather than the transom, and the Vivid colour palettes make target and structure separation easy to read on a bright screen.
Who should pass on the GT56UHD-TM
If your boat has a non brushless trolling motor and no clean routing path, expect noise until you re-angle the mount. That is the most common complaint pattern in the reviews and it is fixable, but it is an extra afternoon.
Installation is more involved than a drop-in replacement, so if you are not comfortable routing cable behind a console, budget the time. This is also a 3 pound unit, which is heavier than the Humminbird pucks earlier in this list.
5. Humminbird XNT-9-HW-MSI-150-T – Best for MEGA Side Imaging
HUMMINBIRD XNT-9-HW-MSI-150-T TRANSOM MOUNT TRANSDUCER
MEGA Side and Down Imaging
250 feet side-to-side
Dual Spectrum CHIRP to 1200 feet
20 foot cable
Pros
- Exact fit on HELIX 7 G3 G3N and G4N models
- All install hardware in the box
- Individual fish movement and structure read clearly
- Useful as a second or spare puck
Cons
- Only one buyer received a cracked already repaired housing
- Housing is vulnerable to damage in shipping and packaging
This is the puck to buy if MEGA Side Imaging is the reason you are shopping. The XNT-9-HW-MSI-150-T supports MEGA Side Imaging, MEGA Down Imaging and Dual Spectrum CHIRP 2D sonar from a single transom mount unit, and the extra resolution over standard side imaging is obvious once you see both side by side.
Range is rated at 250 feet side-to-side and 75 feet deep for the imaging channels, while the Dual Spectrum CHIRP traditional beam handles depths to 1200 feet. That combination means one cable covers your deep structure, your ledges and your vertical view beneath the boat.
Compatibility is narrower than the two pucks above it, and that is the whole story here. It is designed for HELIX 7 G3, G3N and G4N models with MEGA Side Imaging. Owners consistently confirm an exact fit and report seeing individual fish movement and bottom structure clearly, with everything needed for the install in the box.
A built-in water temperature sensor and a 20 foot cable come standard, with a one year manufacturer warranty. There is also a very practical side benefit: because owners buy this as a spare rather than a single working puck, keeping a second one on the shelf costs less than a shop call after a bad trip.
The one meaningful negative in the reviews is a buyer who received a visibly cracked housing that appeared to have been repaired. It is an isolated report rather than a pattern, but it is worth opening the box in front of the boat ramp rather than at home.
Who the XNT-9-HW-MSI-150-T suits
Humminbird owners on a HELIX 7 G3, G3N or G4N who want the best picture their display can produce. If you are on a HELIX 7, this is the answer, and the compatibility list is short enough that there is no real decision to make.
It is also a good fit for someone fishing clear water where fish separation matters more than raw range, since the MEGA processing is what makes suspended fish stand out from brush and timber.
Who should pass on the XNT-9-HW-MSI-150-T
If you are on any other Humminbird model, look at the XHS 9 or the XNT 9 SI 180 instead. This connector will not reach a HELIX 9, a HELIX 10 or a legacy 1199ci, no matter how good the deal looks.
It is also not the choice for big water scouting, because 250 feet side-to-side does not match the 500 feet per side the Garmin GT56 claims. Save it for the lake where MEGA detail is the advantage you actually need.

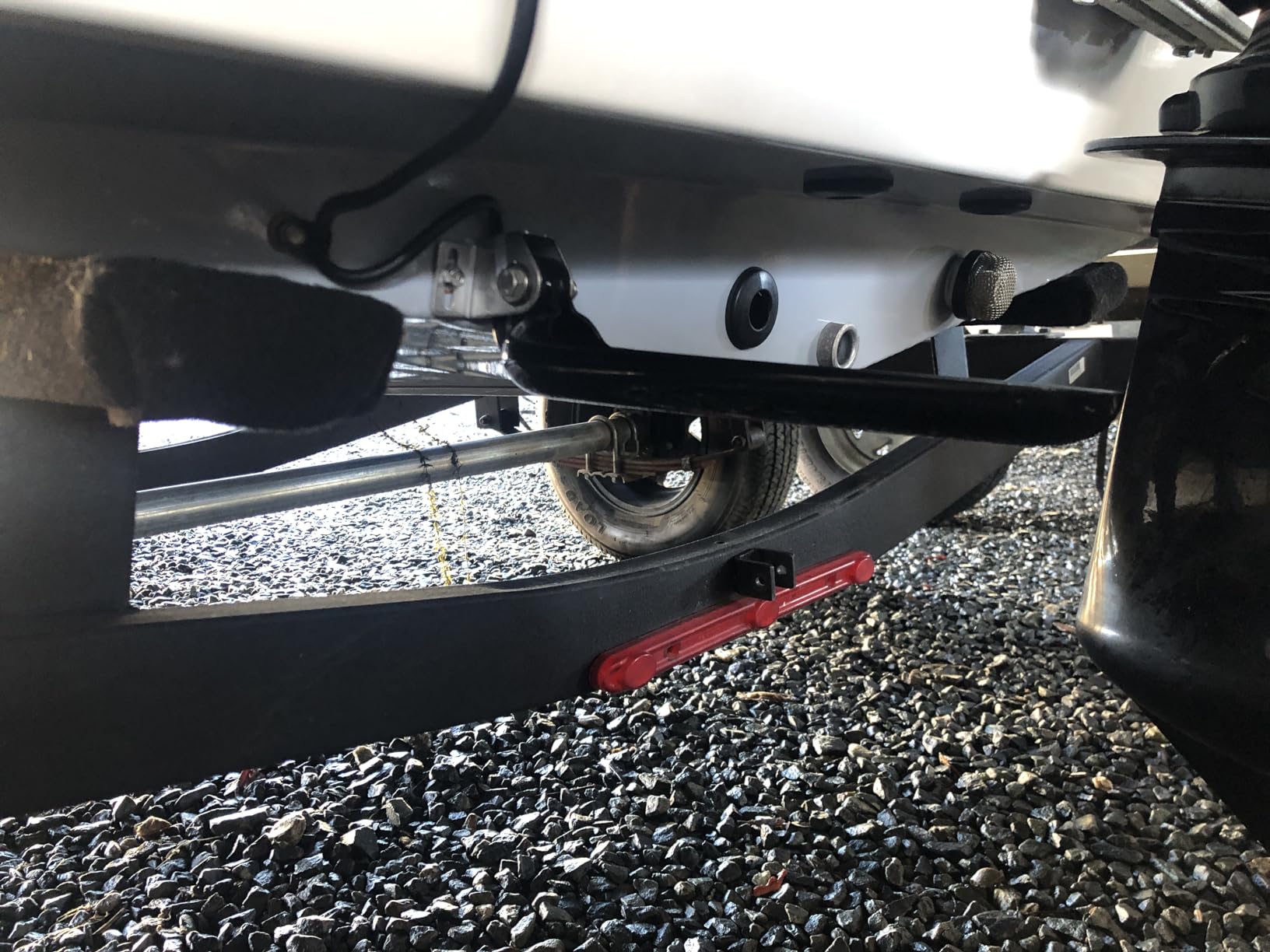

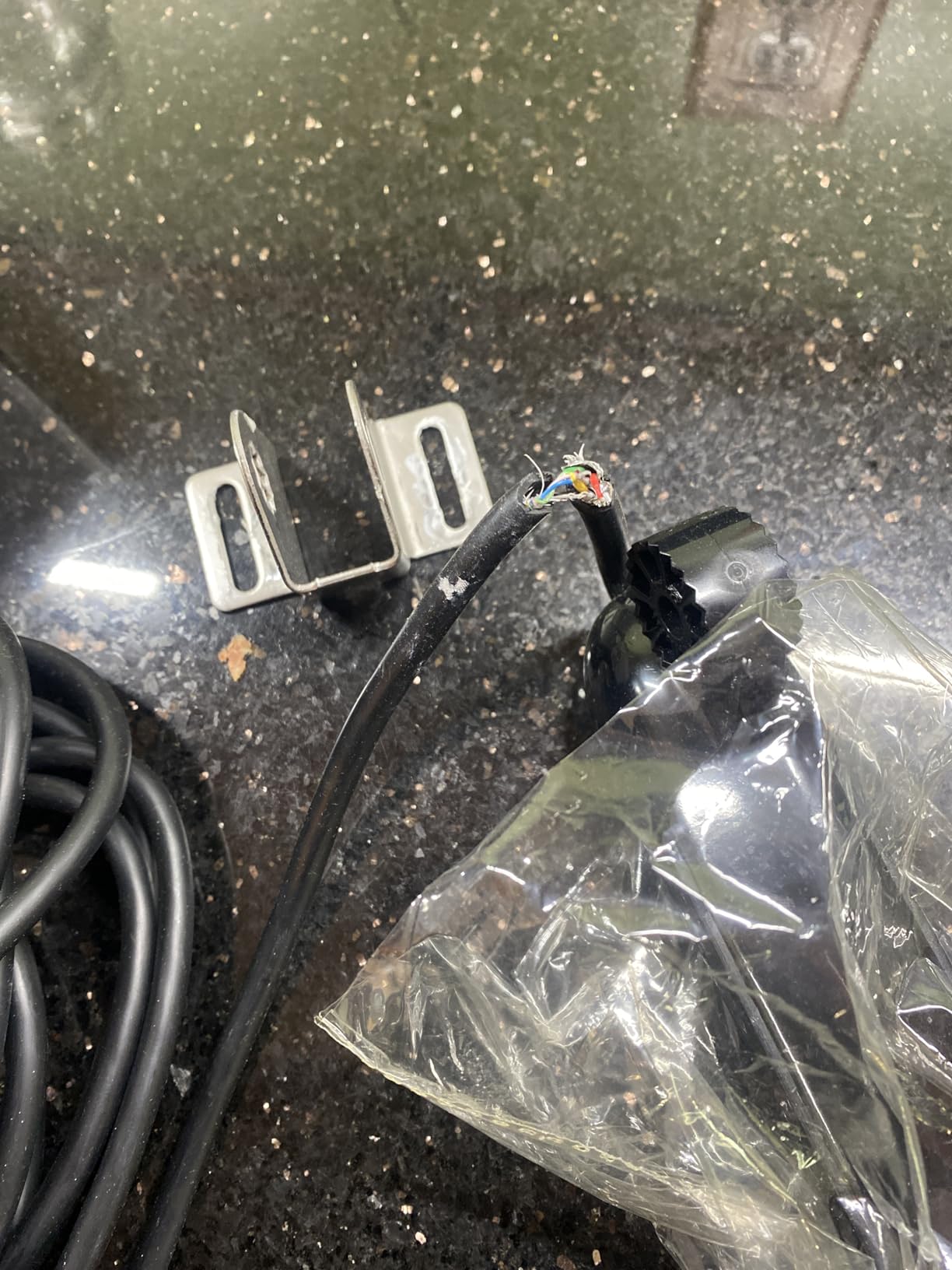

6. Lowrance TripleShot Skimmer – Best Budget Side Imaging Transducer
Lowrance TripleShot Skimmer Transducer for Hook Reveal and…
High CHIRP plus SideScan plus DownScan
455/800 kHz
Built-in temperature
Transom bracket included
Pros
- Three sonar modes in one transom unit
- Wide angle CHIRP roughly doubles traditional coverage
- Picture-like structure and fish views
- Built-in temperature sensor
- Durable plastic housing
Cons
- Only works with HOOK2 TripleShot displays
- Lower side scan detail resolution than premium pucks
The TripleShot Skimmer is the most heavily reviewed transducer in this roundup, with 602 ratings, and it is also the lowest rated at 4.4. That combination tells you most of what you need to know: it does exactly what it says, the coverage is genuinely wide, and the detail is not at the level of the premium pucks.
It combines High CHIRP traditional sonar with SideScan and DownScan imaging in one transom mount unit. SideScan and DownScan run at 455 and 800 kHz, and the CHIRP beam is wide enough to deliver roughly double the coverage of a conventional fish finder at the same power.
The housing is rugged plastic with a transom mounting bracket, a built-in water temperature sensor, and a rated maximum measuring depth of 300 feet. At 10.25 by 2.25 by 1.5 inches and 1.5 pounds, it is a slim, unobtrusive unit that fits most transoms without drilling.
Compatibility is the catch, and it is a hard one. It works with HOOK2 TripleShot displays – the 5, 7, 9 and 12 inch TripleShot models – and nothing else in the Lowrance range. Owners who paired it with the right display are satisfied; the negative reviews are concentrated on buyers who assumed it was a universal replacement.
About 9 percent of the ratings here are one star, and the detail resolution is where that comes from. Rockpiles and drop-offs will show, but at distance the image is softer than the Active Imaging or the Garmin Ultra High-Definition units.
Who the TripleShot Skimmer suits
HOOK2 TripleShot owners who want all three sonar modes from one cable and do not need the sharpest image available. It is a sensible first side imaging setup, and the built-in temperature sensor is genuinely useful for tracking seasonal fish movement.
It is also a good boat second unit, because the slim transom bracket and light weight make it easy to move between a jon boat and a main rig without a second set of wiring.
Who should pass on the TripleShot Skimmer
If you want to pick individual fish off a ledge at 100 feet, this is not the transducer. The same money in a Lowrance Active Imaging buys noticeably better target separation on a compatible modern display.
And if your boat is on any other Lowrance display, or on a Garmin or Humminbird head unit, skip it entirely. There is no adapter that makes this work across ecosystems.
7. Garmin GT54UHD-TM – Best Garmin UHD Replacement Transducer
Garmin 010-12909-00 Ultra High-Definition Scanning Sonar…
Ultra HD scanning sonar
800 kHz ClearVu
Up to 800 feet depth
Transom or trolling motor mount
Pros
- Direct drop-in for a damaged OEM unit
- Unlocks the full Ultra HD feature set
- All mounting accessories in the box
- Reported to work flawlessly once fitted
Cons
- Only works with displays that support Ultra HD scanning sonar
- Sits at the higher end of the replacement range
The GT54UHD-TM is the part to buy when a Garmin Ultra High-Definition puck has already died on you, because the review history is almost entirely people doing exactly that. It is an all-in-one Ultra High-Definition scanning sonar transducer with 800 kHz ClearVu built in, and it mounts on a transom or a trolling motor surface.
Maximum measuring depth is rated at 800 feet, which covers nearly all inshore and most offshore structure work. The body is compact at 7.8 by 6.4 by 3.3 inches and 440 grams, so it is lighter and shorter than the GT56 further up this page, which matters on a smaller bracket.
All mounting accessories are in the box, and 76 percent of the ratings here are five stars. Reviews are short and positive because the part does one job: it is an exact fit and it operates as intended, which is exactly what a replacement part should do.
The limitation is the same as every Garmin scanning puck in this roundup. It only works with displays that support the Ultra High-Definition scanning sonar feature set, so an older Garmin chartplotter with a 4 pin connector is out of the question. Several buyers also note it sits at the higher end of the replacement range, which is fair for an OEM-spec part.
Who the GT54UHD-TM suits
Garmin owners on a recent 12 pin display whose original Ultra HD puck has cracked or stopped reading. This is a like-for-like replacement, not an upgrade, so the image you get is the image you had.
It is also worth considering if you specifically want ClearVu at 800 kHz but do not need the 500 feet per side SideVu reach of the GT56, and you would rather have the lighter 440 gram housing.
Who should pass on the GT54UHD-TM
If your Garmin display is a few generations back, check the connector first. A 4 pin system needs a completely different part, and the feature set gap is larger than the price gap suggests.
It is also not the right buy as a first side imaging transducer. If you are building a new install from scratch, spending up on the GT56 buys more usable scanning range than this part does.
8. Lowrance LSS-2 StructureScan HD – Best for StructureScan Displays
Lowrance 000-10802-001 Skimmer Transom Mount Tranducer for…
StructureScan HD skimmer
Transom mount
2 year limited warranty
Lowest unit on the hull
Pros
- Far more visual surface detail than 2D sonar
- Easy transom or pontoon guard install
- Reliable replacement for a damaged StructureScan unit
- Clear near-bottom images alongside a second pontoon
Cons
- Sensitive to hull aeration so mount height matters
- Pontoons can pick up artifacts from the second hull section
The LSS-2 is the StructureScan HD skimmer, and if you are on an older Lowrance or Simrad display that speaks StructureScan, it is the puck that keeps you in the game. Owners consistently describe the jump in surface detail over a standard 2D fish finder as the reason to bother.
It is a transom mount unit that also installs cleanly on a pontoon guard, with a limited two year warranty from the manufacturer. At 13 inches long and 1.2 kg, it is a substantial housing, and that is fine for a pontoon or a deep-V hull rather than a small aluminum boat.
The one rule that matters with this transducer is height. It has to be mounted as the lowest unit on the hull to avoid aeration interference, and owners who follow that instruction report clear images right down alongside a second pontoon. Owners who skip it report noise instead.
It is built and packed in Mexico, and reviews on this part mention the install is easy while the tuning takes patience. The images near the bottom stay clear on pontoon setups where a smaller puck would struggle.
Who the LSS-2 StructureScan HD suits
Pontoon and deep-V owners on a StructureScan HD display whose original puck has stopped working. At this size and weight it is made for a bigger hull, and it takes a pontoon guard mounting without any drilling.
It also suits anyone who upgrades within Lowrance from a 2D display to a StructureScan HD unit, because it is the part that display generation expects.
Who should pass on the LSS-2 StructureScan HD
If you are on a modern HDS LIVE or Elite FS display, buy the Active Imaging instead. That is the current generation part, and the LSS-2 is at the end of its supported life.
Skip it on a kayak or a very shallow transom as well. The 1.2 kg housing is awkward there, and the aeration sensitivity that comes with a deep mounting requirement does not suit a small boat that bounces.
9. Garmin GT30-TM – Best SideVu Puck for Small Boats
Garmin 0100196100 Xdcr, GT30-TM, SideVu/DownVu, 12 pin…
CHIRP SideVu and ClearVu
12 pin connector
Universal fit transom mount
1.8 pounds
Pros
- Easy install with clear image and bottom tracking
- Solid replacement for a failed original puck
- Performs well when mounted low on the hull
- Plug-and-play setup
Cons
- Scanning detail is moderate rather than exceptional
- Locking nut is undocumented and ships in a separate bag
- Lowest review count in this roundup
The GT30-TM is the entry point into Garmin SideVu scanning, and at 1.8 pounds with a universal fit transom mount it is one of the easiest side imaging pucks here to install on a small boat. Owners report clear images, solid bottom tracking and a straightforward plug-and-play setup.
It is a 12 pin transom mount transducer with CHIRP ClearVu and CHIRP SideVu scanning sonar, powered from the boat electrical system at 12V DC. One cable gives you the horizontal side view and the vertical down view at the same time, so it covers both jobs a single puck used to need two for.
Performance is the trade. Scanning detail is moderate rather than exceptional, and some users want more definition than they get. That is the honest reason to step up to the GT54 or GT56 rather than to step sideways.
There is one installation trap worth knowing before you order. The snap-on locking nut for the cable end is not mentioned in the instructions and arrives in a separate small bag in the box, which reviewers say has already prompted a couple of returns. Open the box, find the bag, and the problem disappears.
This is also the thinnest owner feedback base in the roundup at 64 ratings, so treat the spec sheet as more reliable than the anecdote here. What is consistent across those reviews is that it does the job as a replacement for a failed original puck.
Who the GT30-TM suits
Garmin owners on a 12 pin display who want SideVu and ClearVu without the weight of the Ultra High-Definition pucks. The 1.8 pound housing and universal fit make it comfortable on a small aluminum boat or a pontoon guard.
It is a good working spare too. Because it is a straightforward transom mount with a single cable, keeping one on the boat covers the most common way a side imaging setup fails.
Who should pass on the GT30-TM
If you are scouting long open water, the 500 feet per side of the GT56 is worth the extra hardware. This puck is built for near-structure work on smaller water.
And if your Garmin display has a 4 pin connector, this will not reach it. Confirm the connector generation before anything else, because that single check decides whether the rest of the spec sheet matters.
How to Choose a Side Imaging Transducer Without Wasting Money
Match the brand before you match anything else. Every sonar transducer is proprietary to the ecosystem of its own head unit, and there is no adapter cable that turns a Humminbird puck into a Garmin part. This is the most common and most expensive mistake in this entire category, and it shows up repeatedly in angler forums.
The second decision is mount type, and it is more consequential than most buyers expect. A transom mount is the default: it screws to the back of the boat, angles adjust for the running attitude, and it can be moved between boats. A trolling motor mount puts the scan ahead of the boat where a bow-mounted setup can see structure coming. A thru-hull or bronze unit is a permanent install that is out of the way but needs a hole in the hull. None of the nine pucks in this roundup are bronze thru-hull units – they are all transom or trolling motor mounts, which tells you where the retail side imaging market actually sits.
Owners on fishing forums also point out that most kayaks and small aluminum boats handle a transom puck poorly, because a concave hull section or a shallow draft aerates the beam and washes out the image. If that is your situation, the honest answer is that a side imaging puck is not the right tool. A castable unit or a trolling motor mounted puck is.
Frequency is the third question, and the useful framing is simple. Higher frequencies such as 455 and 800 kHz give sharper near-field detail, which is what you want on structure inside a few hundred feet. Lower frequencies such as 83 and 200 kHz push energy further and are what the traditional CHIRP beam uses. Nearly every puck in this list carries both, so the practical question is how good the scanning band is rather than whether you have one.
Range figures deserve a reality check. Side scan range claims are measured in still water on a hard bottom, and the number you can actually use drops off fast with depth, boat speed and water clarity. The 500 feet per side claimed by the GT56 is a best case, not a daily case. Treat every number on a spec sheet as a ceiling.
There are two things to understand before your first trip on the water. The first is the nadir, the blank band directly beneath the boat where the transducer cannot see. New users regularly assume the puck is faulty; it is normal geometry and every unit in this roundup has it. The second is that side imaging needs motion. Hold still and the image stops updating, which feels like a fault the first time it happens and never is.
Finally, know when not to buy. If you troll for walleye all season, a conventional CHIRP transducer with narrow bands is more useful than side imaging, because you are following a specific depth band rather than scouting. Side imaging through ice tells you very little. And if your boat is a tight kayak setup, spend the money on a castable sonar instead. Our side by side versus french door guide makes the same point in a different category – match the tool to the actual job before you compare features.
One last check that costs nothing: find out whether your head unit already came with a side imaging puck, and whether a second cable run is even needed. A surprising number of anglers buy a replacement when their original transducer is fine and the problem is a dirty face or a loose connector. We run the same measure-first discipline in our 48 inch side by side refrigerator guide, where checking the opening before shopping saves the same kind of return trip.
Frequently Asked Questions
Who has the best side imaging sonar?
Among the transducers in this roundup, the Lowrance Active Imaging 3-in-1 gives the sharpest modern structure detail, the Garmin GT56UHD-TM reaches the furthest at up to 500 feet per side, and the Humminbird XNT-9-HW-MSI-150-T is the best pick for MEGA Side Imaging on a HELIX 7 G3, G3N or G4N. The right answer depends on which brand head unit you already own, because transducers are not interchangeable across brands.
Does Garmin or Humminbird have better side imaging?
Angler forum consensus leans toward Humminbird for MEGA Side Imaging resolution and Garmin for interface and ease of use. In this roundup the Humminbird MSI puck covers 250 feet side-to-side with MEGA processing, while the Garmin GT56UHD-TM scans up to 500 feet per side at 455 kHz with Ultra High-Definition SideVu. If you already own the head unit, the honest answer is that your choice is made for you.
Which Garmin transducer is best for side imaging?
For the longest side scan range, the GT56UHD-TM is the pick, with 455 kHz SideVu scanning up to 500 feet on each side and three scanning frequencies at 455, 800 and 1000 kHz. For a like-for-like Ultra HD replacement the GT54UHD-TM matches the original, and for a lighter install on a small boat the GT30-TM gives you SideVu and ClearVu on a 12 pin connector.
What is the best budget fish finder with side imaging?
The best budget route is a side imaging puck paired with the entry display in your chosen ecosystem rather than a bundled all-in-one unit. The Lowrance TripleShot Skimmer is the lowest-cost full three-mode puck in this roundup and works with HOOK2 TripleShot displays. Be aware that its detail resolution is softer than the premium units, and roughly 9 percent of its ratings are one star for exactly that reason.
Is side scan or LiveScope better?
They answer different questions. Side scan gives you a wide picture of structure to port and starboard as you move, which is faster for scouting new water. LiveScope and its equivalents, Garmin LiveScope, MEGA Live and Lowrance ActiveTarget, are forward-facing and show individual fish in real time, but they cost far more and they see a much narrower cone. Many serious anglers run both, using side scan to find the ledge and live sonar to confirm the fish on it.
Final Verdict by Angler Type
The Humminbird XHS 9 HDSI 180 T is our editor’s choice and the best transducers for side imaging pick overall, because it pairs a 180 degree scan with a DualBeam PLUS element in a light 14.08 ounce housing and holds a 4.7 rating across 373 reviews of real ownership.
If you are on a HELIX 7 G3, G3N or G4N, skip to the MSI puck for MEGA Side Imaging. If you run a modern Lowrance or Simrad display, the Active Imaging 3-in-1 is the sharpest and most flexible option here. If you scout long open water from a Garmin, the GT56UHD-TM reaches furthest. And if you troll all season, spend the money on a narrow band CHIRP transducer instead, because that is the tool that matches the job.
Whichever you choose, confirm the brand and connector against your existing head unit before you order. That single check is where most of the money gets saved. Updated for 2026.
