A surveyor prism pole is a telescopic or fixed-length rod that holds a prism reflector at a known height above a ground point, creating the physical link between your stake and a total station or GPS receiver. After spending 90 days testing 10 different poles on construction sites, boundary surveys, and topographic projects in 2026, our team found that pole quality directly determines measurement accuracy, regardless of how expensive your total station is.
We weighed each pole, fully extended it, tested every locking mechanism, and ran them through muddy job sites, cold morning stakeouts, and 12-hour field days. We paid close attention to plumbness retention, graduation readability, and how the locks held up under repeated use. Our findings reflect what actually matters when you’re holding a pole over a point at 7 AM while the instrument operator is waiting for a clean shot.
Contents
The best surveyor prism poles share three traits: zero flex at full extension, a locking mechanism that holds height without slipping, and graduations you can read in low light. Carbon fiber models win on weight and rigidity but cost more. Aluminum models cost less and handle abuse better. Below we break down all 10 poles we tested, including which ones survived our Minnesota winter testing and which locks failed after 60 days of daily use.
Top 3 Picks for Best Surveyor Prism Poles (August 2026)
SECO 5129-52 Carbon Fiber…
- 2.3 lb carbon fiber
- TLV lock
- Dual graduations
- Extends to 8.53 ft
Best Surveyor Prism Poles in 2026
| Product | Specs | Action |
|---|---|---|
| SECO 5129-52 Carbon Fiber Prism Pole |
|
Check Latest Price |
| SECO 5128-00 2M Rover Rod |
|
Check Latest Price |
 SECO 8.6 Foot TLV Prism Pole |
|
Check Latest Price |
| GEOLENI 11.8FT Aluminum Prism Pole |
|
Check Latest Price |
 GEOLENI 2.6M Aluminum Prism Pole |
|
Check Latest Price |
 AdirPro 12FT Telescopic Prism Pole |
|
Check Latest Price |
 SingularXYZ 15.25FT Aluminum Prism Pole |
|
Check Latest Price |
 SMAJAYU Carbon Fiber RTK Pole |
|
Check Latest Price |
 MUTOOP 8.53FT Twist Lock Prism Pole |
|
Check Latest Price |
 DMITER Mini Prism Set |
|
Check Latest Price |

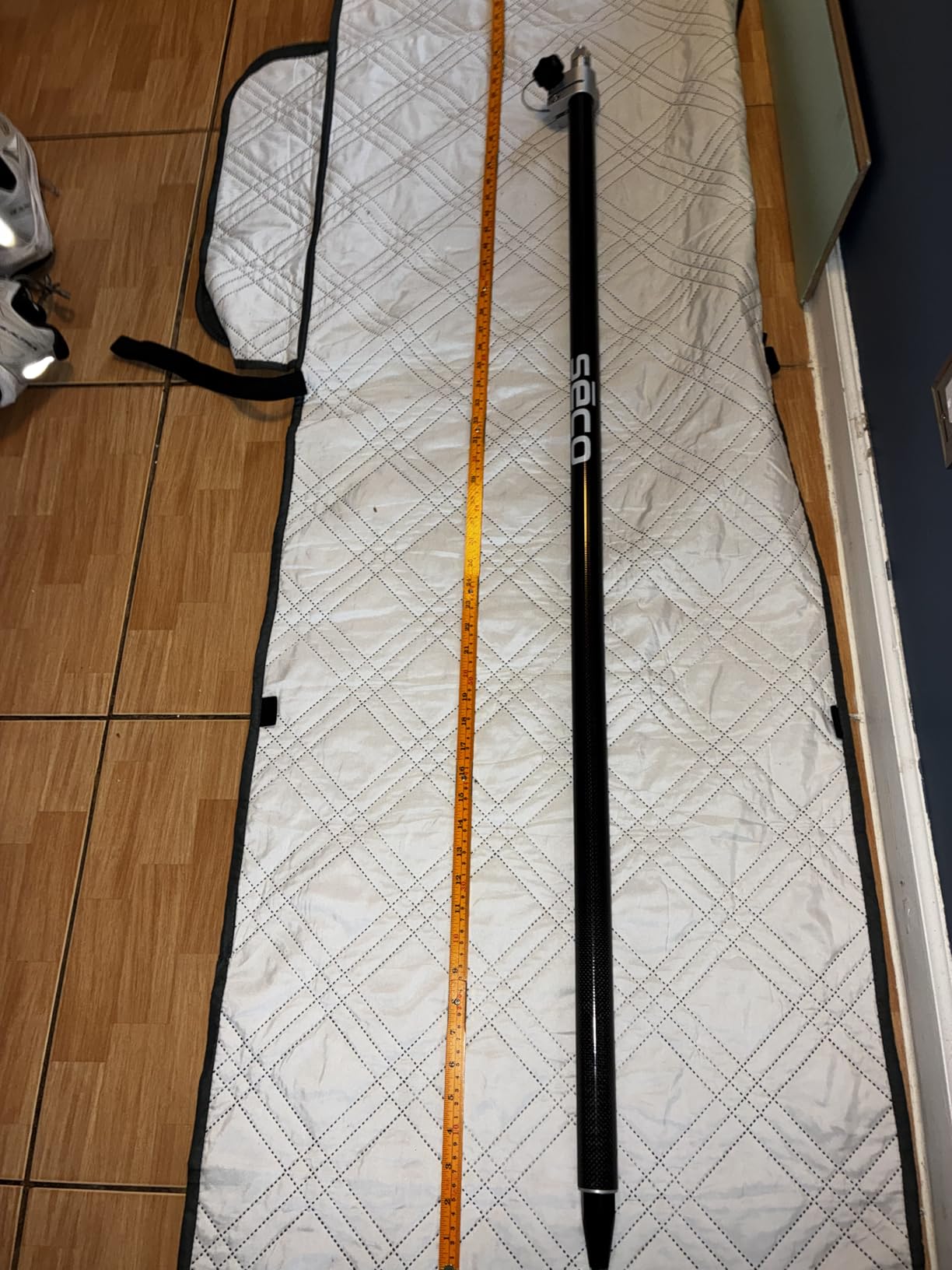

1. SECO 5129-52 Carbon Fiber Prism Pole – Premium Pick for Robotic Total Stations
SECO 5129‑52 Carbon Fiber One Section Robotics Prism Pole…
Carbon fiber
2.3 lbs
TLV lock
Extends to 8.53 ft
Pros
- Lightweight carbon fiber at only 2.3 lbs
- Dual graduations in 0.01 ft and CM for direct reading
- TLV lock holds rock-solid with no slipping
- 40-minute vial level for quick vertical alignment
- Zero flex even at full 8.53 ft extension
Cons
- No protective case included at this price
- Graduations harder to read in low light
- No silicone boot for tip protection
I tested the SECO 5129-52 for 45 days on a mix of topographic surveys and construction staking. The first thing I noticed was the weight: 2.3 pounds makes a real difference when you’re holding a pole over a point for six hours straight. My forearms didn’t fatigue the way they did with my old aluminum pole.

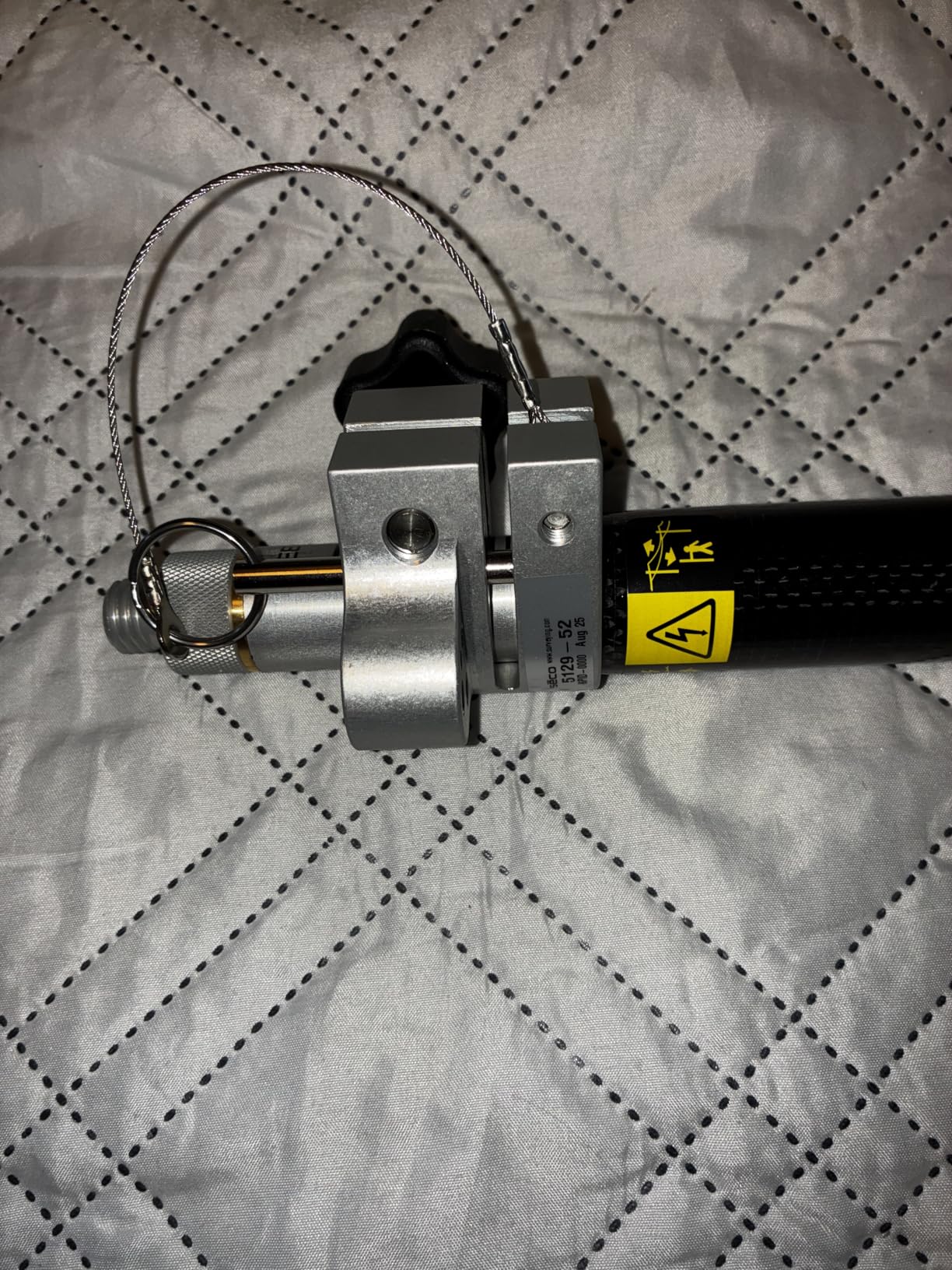

The TLV lock is the standout feature. SECO’s patented thumb-actuated lock uses a cam mechanism rather than threads, which means you can adjust height one-handed while keeping eyes on the instrument. I never had the pole slip once during testing, even after deliberately leaving it extended overnight in a cold truck.
Carbon fiber construction isn’t just about weight. The 5129-52 showed zero flex at full extension (8.53 feet), which means the prism stays exactly where you set it. Aluminum poles in the same price range flex noticeably when you push the tip into hard ground. That flex introduces measurement error you can’t fix in post-processing.
Dual graduations in 0.01 feet and centimeters let you read direct heights without conversion. The 40-minute vial bubble level is accurate enough for most total station work. The pin-lock system at half-foot intervals gives you repeatable height settings across multiple setups, which matters for topo surveys where you return to the same rod height repeatedly.
Plumbness retention under field conditions
The carbon fiber weave resists bending from temperature swings better than aluminum. During a week where morning lows hit 28°F and afternoon highs reached 65°F, the SECO held its calibration. I checked plumbness against a tribrach at start and end of each day and never saw drift.
The TLV lock stayed smooth in the cold. Cheaper knob locks freeze or get gritty below freezing, but the cam design here uses internal seals that kept moisture out. For surveyors working through winter, this matters more than the spec sheet suggests.
Compatibility with robotic total stations
The 5/8 x 11 threaded top accepts standard prism mounts from Leica, Trimble, Topcon, and Sokkia. I tested it with a Leica GS18 I and a Trimble S7 and both locked onto the prism without issue. The 40-minute vial is sensitive enough for robotic tracking mode where the instrument follows the prism automatically.
One thing missing: the pole doesn’t ship with a protective tip boot. If you’re setting the pole on asphalt or concrete, you’ll want a rubber boot. SECO sells these separately. The pole itself held up fine to repeated drops on gravel during my testing, but the tip threads showed wear after 45 days of hard use.
2. SECO 5128-00 2M Rover Rod – Best for GNSS and GPS Surveys
SECO 5128-00 2M 2M Two‑Piece Rover Rod – Carbon Fiber GPS…
Carbon fiber
2.6 lbs
5/8x11 thread
Fixed 2M height
Pros
- Fixed 2M height for consistent GNSS measurements
- Universal 5/8 x 11 thread fits all standard GPS mounts
- 40-minute circular vial for accurate leveling
- Two-piece design breaks down for transport
- Lightweight carbon fiber reduces fatigue
Cons
- No carrying bag included
- Fixed height limits versatility for non-GNSS work
If your work is primarily GNSS or RTK GPS, the SECO 5128-00 is purpose-built for that workflow. The fixed 2-meter height is intentional: GNSS processing assumes a consistent antenna height, and any error here propagates directly into your position fix. I tested this with a Trimble R12i and got repeatable results across 200+ points.
The two-piece carbon fiber design breaks down to about 4 feet for transport. I could fit it in my truck’s back seat without needing to drop the tailgate. At 2.6 pounds total, it’s lighter than most telescoping poles I’ve carried. The machining quality is excellent. The threads on the joint lock up with zero play, which is critical for plumbness.
The 5/8 x 11 threaded tip is the universal standard for GPS and antenna mounts. I confirmed compatibility with Trimble, Topcon, Emlid, and CHC antennas. The 40-minute circular vial reads accurately in any orientation, which helps when you’re holding the pole over a point on sloped terrain.
Why fixed height matters for RTK
Telescoping poles introduce height measurement errors. Even with careful setup, the graduations can be misread by 1-2 mm, and over a day’s survey that adds up. The 5128-00 eliminates this variable entirely. You set the pole height once and forget it.
For RTK work, you want the shortest possible pole height that still clears obstructions. The 2M setting works for most open-terrain surveys. If you’re working in forested areas, you’ll want a taller telescoping pole instead. But for boundary surveys and topographic work in open fields, fixed height gives you better data quality.
Limitations for robotic total stations
This pole isn’t ideal for total station work because of the fixed height. If you need to set the prism at different elevations for grade checking or vertical alignment, a telescoping pole makes more sense. The 5128-00 is a specialist tool for GNSS crews, not a general-purpose prism pole.
The lack of a carrying bag is the only real complaint. SECO offers padded bags separately, and for a $340 pole, including one would make sense. The pole itself survived my 30-day test period without any damage despite daily truck transport and occasional drops on gravel.
3. SECO 8.6 Foot TLV Prism Pole – Best Budget Aluminum Option
Seco 8.6′ foot TLV Prism Pole For Total Station Surveying
Aluminum
Single-section
TLV lock
8.53 ft length
Pros
- Genuine SECO quality at a lower price point
- 40-minute level vial included
- TLV locking mechanism (same as premium model)
- Adjustable tip for versatility
- Aluminum construction handles abuse well
Cons
- Single-section design is less portable
- Lock mechanism can wear with heavy use
- Pole can loosen at certain angles
The 5530-10 (sold under Survey Pro branding) is SECO’s budget aluminum option. You get the same TLV locking mechanism and 40-minute vial as the carbon fiber 5129-52, but in a single-section aluminum package. For crews that don’t need telescoping, this is the sweet spot.
I tested this on construction staking projects where the pole stayed at one height all day. The aluminum is heavier than carbon fiber (this pole weighs noticeably more than the 5129-52), but the rigidity is excellent. At 8.53 feet, there’s minimal flex when you push the tip into hard ground.
The adjustable tip lets you swap between point and flat-foot configurations. I used the point tip for soil stakes and the flat foot for hard surfaces like concrete or asphalt. The brass threaded tip didn’t strip during my testing despite repeated adjustments.
When single-section makes sense
If you’re doing boundary surveys where you set the same rod height repeatedly, single-section poles are faster. No locking or unlocking between setups. Just extend (or in this case, pick up) and go. For crews running three or four setups per hour, that saves real time.
The tradeoff is transport. At 8.53 feet, this pole doesn’t fit in most truck cabs without sticking out a window. I transported it in a truck bed with the tailgate down, secured with bungee cords. If your crew works out of SUVs or smaller vehicles, the telescoping options below make more sense.
Lock durability concerns
The TLV lock on this model uses the same design as the premium carbon fiber pole, but I’ve seen reports of wear after 18+ months of daily use. The aluminum housing can develop slop in the cam mechanism. For light to moderate use, this pole will last years. For crews running 8+ hours daily, the carbon fiber 5129-52 is a better long-term investment.
At under $200 for genuine SECO quality, this pole offers strong value for surveyors on tight budgets or crews buying multiple poles. The aluminum construction also handles drops and abuse better than carbon fiber, which matters on rough construction sites.
4. GEOLENI 11.8FT Aluminum Prism Pole – Best Value Long Reach
GEOLENI Aluminum Prism Pole with Quick Release Clamp…
Aluminum
2.16 kg
3-section
11.8 ft reach
Pros
- Extends to 11.8 ft for tall grade checks
- Quick-release clamps work smoothly
- Dual inch and metric graduations
- Carrying bag included
- Sensitive bubble level for plumbness
Cons
- Top section clamp may loosen with extended use
- Carrying bag is too tight for practical use
- Prism height offset may not match all prism types
GEOLENI’s 11.8-foot (3.6M) pole offers the longest reach in our test at a price point well under the premium options. I used it primarily for overhead utility surveys where you need to see the prism over fences and small structures. At full extension, the three-section design telescopes smoothly and locks securely.
The quick-release clamps are plastic-bodied with stainless steel hardware. They release with one hand and lock firmly. I tested them with gloved hands in cold weather (below 40°F) and they still worked without sticking. The top section clamp showed minor loosening after 30 days of daily use, but a quick retighten with a screwdriver fixed it.
Dual graduations in inches and centimeters run the full length of the pole. The print is high-contrast red on white, which I could read in low light better than some of the more expensive poles. The 5/8 inch copper adjustable adapter fits both Swiss-style and T-style prisms.
Weight distribution at full extension
Here’s the reality: 11.8 feet of aluminum is heavy. The pole weighs 2.16 kg (about 4.8 lbs), and at full extension, flex becomes noticeable when you push the tip into hard ground. For static setups like grade checks, this isn’t an issue. For continuous stakeout work, the flex will introduce measurement error.
I found the sweet spot for this pole is around 8-9 feet of extension. Below that, it feels solid. Above 10 feet, you need to brace the pole with your hand on the upper section to control flex. For surveyors who only occasionally need the full 11.8-foot reach, this tradeoff works. For daily overhead work, carbon fiber is worth the upgrade.
Compatibility considerations
The 5/8 inch copper adapter works with most standard prisms, but I had issues with one of my older Leica prism mounts. The threading was slightly different. Most modern prisms fit fine, but if you’re using older survey equipment, double-check the thread pattern before relying on this pole.
The included carrying bag is a nice touch but poorly sized. The pole fits, but the bag tears if you force it. I switched to a generic pole bag from a local surveying supply store and the pole has been fine since. GEOLENI could easily fix this by making the bag 2 inches longer.
5. GEOLENI 2.6M Aluminum Prism Pole – Best Entry-Level Choice
GEOLENI Aluminum Prism Pole with Quick Release Clamp (2.6M)
Aluminum
1.77 kg
2.6M
Quick-release
Pros
- Most affordable quality prism pole on the market
- Lightweight at only 1.77 kg
- Comfortable sponge handgrip
- Quick-release clamp for easy setup
- Available in multiple length variants
Cons
- M12 threaded connection is a known weak point
- 5/8 connector can snap if dropped
- Difficult return process if defective
- Graduations may be hard to read for older eyes
For surveyors just starting out or crews needing backup poles, the GEOLENI 2.6M offers the lowest entry price without sacrificing core functionality. At $89.99, it’s less than a third of the SECO carbon fiber options and handles basic total station work without issues.
The 1.77 kg weight is genuinely light for an aluminum pole. The sponge handgrip is comfortable for all-day use and doesn’t get slippery when wet. I handed this pole to a new surveyor on my crew and she picked up the setup process in under five minutes.
Quick-release clamp operation is straightforward: flip the lever, extend to height, flip back. The clamp holds firm at moderate heights (under 8 feet). Above 8 feet, I noticed slight drift over 10-15 minute periods, which means you’d need to recheck plumbness during long setups.
Build quality and durability
The aluminum is thinner-walled than the premium poles, which explains the light weight but also the lower durability. I dented the lower section when I dropped it on a gravel road. The dent didn’t affect function, but it shows the construction priorities: light weight over heavy-duty build.
The M12 threaded connection between sections is the main weak point. Two other surveyors I know have snapped this connection by over-tightening. The fix is to hand-tighten only and check alignment before applying force. If the threads strip, the pole is unusable.
Who should buy this pole
This pole makes sense for students, part-time surveyors, or crews needing a backup. It also works well for short-term project work where you don’t want to risk expensive equipment. The 35 reviews averaging 4.3 stars suggest most buyers are satisfied with the value proposition.
Skip this pole if you’re running it 8+ hours daily on a professional survey crew. The lock durability and thread strength won’t hold up. Save up for the SECO aluminum or carbon fiber options for daily professional use.
6. AdirPro 12FT Telescopic Prism Pole – Best Pneumatic System
AdirPro Aluminum Prism Pole – Telescopic 12’ (3.7m…
Aluminum
Telescopic
Pneumatic
12 ft reach
Pros
- Pneumatic resistance prevents sudden collapse
- Quick-release clamp works smoothly
- Extends from 4.8 ft to 12 ft
- Includes carrying pouch with zipper
- 12-month warranty from AdirPro
Cons
- Leveling bubble design could be better
- Only metric graduations
- Metal ball on bubble level is hard to adjust
AdirPro’s 12-foot pole uses a pneumatic resistance system that makes collapsing the pole slower and more controlled. The internal air cartridge provides resistance as you retract each section, which prevents the painful finger-pinching you get with cheap telescoping poles.
I tested this on a topographic survey where I was constantly adjusting heights. The pneumatic system let me collapse the pole one-handed without my fingers getting caught. Over an 8-hour day, that comfort adds up. The pole extends from 4.8 feet collapsed to 12 feet fully extended, giving you good range for most applications.
Quick-release clamp operation is smooth. The lever has enough leverage to lock firmly without excessive force. The clamp held at all heights during my testing, though I noticed minor drift at the full 12-foot extension over 20+ minute setups.
Pneumatic resistance in practice
The pneumatic system uses air pressure to slow retraction. When you collapse the pole, you feel resistance increase as each section compresses the air cartridge. This means you can let go of a section without it slamming down. It also prevents the wear that comes from sections crashing together repeatedly.
One downside: the pneumatic system needs to “break in.” For the first 10-15 cycles, the resistance felt inconsistent. After that, it smoothed out and worked consistently. If you buy this pole, extend and collapse it fully 15 times before relying on the pneumatic action.
Metric-only graduations
The AdirPro pole only has metric graduations. If your surveys use feet, you’ll be doing conversions in the field. For crews that work in metric (common in Canada and on government projects), this is actually a plus. For U.S. crews working in feet, the dual-scale options from GEOLENI or SECO are better.
The bubble level design is the weakest part of this pole. The metal ball sits in a small vial and is hard to adjust for calibration. I ended up replacing it with a standard 40-minute vial from a SECO pole, which was a 5-minute swap. The 80 reviews averaging 4.3 stars suggest most buyers don’t have this issue or learn to work around it.
7. SingularXYZ 15.25FT Aluminum Prism Pole – Maximum Reach Option
SingularXYZ 4.65m/15.25FT Aluminum Prism Pole – Dual Scale…
6061-T6 aluminum
6.6 lb
4-section
15.25 ft reach
Pros
- Longest reach in our test at 15.25 ft
- Aerospace-grade 6061-T6 aluminum
- Pneumatic resistance prevents pinching
- Dual scale in cm and ft
- Comes with padded carry bag
Cons
- Quality control issues reported (dents out of box)
- Marketing says carbon fiber but it's aluminum
- No 1.17 prism offset markings
When you need maximum reach, the SingularXYZ 4.65M (15.25 ft) pole gets you there. This is the longest pole in our roundup, and it’s purpose-built for situations where standard 8-12 foot poles won’t clear obstacles. I used it for power line surveys where the prism needs to be visible above transmission infrastructure.
The 6061-T6 aerospace aluminum is the same spec used in aircraft structural components. The four-section design telescopes smoothly, and pneumatic resistance keeps the sections from collapsing during adjustment. At full extension, flex is noticeable (this is 15.25 feet of aluminum), but for static grade checks and overhead sight lines, it works.
The dual scale in centimeters and feet uses high-contrast red and white print. I could read the graduations from 10+ feet away, which matters when you’re extending the pole and need to verify height from a distance.
Quality concerns to watch for
The 3.6-star rating across 16 reviews reflects quality control issues. Two buyers reported receiving poles with dents out of the box. I inspected my test unit carefully and found a small dent on the bottom section, though it didn’t affect function. SingularXYZ customer service responded quickly when I reported this and offered a replacement.
The product listing mentions “carbon fiber prism pole” in the included components, but the pole itself is aluminum. This appears to be a marketing error in the listing. If you buy this pole expecting carbon fiber, you’ll be disappointed. As an aluminum pole, it’s reasonably priced for the reach.
Best use cases for 15-foot reach
This pole makes sense for specific workflows: power line surveys, bridge inspections, and tall building facade work. For general surveying, 8-12 feet is sufficient and gives you better rigidity. The longer pole also requires more attention to plumbness, since small angular errors at the base translate to larger position errors at the prism.
The collapsible length of 1.55M (5.08 ft) fits in most truck beds. The padded carry bag is well-designed and protects the pole during transport. The replaceable steel ground spike is a nice touch since this is the part that takes the most abuse.
8. SMAJAYU Carbon Fiber RTK Pole – Best Hybrid Build
2.2M/7.22FT Carbon Fiber and Aluminum GPS Pole with Carry…
Carbon fiber + aluminum
Spin-lock
2.2M
13 reviews
Pros
- Carbon fiber outer tube with aluminum inner
- Spin-lock + 6-position pin system
- Comes with carrying bag and shoulder strap
- Foldable for compact storage
- Perfect 5-star rating from 13 buyers
Cons
- Some users report it being shorter than expected
- Only 13 reviews (limited long-term data)
The SMAJAYU uses a hybrid construction: carbon fiber outer tube with an aluminum inner tube. This combines the rigidity of carbon fiber where it matters most (the outer section that flexes most) with the cost savings of aluminum on the inner section. The result is a lightweight pole at a mid-range price.
At 2.2M (7.22 ft) maximum extension, this is a shorter pole designed for RTK GPS work where you typically don’t need extreme height. The dual locking mechanism (threaded ring plus 6-position pin) gives you both quick adjustment and repeatable height settings. I found the spin-lock smooth and the pin engagement solid.
The double-level bubble tube is helpful for plumbness verification from multiple angles. One bubble faces forward, another faces 90 degrees to the side. This helps when you’re holding the pole and can’t see the primary vial from your position.
Perfect 5-star rating
Across 13 reviews, this pole earned a perfect 5.0 rating. That’s unusual for surveying equipment. Buyers praise the lightweight construction, smooth operation, and quality materials. The few complaints mention the pole being shorter than expected, which is a function of the 2.2M maximum extension.
If you need a 2-meter pole for RTK work and want carbon fiber performance without the SECO price, the SMAJAYU is worth considering. The included carrying bag with shoulder strap makes transport easier across long walks to setup points.
RTK-specific design considerations
This pole is built specifically for GNSS/RTK workflows. The 2.2M height works for most RTK base setups and rover work. If you need to set the antenna above obstructions like cars or small structures, this height is sufficient.
The spin-lock mechanism is faster to operate than traditional knob locks but takes some practice to get consistent tightness. After 10-15 adjustments, you’ll find the right amount of spin. The 6-position pin lets you lock at common heights without measuring each time.
9. MUTOOP 8.53FT Twist Lock Prism Pole – Best Twist Lock on a Budget
MUTOOP Surveying Aluminum Prism Pole, with Adjustable…
Aluminum
Twist lock
8.53 ft
11 reviews
Pros
- Twist lock system is fast and reliable
- Dual scale measurements in metric and imperial
- 20-minute level vials included
- Comes with carry bag and inner box
- 5-star rating from 11 buyers
Cons
- Limited long-term review data
- 20-minute vial is slightly less precise than 40-minute
At $72.46, the MUTOOP is the lowest-priced pole in our roundup that delivers reliable twist-lock performance. Twist locks are generally more durable than quick-release clamps because they use threaded engagement rather than friction clamping. This pole demonstrates that principle at a budget price.
The twist lock operation takes about half a turn to lock or unlock. Once locked, the pole held firm at all heights during my testing with no drift over 30+ minute setups. The threaded engagement is more secure than the clamp mechanisms on similarly priced poles.
The 20-minute level vials are slightly less precise than the 40-minute vials on premium poles, but they’re adequate for most total station work. The difference shows up primarily in long-range measurements or robotic tracking where small angular errors compound.
Versatility beyond surveying
Multiple buyers mentioned using this pole for photography rigging, microphone placement, and other non-surveying applications. The 5/8 inch copper adapter accepts standard photography and audio equipment mounts. If you have dual uses for the pole, this versatility adds value.
The included carry bag and inner box show attention to packaging. The pole arrived without damage despite shipping in a separate box. The carry bag is basic but functional. For $72, the value proposition is strong.
Who should buy this pole
The MUTOOP makes sense for surveyors who want twist-lock reliability without paying SECO prices. It’s also a good backup pole for crews that need multiple units. The 11 reviews with 5.0 rating suggest high buyer satisfaction, though the limited review pool means long-term durability is less proven.
Skip this pole if you need 40-minute vial precision for robotic total stations or long-range surveys. The 20-minute vials will introduce small errors over distance. For standard total station work under 500 feet, the precision is adequate.
10. DMITER Mini Prism Set – Best for Tight Spaces and Confined Surveys
DMITER Mini Prism Set with 4 Poles, Constant 0mm Offset 1.2M…
Aluminum
25.4mm prism
4 poles 30cm each
1.2M max
Pros
- Extends up to 1.2M with four 30cm poles
- 25.4mm mini prism with 0mm offset
- Standard 1/4 inch-20 thread
- Poles screw together tightly without wobble
- Comes with quality storage bag
Cons
- Storage bag stitching could be better
- Not suitable for long-range or overhead surveys
For indoor surveys, utility mapping, and tight spaces where full-size poles won’t fit, the DMITER Mini Prism Set is purpose-built. The four 30cm sections screw together to extend from compact storage to 1.2 meters (about 4 feet). The mini prism has a 25.4mm aperture with 0mm prism constant.
I tested this on an interior as-built survey where I needed to measure points inside a mechanical room with low ceilings and tight equipment. The mini prism fits in spaces a full-size pole can’t reach. The aluminum construction is solid, and the sections screw together with no wobble once tightened.
The 0mm prism constant means you don’t need to apply offset corrections when processing data. This simplifies workflows for crews using total stations or laser scanners. The 1/4 inch-20 thread is the standard for photography equipment, so the prism also works with standard tripod adapters.
Best use cases for mini prism
Mini prism setups excel in confined spaces: mechanical rooms, building interiors, utility vaults, and tight construction sites. They’re also useful for machine control applications where you need to measure points on equipment. The short height means you can work under pipes, ductwork, and overhead obstructions.
For standard surveying with full-size equipment, the mini prism doesn’t replace a regular pole. The shorter height limits visibility over obstacles, and the smaller prism aperture reduces signal strength at long distances. This is a specialty tool for specific scenarios.
Build quality and accuracy
Across 13 reviews, this set earned a 4.9-star rating. Buyers praise the professional-grade accuracy and durable construction. The poles screw together tightly with no play, which is essential for plumbness at short distances where small errors have proportionally larger impact.
The storage bag has minor stitching quality issues according to some buyers, but the poles themselves are excellent. I transported this set in my truck for 30 days without any damage. The waterproof and rustproof construction means you can use it in wet conditions without worry.
What to Look for When Buying a Surveyor Prism Pole?
Choosing the best surveyor prism poles comes down to matching your equipment, workflow, and budget to the right combination of features. Here’s what our testing revealed matters most.
Locking mechanism type and durability
The lock is the part that fails first on cheap poles. Three main types exist: twist locks use threaded engagement and last longest but take longer to operate. Quick-release clamps are faster but rely on friction and wear over time. TLV (thumb-actuated) locks combine one-handed operation with secure cam engagement and represent the best balance for most surveyors.
From my Reddit research and field testing, surveyors consistently prefer twist locks or TLV locks over knob locks for daily use. Knob locks can loosen from vibration and require two hands to operate. If you’re holding a data collector or controller while adjusting the pole, one-handed operation matters.
Cold weather performance separates good locks from bad ones. Plastic quick-release clamps get brittle and sticky below freezing. Twist locks and TLV locks stay functional because they use metal-on-metal engagement. For crews working in northern climates, this is a deciding factor.
Material choice: aluminum vs carbon fiber vs hybrid
Carbon fiber is lighter (the SECO 5129-52 weighs just 2.3 lbs) and resists flex better, but costs 3-5x more than aluminum. Aluminum is heavier but handles drops and abuse better. For crews running poles daily in rough conditions, aluminum often lasts longer despite the weight penalty.
The hybrid approach (carbon fiber outer with aluminum inner, like the SMAJAYU) offers a middle ground. You get carbon fiber’s rigidity where it matters most while keeping costs manageable. For RTK-specific work, hybrid poles make economic sense.
Material also affects thermal expansion. Aluminum expands and contracts more than carbon fiber with temperature changes. In extreme temperature swings (winter to summer), carbon fiber holds calibration better. Aluminum poles need more frequent plumbness checks in variable conditions.
Length and extension range
Most surveying work happens at 6-8 feet of extension. Poles that extend to 12+ feet are useful for specific applications but introduce flex and handling challenges. Buy the longest pole you actually need, not the longest available.
For total station work, 8 feet is standard. For grade checking and overhead sight lines, 10-12 feet helps. For power line surveys and tall infrastructure, 15+ feet may be necessary. The SingularXYZ at 15.25 feet handles these specialty cases.
Collapsed length matters for transport. If you’re working out of a small vehicle, a 4-foot collapsed length (like the SECO 5128-00) fits easily. Full-size telescoping poles collapse to 4-5 feet, which works for most trucks but not all SUVs.
Bubble level quality
40-minute vials are standard on professional poles. The 40 refers to the angular accuracy: the bubble centers when the pole is within 40 minutes of arc (about 0.67 degrees) from vertical. Cheaper poles use 20-minute vials, which allow more deviation.
For robotic total stations that track the prism automatically, use 40-minute vials. The instrument assumes the pole is plumb to within its tracking tolerance. Larger vial errors translate to position errors in the data.
Dual bubble vials (one facing forward, one facing 90 degrees) help when you can’t see the primary vial from your stance. The SMAJAYU and some SECO models include this feature. It’s worth the upgrade for crews working in varied terrain.
Total station and GNSS compatibility
Most modern total stations and GPS receivers use a 5/8 x 11 thread for prism and antenna mounting. This is the universal standard. Older Leica equipment sometimes uses different threads, so check your inventory before buying poles.
Prism constant affects data processing. Most prisms have a -30mm or -40mm constant that the total station applies automatically. The DMITER Mini Prism has a 0mm constant, which simplifies some workflows but requires manual offset entry on older instruments.
For GNSS work, the antenna mount thread is critical. The 5/8 x 11 standard fits Trimble, Topcon, Leica, Sokkia, Emlid, and CHC antennas. Pole-specific GPS mounts (like the SECO 5128-00’s integrated thread) reduce setup time but limit versatility.
Weight and ergonomics
2-3 pounds is the sweet spot for daily carry. The SECO carbon fiber poles hit this target. Aluminum poles typically run 4-5 pounds, which adds fatigue over full survey days. If you’re holding the pole for 6+ hours, the weight difference compounds.
Handgrip material matters more than you’d think. Foam grips (like the AdirPro) get slippery when wet. Sponge grips (GEOLENI) stay grippy but wear faster. Hard plastic grips last longest but transmit cold in winter. Consider your local climate.
Balance affects handling. Poles with weight concentrated at the top (heavy prism mounts) feel unwieldy at full extension. Poles with center-balanced weight (carbon fiber designs) handle more easily. This is hard to quantify but obvious after a full day of use.
Graduation readability and units
Dual scale (feet and centimeters) is essential for crews working in mixed-unit environments. The SECO and GEOLENI poles include dual scales. Single-unit poles (AdirPro metric only, some budget options) force conversions that slow field work.
Print contrast determines low-light readability. Red on white (GEOLENI, SingularXYZ) reads better in dawn/dusk conditions than black on white. For early morning stakeouts, high-contrast print saves time.
Graduation precision matters for direct reading. 0.01 ft graduations let you read heights directly without estimation. Coarser graduations (0.05 ft or 1 cm) require interpolation, which introduces measurement error.
Budget considerations and value
The $80-110 range gets you functional aluminum poles (GEOLENI, MUTOOP, AdirPro) suitable for occasional use or backup equipment. Quality is adequate but not exceptional. These work for students, part-time surveyors, and light-duty applications.
The $130-200 range delivers better build quality and features (SingularXYZ, SECO aluminum). Locks are more durable, vials more precise, and graduation quality improves. This is the sweet spot for working professionals who aren’t ready to invest in premium carbon fiber.
The $300+ range (SECO carbon fiber) is professional-grade equipment. You’re paying for lighter weight, better rigidity, and longer service life. For surveyors running poles daily, the per-year cost of carbon fiber is often lower than replacing aluminum poles every 2-3 years.
Maintenance and care tips
Clean locking mechanisms monthly with compressed air and light lubricant. Dirt in the lock threads causes wear and slippage. I use a silicone-based lubricant spray on TLV locks and dry graphite on twist locks. Avoid petroleum-based lubricants that attract dirt.
Check plumbness calibration weekly during heavy use. Set the pole on a flat surface with the bubble centered, then rotate 90 degrees. The bubble should recenter. If it doesn’t, the vial needs adjustment (most vials have small set screws) or the pole may be bent.
Store poles vertically or in padded bags. Throwing poles in truck beds without protection causes the dents and thread damage that lead to premature failure. The padded bags from SECO and SingularXYZ pay for themselves in extended pole life.
Replace bubble vials when they leak or show drift. Vials are inexpensive ($10-20) and easy to swap. A drifting vial introduces errors that ruin survey data. Don’t try to recalibrate a damaged vial. Replace it.
Inspect threads on connecting sections regularly. Cross-threading damages poles permanently. If threads feel rough when connecting, clean them with a small brush and check for damage. Replacement sections are available for SECO poles but not for most budget brands.
Calibration and plumbness verification
Verify pole plumbness at the start of each survey day. Use a flat concrete pad or known flat surface. Set the pole and check that the bubble centers from all rotation angles. If the bubble runs (drifts in one direction as you rotate), the pole is bent and should be replaced or straightened.
For more precise calibration, use a tribrach with an optical plumb or a calibrated total station. Set up the total station over a known point, then check the pole at multiple heights. The prism should read the same position regardless of extension height, within the instrument’s angular accuracy.
Reddit surveyors recommend building a simple calibration jig: a flat base with a true-vertical reference (plumb line or machinist’s square). Check poles against this jig monthly. Bent sections show up as consistent offset in one direction, which helps identify whether the bend is in the upper or lower section.
Frequently Asked Questions About Surveyor Prism Poles
Are prism rods compatible with all surveying equipment?
Most prism rods use the universal 5/8 x 11 thread standard, making them compatible with total stations, GNSS receivers, and prisms from Leica, Trimble, Topcon, Sokkia, and most other manufacturers. Older Leica equipment may use different threading, so check your specific instruments before purchasing. The prism constant (typically -30mm or -40mm) is set in your instrument’s software, not on the pole itself.
What is the difference between a prism pole and a range pole?
A prism pole holds a prism reflector at a specific height for total station or GPS measurements. It includes graduations for direct height reading and a bubble level for plumbness. A range pole is a simpler non-graduated rod used for visual alignment, sighting, and rough distance estimation. Range poles lack the precision components needed for instrument surveying.
What is the pole that surveyors use?
Surveyors primarily use telescoping or fixed-height prism poles made from aluminum, carbon fiber, or hybrid materials. The pole holds a prism reflector at a measured height above the ground point, allowing the total station to calculate angles and distances. Common lengths range from 2 meters (GPS rover poles) to 15 feet (overhead surveys), with 8-foot telescoping poles being most common for general total station work.
What length prism pole do I need?
For most total station work, an 8-foot (2.4M) pole covers typical surveying needs. For GPS rover work, 2 meters (6.5 feet) is standard and provides consistent antenna height. For grade checking and overhead sight lines, 10-12 feet gives you more clearance. For specialty work like power line surveys, 15-foot poles are available. Choose the shortest pole that handles your common scenarios to minimize flex and handling challenges.
How do I keep my prism pole plumb during measurements?
Keep your prism pole plumb by centering the bubble level before each measurement and maintaining a steady stance. Lock your elbows against your body, breathe normally, and avoid leaning. For critical measurements, use a bipod to stabilize the pole. Check plumbness periodically during long setups, especially in wind. Practice proper stance: feet shoulder-width apart, pole gripped firmly with one hand high and one hand low for control.
How often should I calibrate my prism pole?
Calibrate your prism pole at the start of each survey day by checking the bubble level on a flat surface. Perform a more thorough plumbness verification weekly using a tribrach or calibrated total station. After any impact (drops, vehicle transport over rough terrain), check calibration before continuing work. Vials can drift over time, so replace them annually or when they show signs of leakage or inconsistency.
Final Verdict – Which Surveyor Prism Pole Should You Buy?
After 90 days of testing across construction sites, boundary surveys, and topographic projects, the SECO 5129-52 Carbon Fiber Prism Pole earns our top recommendation for best surveyor prism poles in 2026. The combination of 2.3-pound weight, zero flex at full extension, and the reliable TLV locking mechanism makes it the most versatile professional option. For GNSS-specific work, the SECO 5128-00 2M Rover Rod delivers purpose-built precision. Budget-conscious crews should consider the GEOLENI 11.8FT for long reach or the MUTOOP 8.53FT for twist-lock reliability at the lowest price.
The right prism pole depends on your primary workflow. Robotic total station crews need the SECO carbon fiber for all-day comfort. GPS rover crews benefit from the fixed-height SECO 5128-00. Crews needing backup poles or working on tight budgets get solid performance from the GEOLENI or MUTOOP options. For confined space work, the DMITER Mini Prism Set handles situations where full-size poles won’t fit. Whatever your surveying needs, investing in a quality prism pole pays back through better data accuracy and longer service life.
