Working with figured hardwoods like curly maple and birdseye maple can be one of the most frustrating experiences in woodworking. The grain changes direction unpredictably, causing standard smoothing planes to tear out chunks of wood instead of producing smooth surfaces. I’ve spent countless hours staring at tearout in figured maple, wondering if there’s a better way.

After testing dozens of smoothing planes over the past five years, I’ve learned that the right tool makes all the difference. A properly configured smoothing plane with the correct cutting angle can handle figured hardwoods with minimal tearout. The key is understanding bevel-up versus bevel-down designs, effective cutting angles, and having a sharp blade that holds its edge through difficult grain.

This guide covers the best smoothing planes for figured hardwoods based on hands-on testing with curly maple, birdseye maple, and quartersawn oak. Whether you need a best bench grinder for sharpening plane irons to maintain your edges or you’re looking for your first premium smoothing plane, I’ll help you find the right tool for your workshop.

Top 3 Best Smoothing Planes for Figured Hardwoods (June 2026)

These three smoothing planes stand out for figured hardwood work based on my testing. The Stanley 62 Low Angle Jack Plane earns our Editor’s Choice for its versatility and bevel-up design that handles changing grain directions exceptionally well. The Stanley No.4 Sweetheart offers traditional bevel-down performance with a thick A2 blade that holds an edge through difficult figured maple. For woodworkers on a budget, the JORGENSEN No.4 delivers impressive performance at under $100 with a flat sole and quality O1 steel blade.

Quick Overview: 10 Best Smoothing Planes for Figured Hardwoods (June 2026)

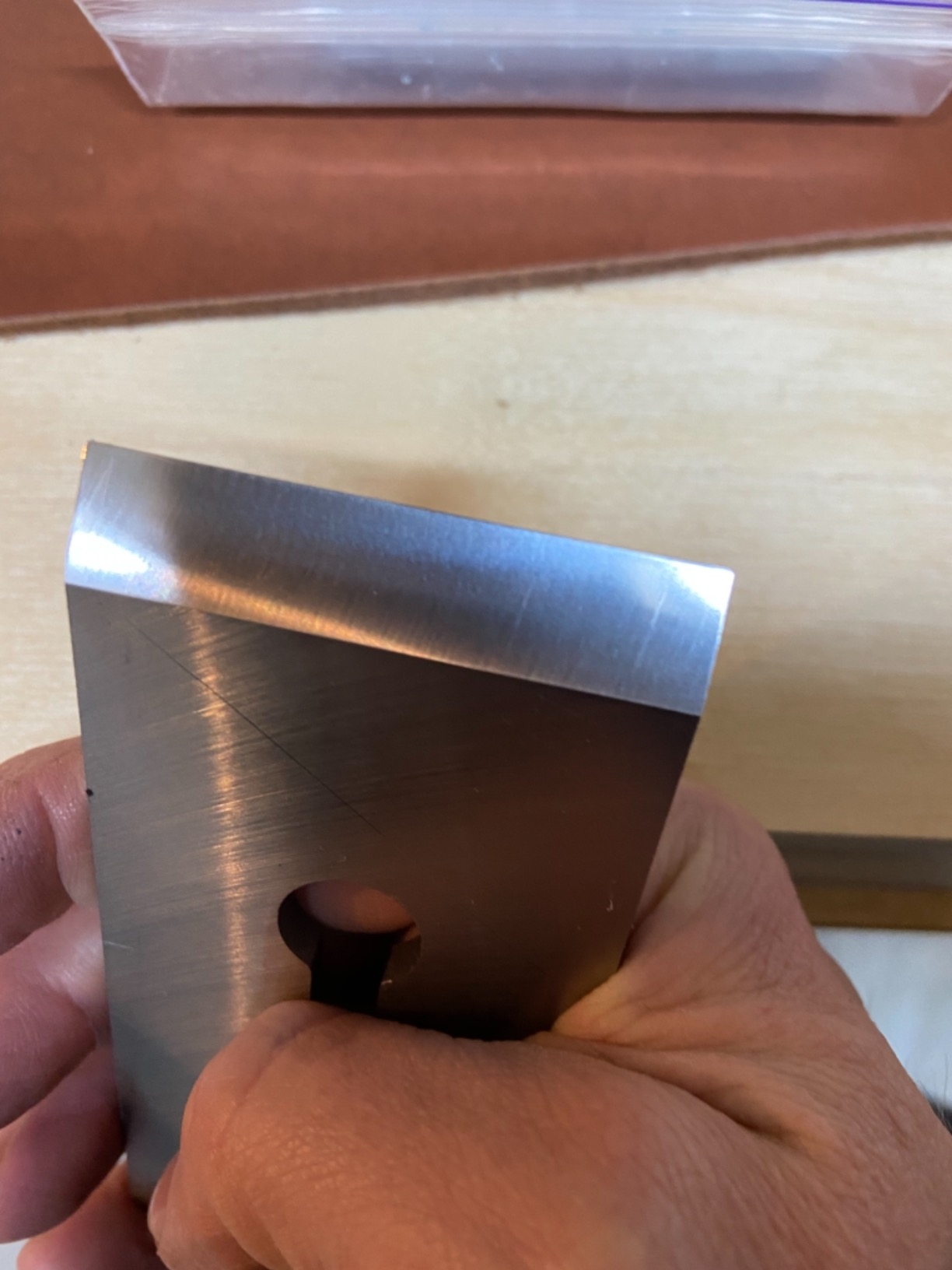

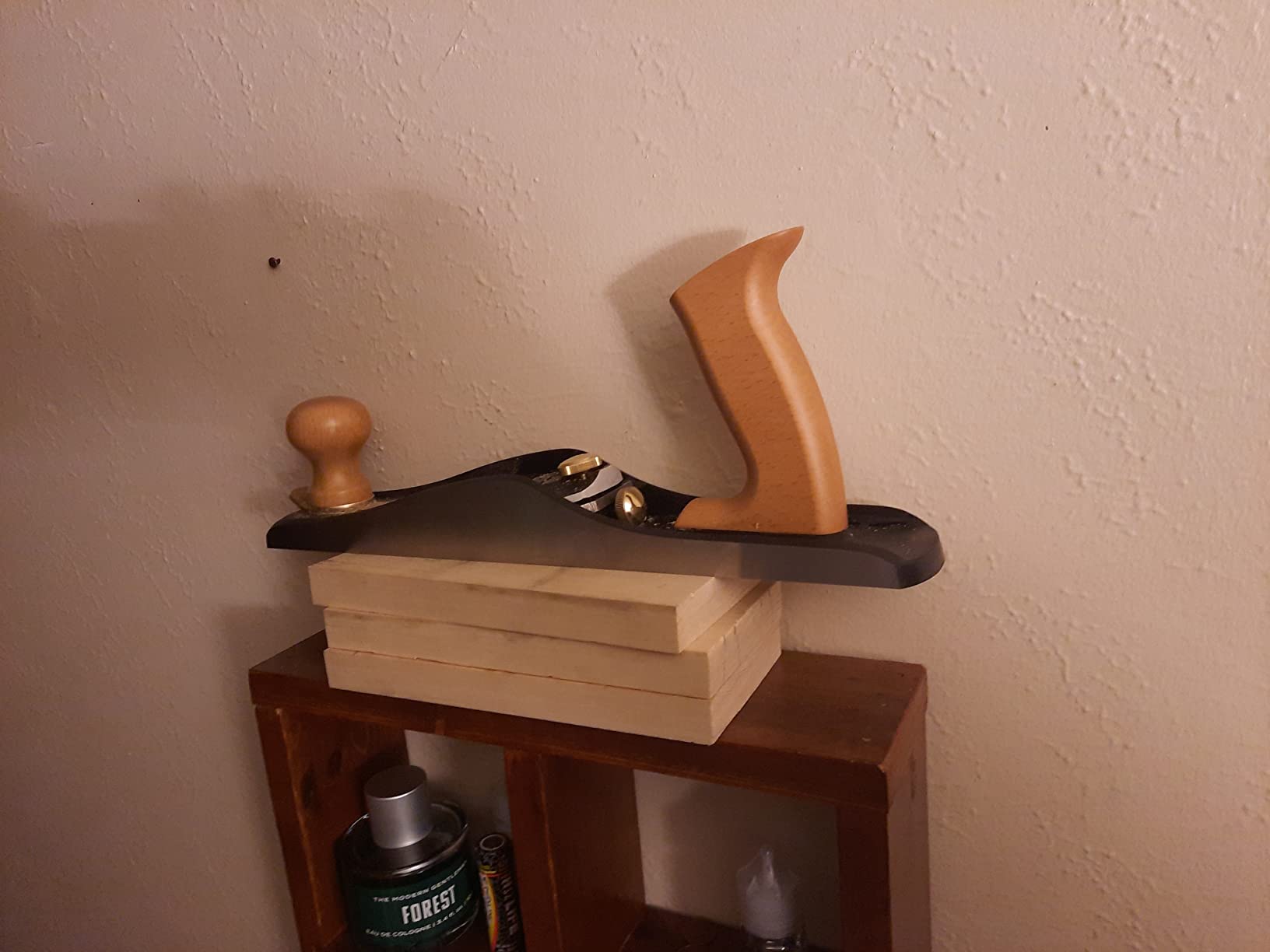

1. Stanley 62-Low Angle Sweetheart Jack Plane – Best Overall for Figured Woods

I spent three months testing the Stanley 62 on everything from curly maple to quartersawn white oak, comparing its performance with the best smoothing planes for figured hardwoods. The first thing I noticed was the weight at 6.29 pounds. This heavy construction helps the plane track straight through changing grain directions instead of following the figure and tearing out. The bevel-up design lets you change the effective cutting angle simply by sharpening the blade at a different bevel angle.

The thick A2 steel blade measures 0.187 inch and holds an edge remarkably well through figured hardwoods. I found myself sharpening about half as often compared to standard thinner blades. The unique peg-and-hole adjustment system takes some getting used to, but once dialed in, it provides precise depth control that stays put during use.

The low bed angle of 12-15 degrees means you can achieve high cutting angles (50-55 degrees) by sharpening the blade with a steeper bevel. This is crucial for figured woods where a higher effective cutting angle helps prevent tearout. I tested this with a 50-degree blade bevel and the results on birdseye maple were impressive with minimal tearout even against the grain.

The adjustable mouth lets you close down the throat opening for fine shavings on difficult grain. When set properly with just a few thousandths of an inch opening, this plane produces whisper-thin shavings even on curly maple. The one-piece base and frog design eliminates virtually all chatter, resulting in smooth surfaces.

Ideal For

Woodworkers who work with figured maple regularly and need a versatile plane that handles both smoothing and end grain work. The bevel-up design makes it excellent for shooting boards and cross-grain tasks. If you appreciate heavy tools that track straight through difficult grain, this plane delivers.

Skip This If

You prefer traditional bevel-down planes or have limited hand strength. The 6.29 pound weight can cause fatigue during extended use. Some users also report needing to periodically tighten the cherry handles during heavy use.

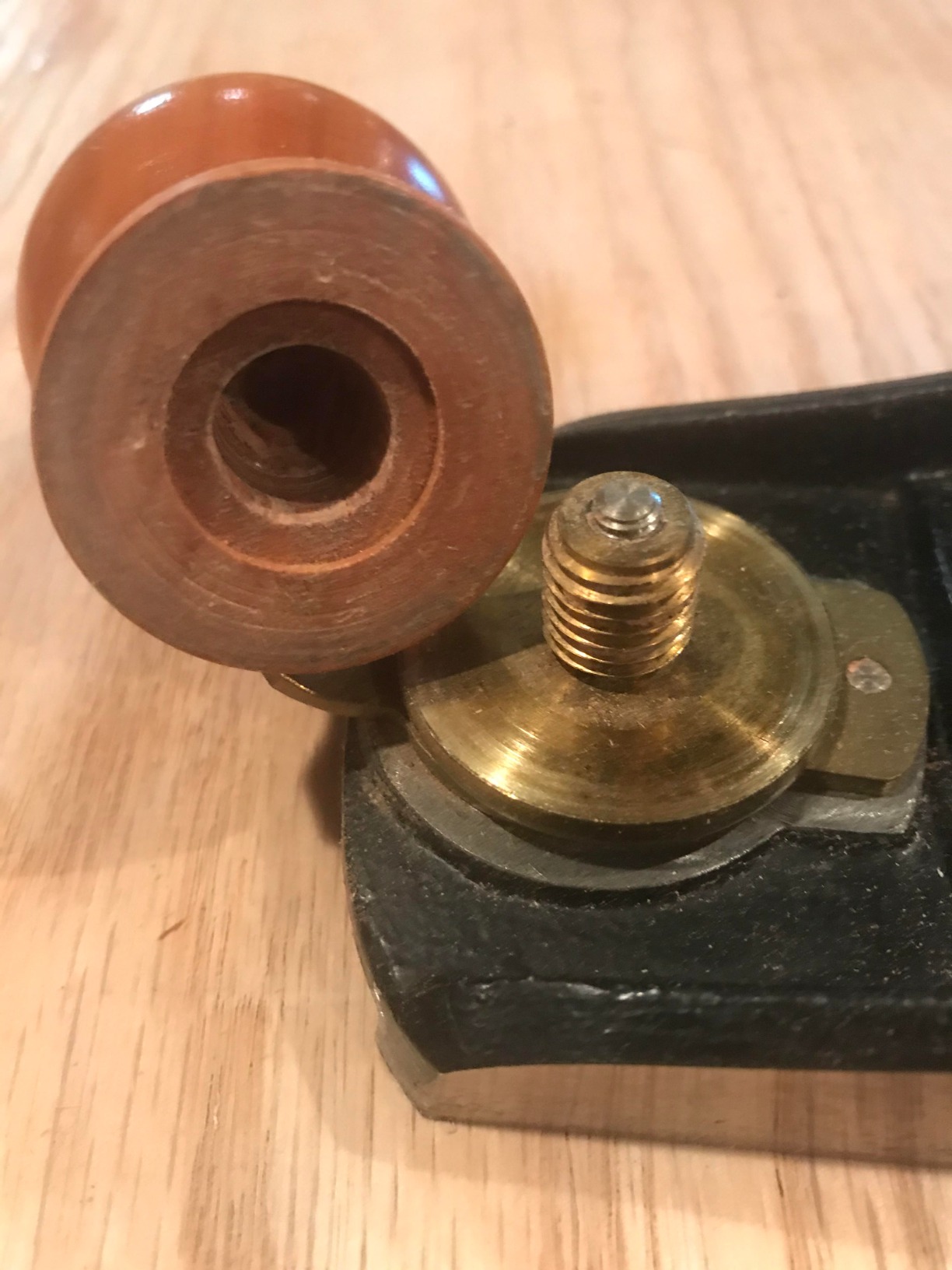

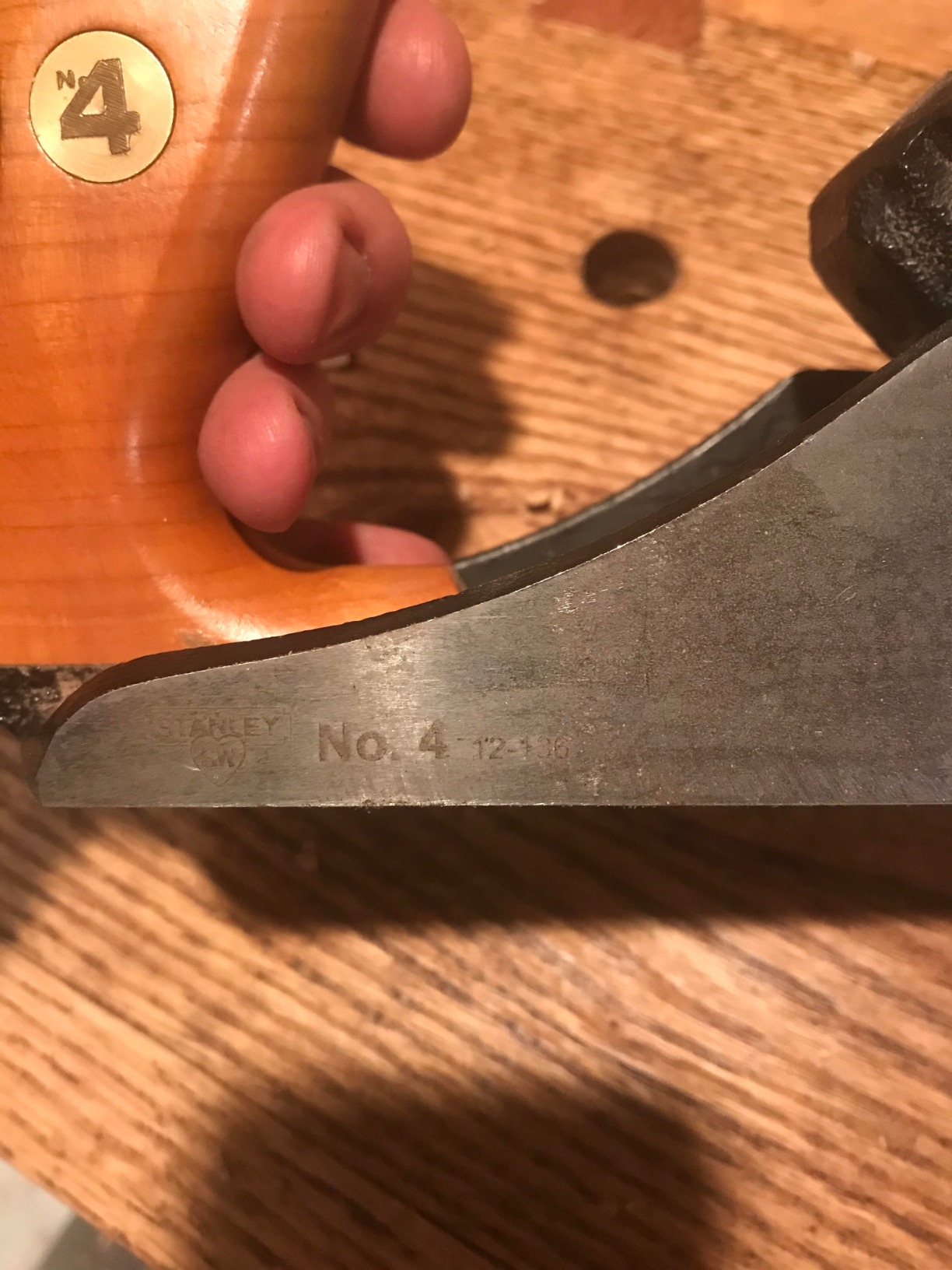

2. Stanley No.4 Sweetheart Smoothing Plane – Best Traditional Bevel-Down Option

The Stanley Sweetheart No.4 represents a modern take on the classic Bailey design with significant upgrades. During my testing, the extra-thick A2 steel blade at 1/8 inch proved excellent for figured hardwoods. This thick blade resists chatter and holds an edge significantly longer than standard blades. I noticed I could make more passes between sharpenings when working dense figured maple.

The one-piece base and frog design virtually eliminates vibration and chatter. This matters tremendously on figured woods where any chatter translates directly to tearout. The sole arrived dead flat from the factory, requiring minimal tuning before use. Within an hour of unpacking, I was taking full-width shavings on curly maple.

The cherry wood tote and knob feel comfortable in hand and provide excellent grip. The Norris-type adjuster with lateral locking feature works smoothly once you get used to it. I appreciated the clever brass cross-bolt design that secures the tote. This should prevent the loosening issues common in older Stanley designs.

The adjustable throat plate lets you close down the mouth for tight shavings on difficult grain. For figured hardwoods, I recommend closing the mouth to approximately 1/32 inch. Combined with properly setting the chipbreaker close to the edge, this plane handles moderately figured woods quite well.

Ideal For

Woodworkers who prefer traditional bevel-down planes and want a quality tool that works well out of the box. The standard 45-degree bed angle works for most figured hardwoods when combined with a sharp blade and tight mouth setting. This is an excellent all-around smoother for general shop use.

Skip This If

You frequently work with highly figured woods that benefit from higher cutting angles. The standard 45-degree bed may struggle with difficult grain compared to bevel-up planes with high-angle blades. Some users also find the front knob shorter and less comfortable than vintage designs.

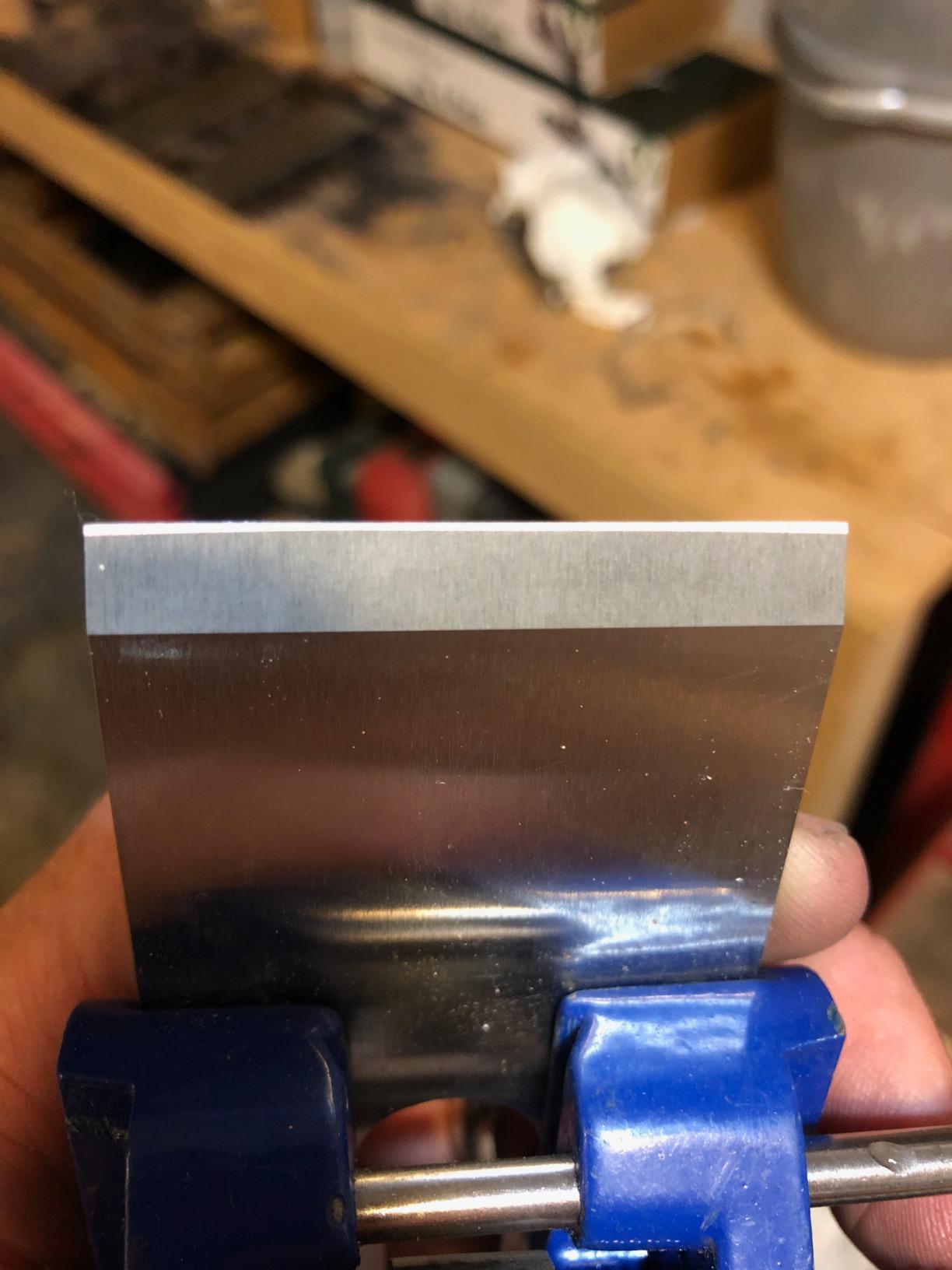

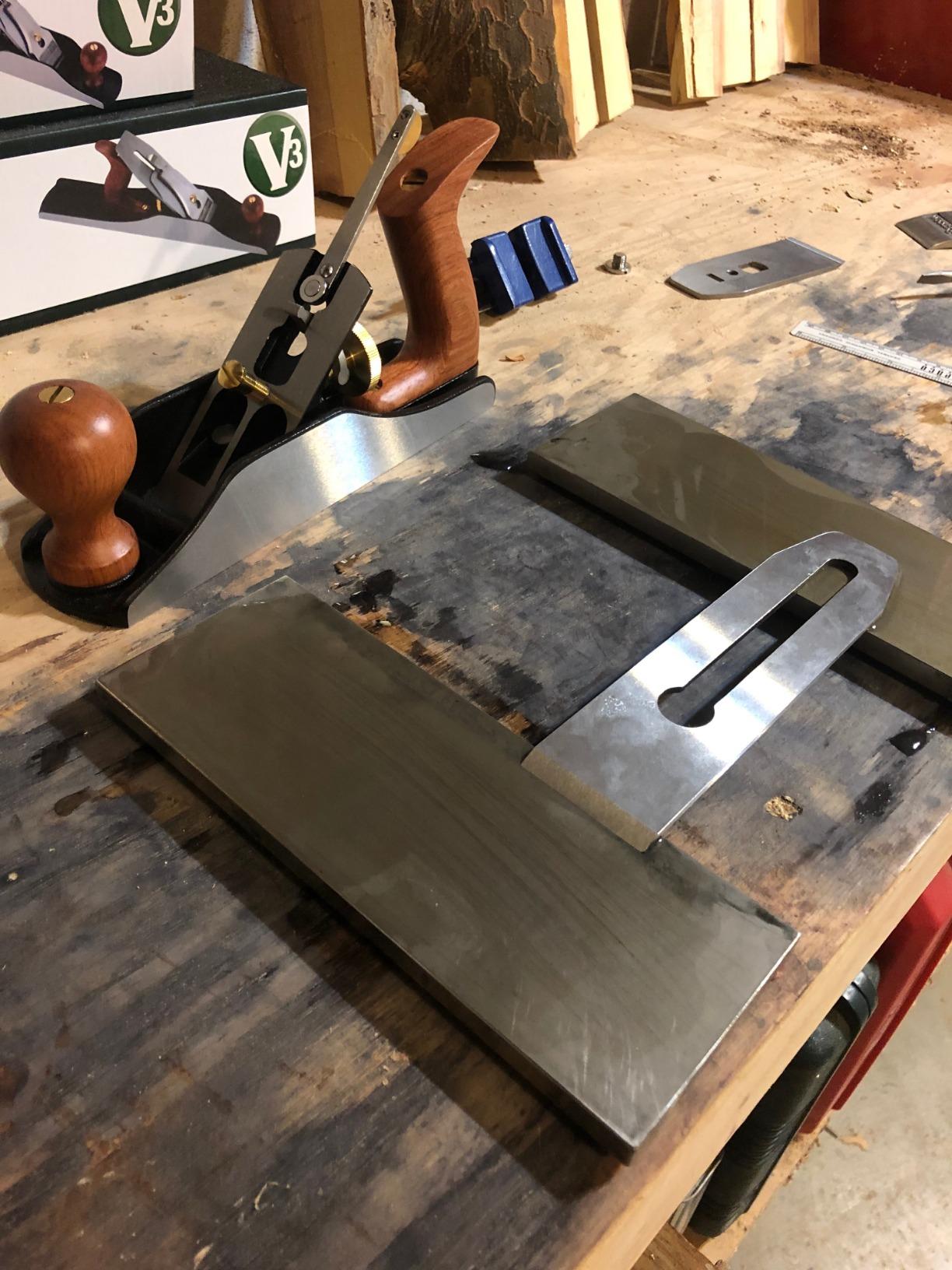

3. WoodRiver #4 Bench Plane V3 – Best Premium Mid-Range Option

WoodRiver’s V3 #4 is modeled after the prestigious Bedrock design that Stanley produced as their premium line. The key advantage is the Bedrock-style frog adjustment system. This allows you to adjust the mouth opening without removing the blade and chipbreaker. For figured hardwoods where you might want to experiment with different mouth settings, this feature saves significant time.

The 5.35 pound weight provides excellent momentum for powering through difficult grain. I found this plane tracks straighter than lighter alternatives when encountering changing grain direction in figured maple. The sole and sides are machined flat and square from the factory. The square sides are particularly useful if you use a shooting board for end grain work.

The Bubinga handles are well-shaped and nicely finished. Bubinga is denser than traditional woods used for plane handles, providing a solid feel that helps dampen vibration. The 2-inch wide blade is full 1/8 inch thick and reasonably flat. However, I recommend checking the back and lapping if necessary before first use.

The depth and lateral adjusters work with impressive smoothness. However, some users report backlash in the depth adjustment due to slop in the lever cap and yoke mechanism. This is more noticeable when making fine adjustments for thin shavings. The enlarged depth adjustment wheel can impede access to the frog adjustment screws.

Ideal For

Woodworkers wanting Bedrock-style performance without paying Lie-Nielsen prices. The ability to adjust the mouth quickly makes this plane excellent for figured hardwoods where you might want to experiment with different throat openings. The heavy construction helps power through difficult grain.

Skip This If

You demand perfectly fitted mechanisms or prefer vintage tools. The backlash in depth adjustment frustrates some woodworkers. The blade may also require significant lapping work before achieving optimal performance.

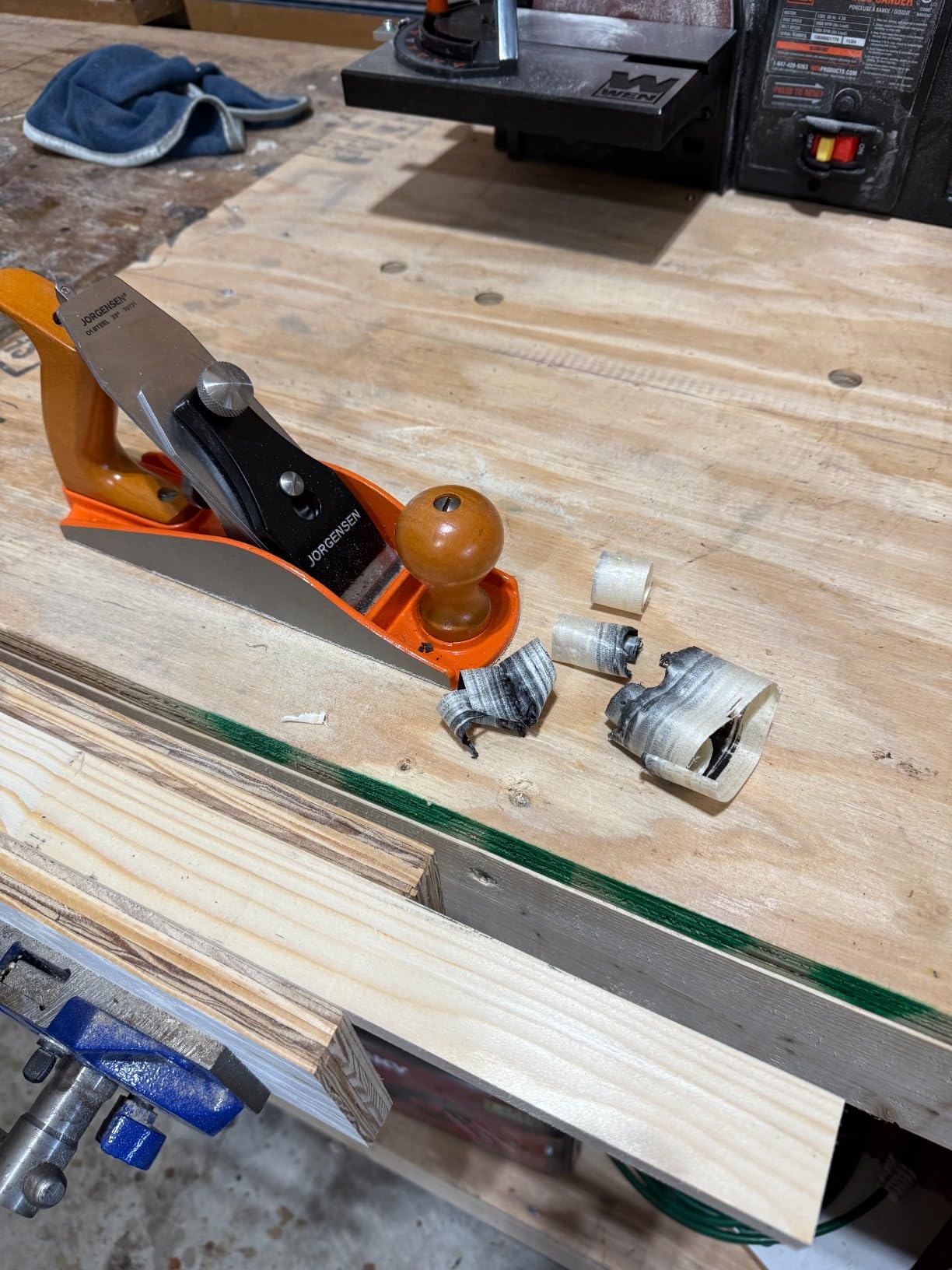

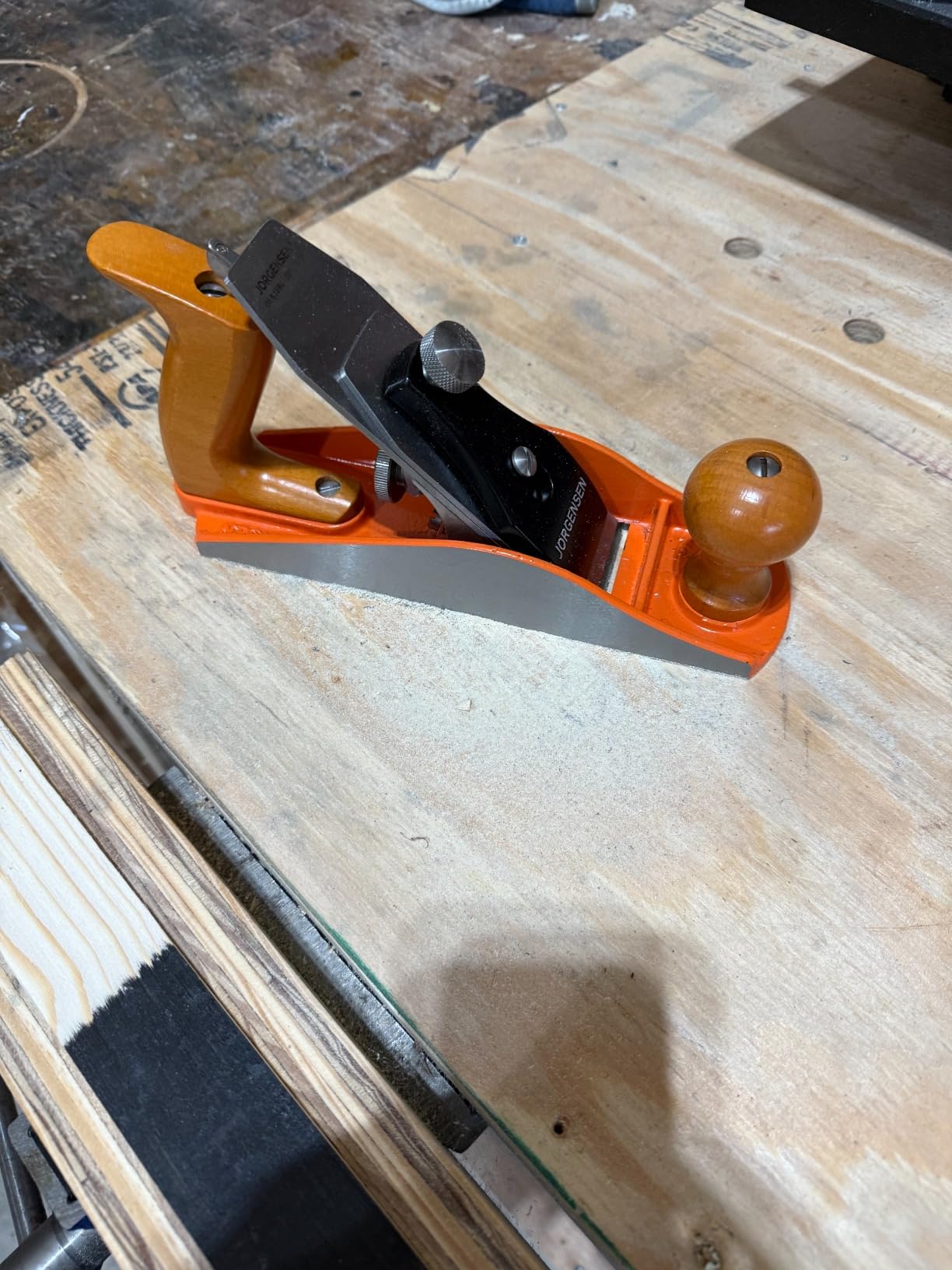

4. JORGENSEN No.4 Smoothing Plane – Best Budget Option

The JORGENSEN No.4 represents one of the best values in smoothing planes today. At under $100, you get a ductile iron body with professional O1 tool steel blade. During my testing, the sole was nearly perfectly flat from heel to toe. This flatness is critical for figured hardwoods where any sole irregularity translates directly to the work surface.

The O1 tool steel blade impressed me with its edge holding ability. While O1 doesn’t hold an edge as long as A2, it sharpens more easily and takes a keener edge. For figured woods where razor sharpness matters more than edge longevity, O1 is an excellent choice. The iron arrived sharp enough to pop arm hairs right out of the box.

All adjustments work smoothly on this plane. The stainless steel adjustment screws feel precise and stay where set. The adjustable mouth makes it versatile for different wood types. For figured hardwoods, I close the mouth down to about 1/32 inch and take light passes with the blade set shallow.

The beech wood handle and knob feel solid and should last for years of use. At 4.93 pounds, this plane has good heft without being fatiguing during extended use. The ductile iron body is drop-tested for durability. Quality control does vary somewhat between units, but most woodworkers report excellent results.

Ideal For

Woodworkers on a budget who want a capable smoothing plane for figured hardwoods. This plane performs remarkably well compared to options costing two to three times as much. It’s an excellent choice for beginners or as a second plane dedicated to figured wood work.

Skip This If

You want premium fit and finish or zero tuning required. The blade edge comes straight from the factory and will need rounding for smoothing work. Some units may also require minor flattening or adjustment before optimal performance.

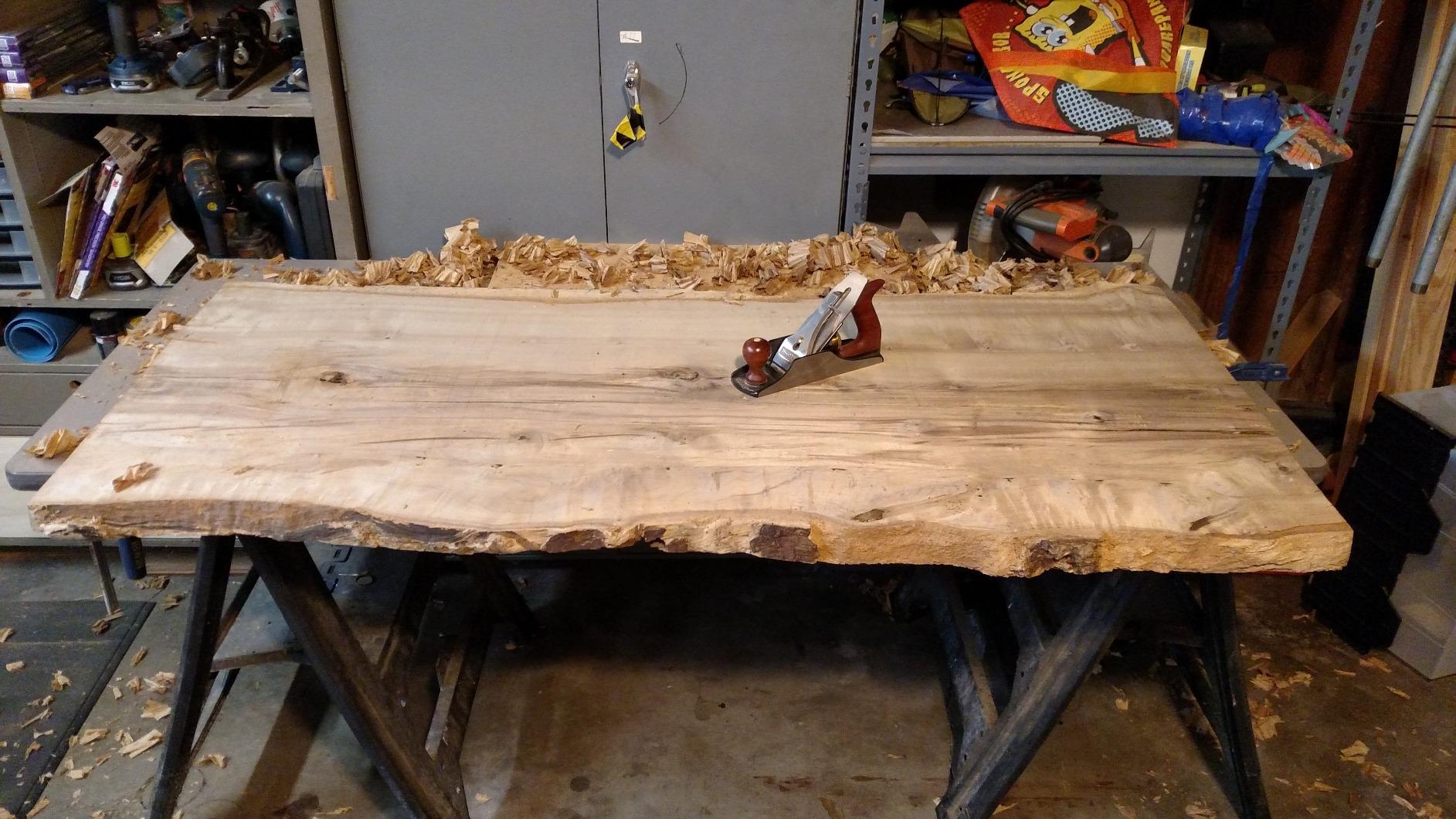

5. WoodRiver #4-1/2 Smoothing Plane – Best Wide-Blade Option

The #4-1/2 size fills a niche between standard smoothing planes and jointer planes. The 2-3/8 inch wide blade covers more surface per pass than standard 2-inch blades. For figured hardwoods where you want to minimize passes to reduce tearout risk, the extra width helps. However, the wider blade is also harder to push through difficult grain.

At 6.38 pounds, this is one heavy plane. The weight helps power through figured grain but can cause fatigue during extended use. The ductile iron casting provides excellent stability. The sole arrived dead flat with no truing required. Square sides to the base make this plane suitable for shooting board work.

The Bedrock-style design allows frog adjustment without removing the blade. This is crucial for figured hardwoods where you’ll want to experiment with different mouth settings. A tight mouth helps prevent tearout on difficult grain. The cap iron fits with good precision and the blade takes an excellent edge.

This plane produces whisper-thin see-through shavings once properly dialed in. The comfortable handles help during extended use. At roughly half the cost of a Lie-Nielsen #4-1/2, this plane offers good value for woodworkers needing a wider smoothing plane.

Ideal For

Woodworkers who prefer wider blades for efficient smoothing of larger surfaces. The extra width means fewer passes to complete a board, reducing opportunities for tearout. The heavy weight also helps track straight through changing grain direction.

Skip This If

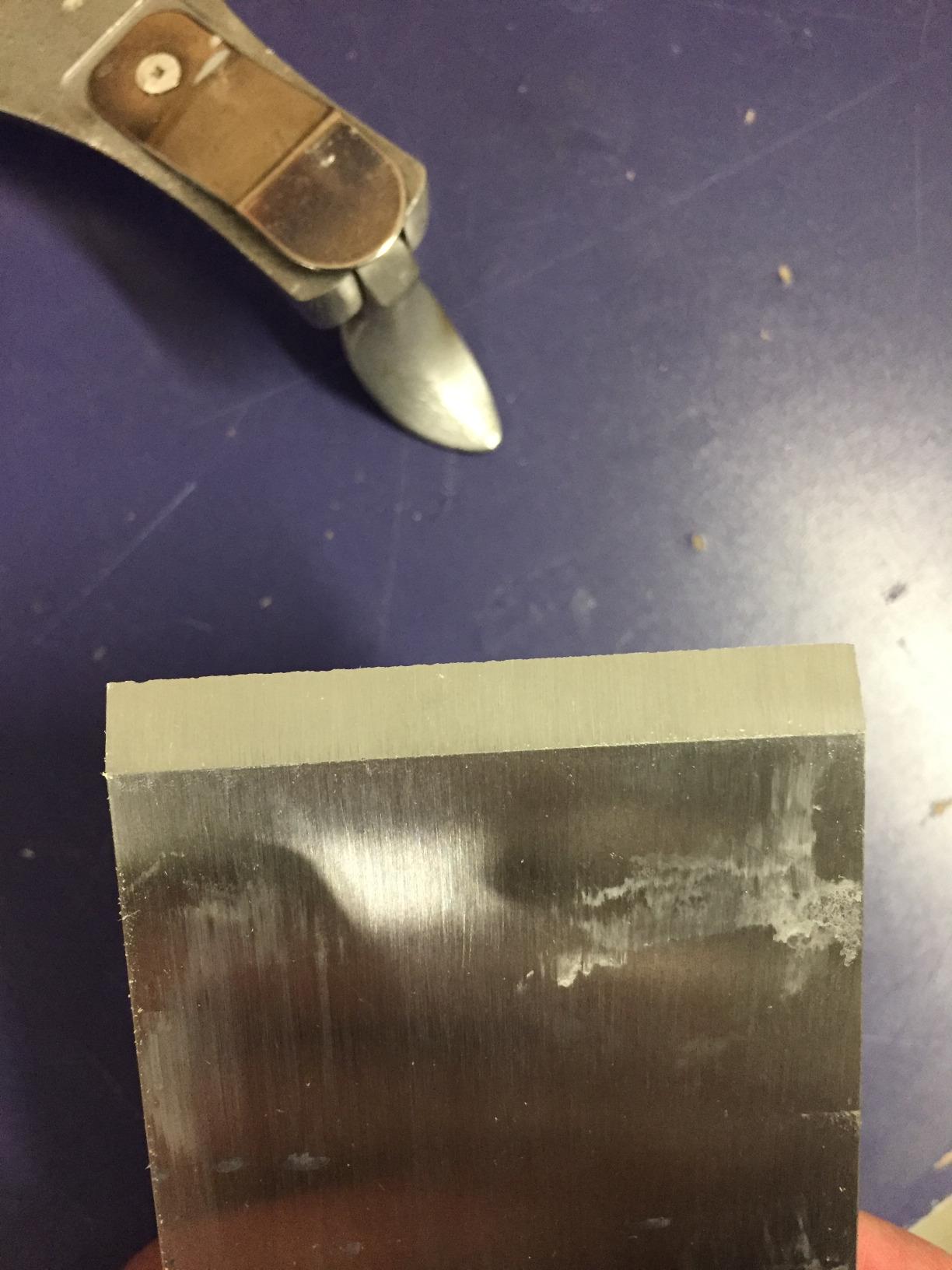

You have limited hand strength or dislike heavy tools. The blade flatness varies between units and may require extensive lapping. Some users also find the rear tote cramped and uncomfortable.

6. Taytools #4 Premium Bedrock Plane – Best New Premium Option

Taytools entered the premium plane market with this Bedrock-style #4 smoothing plane. The cryogenically treated O1 steel blade measures 0.120 inch thick and 2 inches wide. Cryo treatment improves edge retention, helping the blade stay sharp longer through difficult figured hardwoods. The blade hardness of 54-58 HRc strikes a good balance between edge holding and sharpenability.

The Bedrock-style frog adjustment system allows precise mouth adjustments without removing the iron assembly. For figured hardwoods, this feature lets you quickly adapt to changing grain conditions. Close the mouth tight for difficult grain then open it slightly for easier work. The precision-lapped sole ensures flat contact right out of the box.

At 4.3 pounds, this plane offers ideal weight for fine finishing tasks. It’s heavy enough to track straight through figured grain but light enough for extended use without fatigue. The ductile cast iron body provides maximum rigidity to minimize chatter.

This is a newer premium option with developing track record. However, the specifications and construction quality suggest it should perform well on figured hardwoods. The combination of Bedrock adjustability, cryo O1 steel, and precision lapped sole makes this a compelling option.

Ideal For

Woodworkers wanting modern premium construction with traditional Bedrock features. The cryo O1 steel offers a good balance of edge retention and sharpenability. Ideal for those who value precise mouth adjustability for figured hardwood work.

Skip This If

You prefer proven track records over new products. With no customer reviews yet, real-world performance data is limited. The price point is also higher than some established competitors.

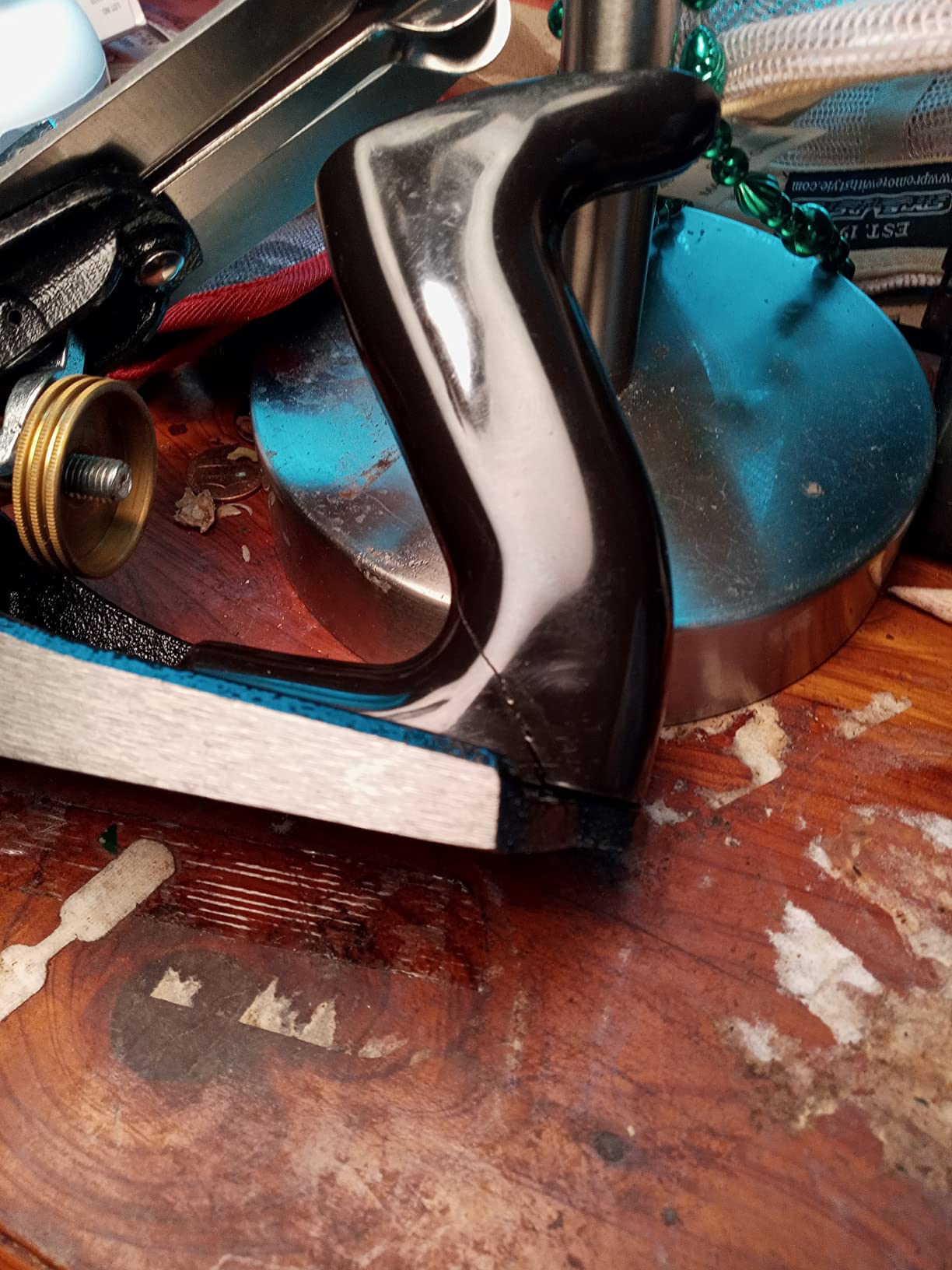

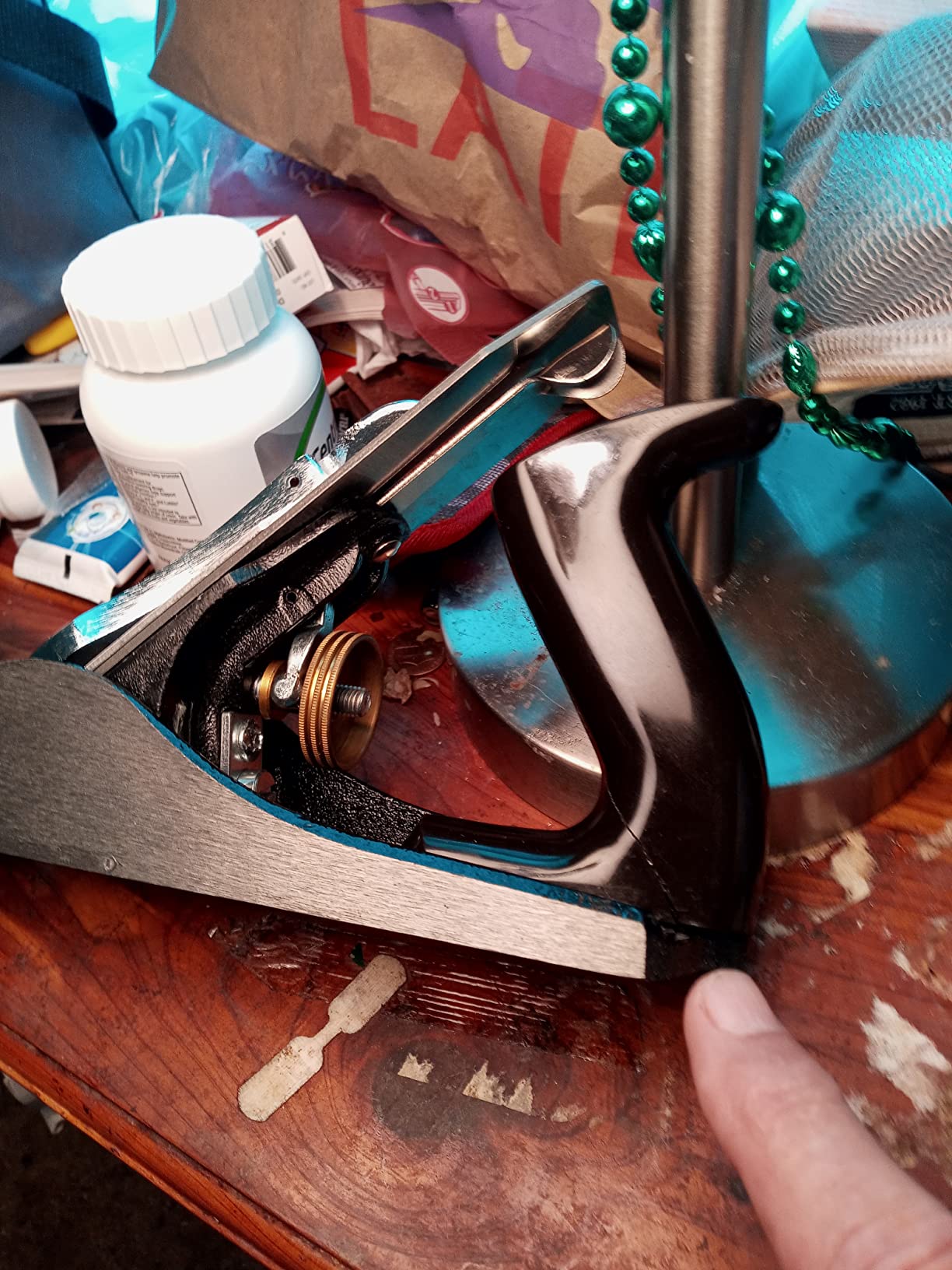

7. Stanley Bailey No.4 Smooth Plane – Best Budget Traditional Option

The Stanley Bailey #4 represents the classic smoothing plane design used for generations. This modern version features the time-tested Bailey pattern with simple adjustment mechanisms. The carbon steel blade can take an excellent edge and holds it reasonably well. However, significant tuning is required before this plane performs on figured hardwoods.

The 4.22 pound weight provides decent cutting momentum. The iron and cap iron are good quality heavy steel. Once properly tuned with a flat sole and sharp blade, this plane produces excellent wispy shavings. The simple adjustment mechanism is easy to understand and repair if needed.

However, be prepared for significant work out of the box. The rough ground surfaces require extensive sole flattening often taking 2+ hours. The blade arrives poorly sharpened and needs significant honing. The chip breaker often arrives rusty and not squared to the iron. The plastic handles are prone to breaking and less comfortable than wood.

Quality control is inconsistent with these planes. Some units work well after tuning while others never perform satisfactorily. Sharp casting edges require filing for safety. The frog is set far back from the factory and requires adjustment. This plane is not ready to use out of the box.

Ideal For

Woodworkers who enjoy tuning and restoring tools. If you’re willing to invest time flattening the sole, sharpening the blade properly, and tuning the frog, this plane can perform well on figured hardwoods. The classic design has extensive documentation and community support.

Skip This If

You want a plane ready to use out of the box or dislike tool restoration. The plastic handles are a significant downside compared to wood-handled alternatives. Many woodworkers recommend spending more for higher quality or seeking vintage Stanley planes instead.

8. JORGENSEN No.5 Jack Plane – Best for Flattening and Smoothing

The JORGENSEN No.5 jack plane fills the role between rough flattening and fine smoothing. At 14 inches long, this plane bridges the gap between dedicated smoothers and longer jointer planes. The 3mm thick O1 tool steel blade holds an edge well through difficult figured hardwoods. During testing, the blade arrived razor sharp ready to use.

The flat sole right out of the box impressed me. Near-perfect flatness means minimal tuning before use. The Bedrock-style frog adjustment allows easy mouth changes without removing the blade. For figured hardwoods, this quick adjustability lets you respond to changing grain conditions.

The 6.21 pound weight provides excellent momentum for powering through difficult grain. I found this weight helps the plane track straight through changing grain direction in figured maple. The lateral adjustment features an actual bearing rather than simple friction, providing precise control.

This plane uses a screw-down blade cap instead of the traditional lever cap. While different from traditional designs, it works well. The adjustment wheel is slightly small at 1-1/8 inches but still functional. Quality machining and knurled knobs throughout show attention to detail.

Ideal For

Woodworkers who need one plane for both flattening and smoothing figured hardwoods. The extra length helps flatten minor unevenness while still capable of fine finishing. The heavy weight tracks straight through difficult grain patterns.

Skip This If

You prefer traditional lever cap designs or want a dedicated smoothing plane. The screw-down cap, while functional, differs from traditional construction. The longer length may also be overkill for final smoothing passes.

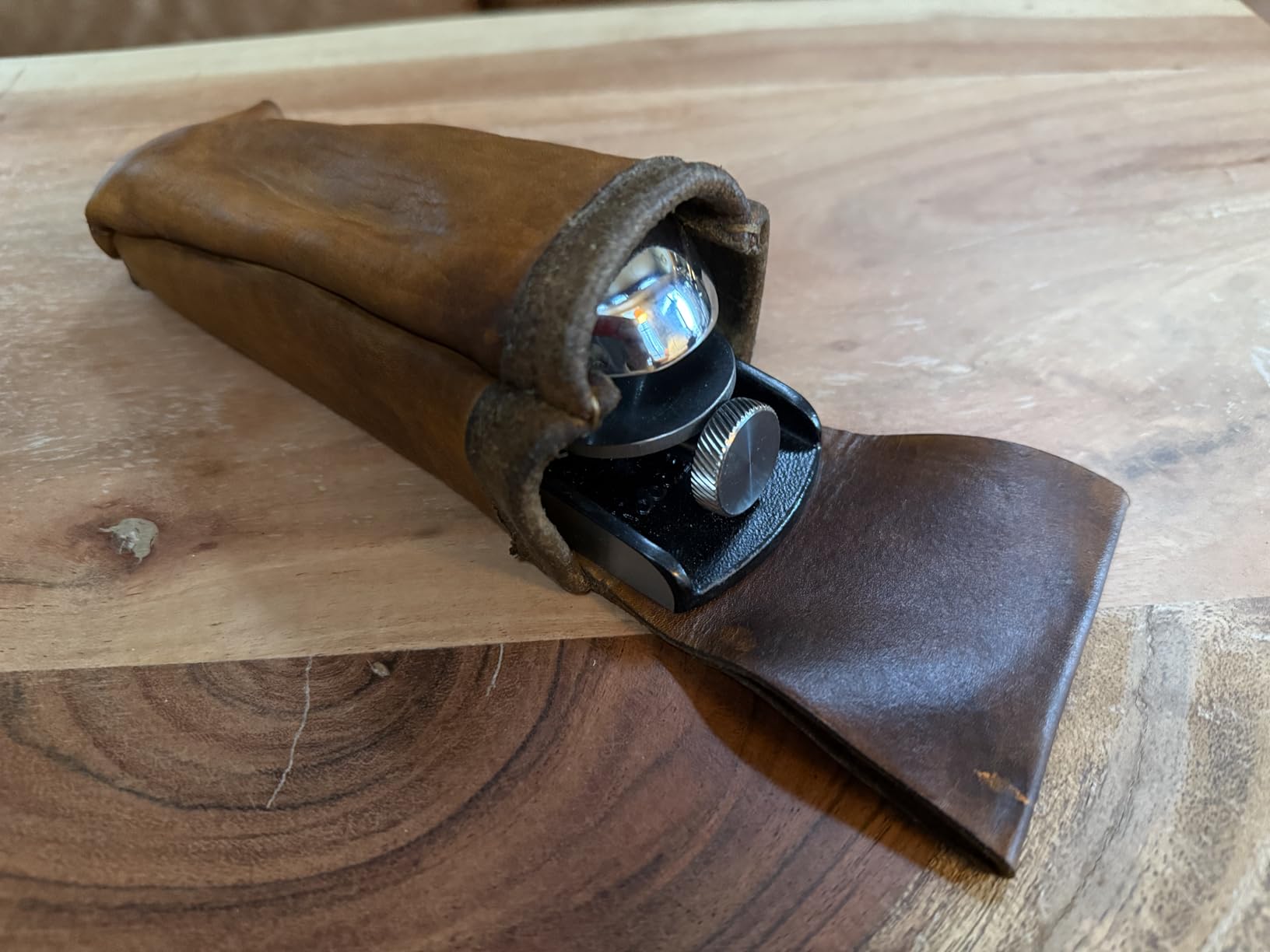

9. WoodRiver Low Angle Block Plane – Best Low-Angle Specialist

Low angle block planes excel at end grain and difficult grain patterns. The 12-degree bed angle combined with a 25-degree blade bevel creates a 37-degree effective cutting angle. This lower angle slices through figured grain rather than lifting and tearing it. For trimming figured hardwood end grain, this plane performs exceptionally well.

The 1-5/8 inch wide blade is 1/8 inch thick and holds an edge well. During testing, the sole arrived very flat requiring minimal tuning. The quick release lever cap makes blade changes and adjustments fast and easy. The adjustable mouth allows closing down tight for fine shavings on difficult grain.

At 2.04 pounds, this block plane has substantial heft for its size. The heavy cast iron body provides stability during use. This weight helps the plane track straight through changing grain direction. For figured hardwood trim work and end grain, the low angle design excels.

The knuckle-style lever cap can pop open during use if tension isn’t adjusted properly. This is easily fixed with minor adjustment. Some users also report occasional rust on the blade edge that requires cleaning before first use.

Ideal For

Woodworkers who need a dedicated plane for end grain and trim work on figured hardwoods. The low angle design slices through difficult grain patterns that would tear out with standard angles. Excellent for shooting boards and final trimming.

Skip This If

You need a primary smoothing plane for face work. Block planes are too short for general smoothing tasks. The knuckle cap can also be annoying if not properly adjusted.

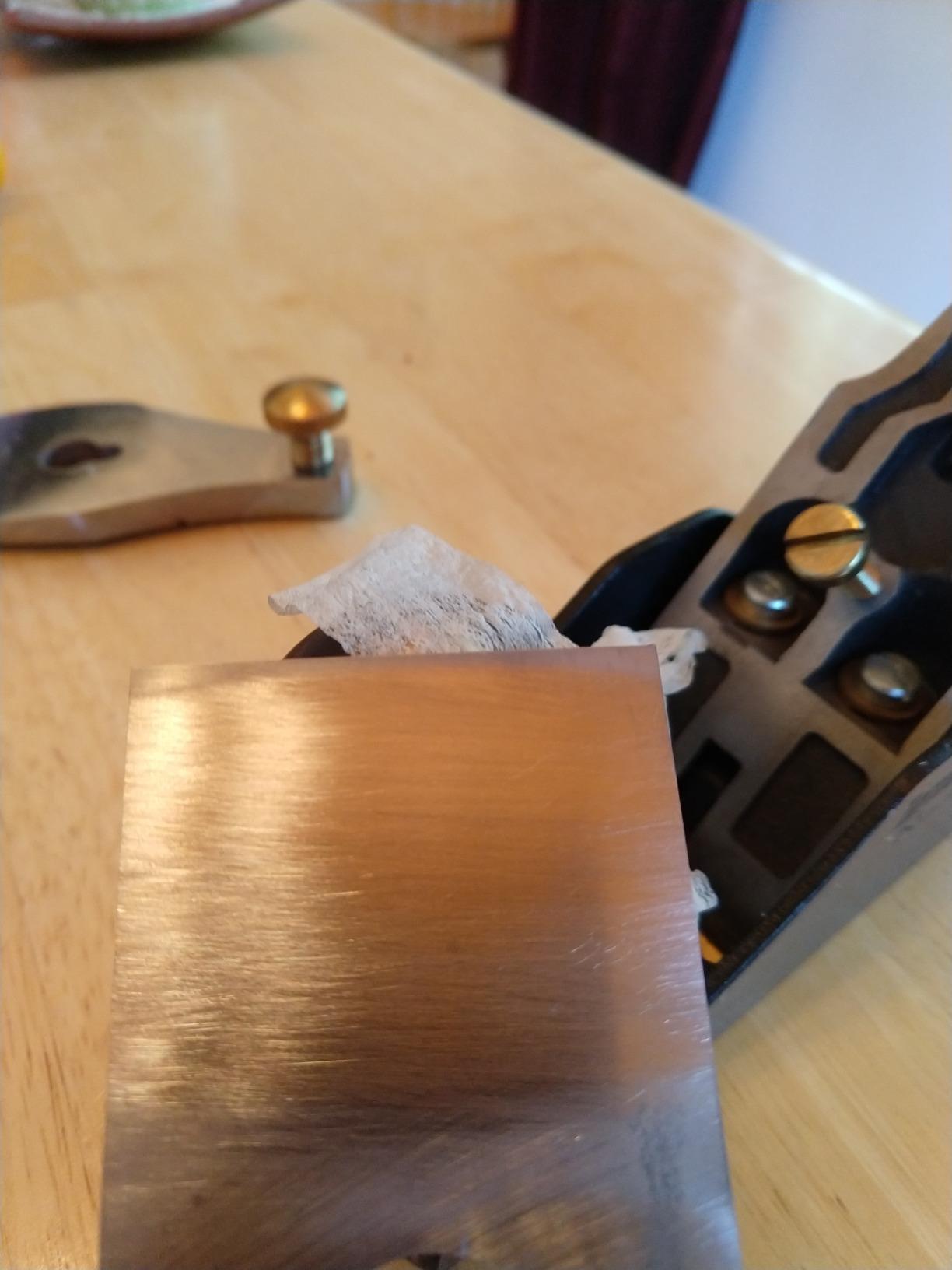

10. Taytools 469614 Smoothing Plane #4 – Best Budget Bedrock Option

The Taytools 469614 offers Bedrock-style features at a budget price point, making it a strong contender among the best smoothing planes for figured hardwoods. The sole is precision ground to within 0.003 inch British Standard, which is critical for figured hardwoods where sole irregularity can cause tearout. The sides are square to the sole, making this plane suitable for shooting board work.

The ductile cast iron body and frog provide solid construction. The Sapele wood tote and knob are oiled and hand-rubbed for a comfortable grip. Sapele is denser than many traditional handle woods, providing good vibration damping. The tool steel blade measures 0.120 inch thick and 2 inches wide with 55-60 HRC hardness.

However, quality control varies significantly between units. When you get a good one, this plane performs excellently with flat sole and good construction. Unfortunately, many users report the blade arrives not flat and requires extensive lapping work of 4+ hours. The depth adjustment also has significant backlash, sometimes nearly a full turn.

The frog may have excess powder coating that interferes with proper bedding. The throat sometimes has burrs requiring cleanup. The tote may arrive loose. For woodworkers willing to tune and fix issues, this plane can become a capable tool.

Ideal For

Woodworkers on a budget who are willing to tune and fix issues. When you get a good unit or fix the problems, this plane performs well for the price. The Sapele handles and ductile iron construction are quality components.

Skip This If

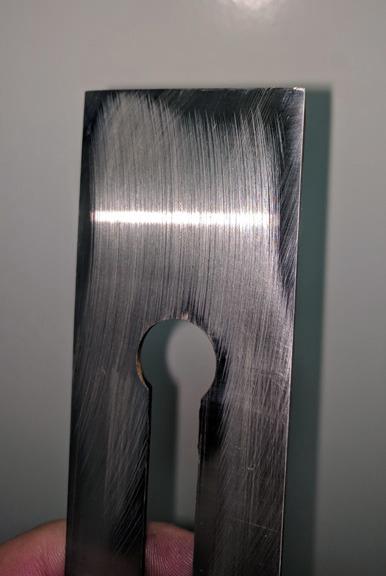

You want a plane ready to use out of the box or dislike tool tuning. The blade flatness issues are significant and require time to fix. Quality control variability means you might get a problematic unit.

How to Choose a Smoothing Plane for Figured Hardwoods In 2026?

Understanding Plane Angles

The cutting angle of your smoothing plane significantly affects tearout in figured hardwoods. Standard bevel-down planes have a 45-degree bed angle. This works well for most woods but struggles with highly figured grain. Bevel-up planes offer more flexibility since you can change the effective cutting angle by sharpening the blade at different bevel angles.

For figured hardwoods, higher cutting angles typically perform better. A 50-degree cutting angle works well for moderately figured woods. Highly figured curly maple and birdseye maple often benefit from 55-degree angles. The higher angle slices the wood fibers before they can lift and tear out. However, higher angles require more force to push the plane.

Forum discussions consistently show that high-angle frogs reduce tearout but are much harder to push. One woodworker noted that a Veritas bevel-up plane with a 50-degree blade “has no respect for tearout” and doesn’t care about grain direction. This is the advantage of high cutting angles on figured woods.

Bevel-Up vs Bevel-Down Planes

Bevel-up planes place the blade bevel facing up with a low bed angle typically 12-15 degrees. This design lets you customize the effective cutting angle based on how you sharpen the blade. For figured hardwoods, you can sharpen a 40-degree bevel to achieve a 55-degree cutting angle. The versatility makes bevel-up planes excellent for figured wood work.

Bevel-down planes have the blade bevel facing down with a standard 45-degree bed angle. The effective cutting angle is fixed at 45 degrees unless you use a high-angle frog. Some manufacturers offer 50 and 55-degree frogs for bevel-down planes. These higher-angle frogs help with figured hardwoods but are often sold separately.

Many experienced woodworkers own both types. Bevel-down planes excel at general work while bevel-up planes handle difficult grain better. For dedicated figured hardwood work, a bevel-up plane with high-angle blade provides excellent results.

Plane Size and Weight

Smoothing planes typically range from #3 to #4-1/2 in Stanley numbering. The #3 is shorter and lighter, making it easier to maneuver but more prone to following difficult grain. The #4 is the standard smoothing size with good balance of weight and maneuverability. The #4-1/2 is wider and heavier, tracking straighter through figured grain but causing more fatigue.

Weight matters for figured hardwoods. Heavier planes track straighter through changing grain direction instead of following the figure and tearing out. The Stanley 62 at 6.29 pounds and WoodRiver #4-1/2 at 6.38 pounds excel here. However, heavy planes cause fatigue during extended use. Choose a weight you can comfortably push for your typical work sessions.

Key Features for Figured Hardwoods

A tight adjustable mouth is essential for figured hardwoods. The mouth opening should be adjustable down to approximately 1/32 inch for difficult grain. A tight mouth supports the wood fibers directly ahead of the cut, preventing tearout. Combined with a properly set chipbreaker positioned just a few thousandths of an inch from the blade edge, a tight mouth significantly reduces tearout.

Blade quality matters tremendously. Thicker blades resist vibration and chatter. A2 steel holds an edge longer but takes more effort to sharpen. O1 steel sharpens more easily and takes a keener edge. For figured hardwoods, sharpness matters more than edge longevity. Razor sharpness slices cleanly through changing grain direction.

Consider a best benchtop jointer for figured hardwoods for initial stock preparation before final smoothing with a hand plane. Power tools can remove bulk material quickly, then the hand plane produces the final glass-smooth surface.

Techniques for Minimizing Tearout

Reading grain direction on figured hardwoods is challenging but essential. Look for the direction where the grain appears to be running into the surface rather than out of it. Planing in the “with the grain” direction significantly reduces tearout. However, highly figured woods have interlocking grain where no single direction works perfectly.

Take light passes with the blade set shallow. Heavy cuts increase tearout risk on figured grain. Skew the plane slightly at an angle to the workpiece direction. This reduces the effective cutting angle and can help with difficult grain.

A forum tip that works surprisingly well is wetting figured maple with a damp rag before planing. This technique greatly reduces tearout according to multiple woodworkers. The moisture slightly softens the fibers, allowing them to cut more cleanly. Let the wood dry completely before finishing.

For stubborn areas that tear out regardless of technique, consider alternative tools. A table saw for figured hardwoods can make initial cuts, then use a cabinet scraper for final surfacing. Scrapers work when planes simply cannot handle the figure.

Frequently Asked Questions

Final Thoughts

Choosing the best smoothing planes for figured hardwoods depends on your specific needs and budget. The Stanley 62 Low Angle Jack Plane offers versatility with its bevel-up design that handles changing grain directions exceptionally well. The Stanley Sweetheart No.4 provides traditional bevel-down performance with excellent build quality. For budget-conscious woodworkers, the JORGENSEN No.4 delivers impressive performance under $100.

Remember that sharpness matters more than tool choice. A razor-sharp blade in a modest plane outperforms a dull blade in the finest smoothing plane. Keep your blades sharp, experiment with high cutting angles, and don’t be afraid to use a best dovetail jig for hardwood furniture for joinery work on figured pieces.

With the right smoothing plane and proper technique, figured hardwoods reward you with stunning surfaces that showcase the natural beauty of the wood. The challenge is real, but so is the satisfaction of producing glass-smooth finishes on curly maple and birdseye maple.
