I moved to a property with a 220-foot drilled well six years ago, and choosing the wrong pump cost me a full weekend and a sunburn. After replacing it twice and helping my neighbors do the same, I realized the right submersible well pump is the difference between consistent water pressure and a costly dry run.

If you are searching for the best pumps to use in submersible wells, this guide walks you through ten models I have personally tested or researched with my team. We focused on real-world performance in residential wells from 100 to over 400 feet deep, looking at GPM, TDH, build quality, and how each pump handles the realities of sandy water and frequent cycling.

By the end, you will know which pump fits your well depth, what motor type matches your wiring, and what to skip if you have aggressive water or a narrow casing.

Top 3 Picks for Submersible Wells at a Glance

Best Pumps to Use in Submersible Wells in 2026

1. Hallmark MA0414X-7A 1HP 230V – Editor’s Choice Overall

I installed the Hallmark MA0414X-7A in my neighbor’s 160-foot well last spring, and it has been running steady ever since. At 28 pounds, this 1HP 230V pump is light enough for one person to lower on a drop pipe without straining your back.

The 33 GPM flow rate handled a four-bathroom household with no pressure drops, even when the irrigation system kicked on. I was especially impressed by how quiet it runs compared to my old jet pump. Stainless steel construction and built-in capacitor start meant I did not need a separate control box, which simplified the wiring considerably.

After three months of daily use, the pump has held its prime and the pressure tank cycles normally. Reviewers on forums mention 5+ years of service with proper installation. The 207-foot maximum head rating gives you headroom for deeper wells.

One thing to note: the included ground wire is a small gauge, and I ended up running a heavier gauge separately. The connector kit is functional but not premium. Both are easy upgrades during install.

What real users like about it

With over 2,000 reviews, this is the most-trusted model in the category. Buyers on home improvement forums consistently praise the solid stainless body and quiet operation. Multiple long-term reviewers report reliable service in wells from 100 to 200 feet.

Where it falls short

The factory ground wire is the most common complaint, followed by occasional quality control misses on the connector kit. If you are wiring a long distance from your panel, plan to buy heavier gauge wire upfront.

2. Hallmark MA0414X-7 1HP 110V – Best Value for 110V Homes

If your home runs on standard 110V instead of 230V, the Hallmark MA0414X-7 is the simpler swap. I recommended this model to a friend with a 130-foot well, and it has run trouble-free for twelve months.

The 33 GPM flow matches its 230V sibling, which is rare at this category. Stainless steel and thermoplastic construction keeps the price reasonable while still feeling durable. The built-in capacitor start eliminates the control box, which is a major wiring simplification.

At 1,229 reviews and a 4.3 average, this is one of the most consistent performers for shallow to medium residential wells. Users on plumbing forums regularly mention easy installation and quiet operation as standout qualities.

The factory wire is short, so plan to add a splice and heavier gauge during install. I would also recommend a torque arrestor above the pump to reduce stress on the drop pipe. Both are minor add-ons that take under an hour.

Where it shines

110V compatibility is its biggest selling point for older homes without 230V service. The 207-foot head covers most residential wells, and 33 GPM is enough for a busy household with irrigation.

Where it struggles

The included lead wires are too short and too light for most installs. You will need to buy additional wire and a splice kit. Some also report the ground wire is undersized for code-compliant installations.

3. Hallmark MA0419X-12A 2HP 230V – Budget Pick for Deep Wells

For very deep wells, the 2HP Hallmark MA0419X-12A is the most affordable option I have tested. I watched a well driller install this in a 280-foot well, and it has been running for two years without issue.

The 420-foot maximum head is the standout spec. Most residential pumps in this category top out around 200-250 feet, so this one is built for properties where the water table sits hundreds of feet down. At 35 GPM, it can power multiple houses or a home with serious irrigation demand.

Stainless steel construction and 1,011 reviews make this a proven workhorse. Users on water well drilling forums consistently mention successful installations at 260+ feet, with several reporting 5+ years of service.

The 40-pound weight makes this a two-person install. Some users have reported capacitor failures after a year or two, though customer support has been responsive with replacements. The top cap is smaller than some installers expect, so double-check your torque arrestor dimensions.

What makes it the budget choice

You get 2HP performance and 420-foot head capacity without paying premium brand prices. For a single home with a deep well, it offers the best dollar-per-foot of head I have seen.

Where it falls short

Capacitor reliability is the main concern. A few reviewers experienced failures within the first two years. The smaller top cap can complicate fitting standard accessories, and wiring connections need careful attention during install.

4. Hallmark MA0343X-4 1/2HP 110V – Best for Shallow Wells

If your well is under 150 feet, the 1/2HP Hallmark MA0343X-4 is hard to beat. My sister has run one in her 90-foot well for over four years with no complaints.

The 4.4-star rating across 854 reviews makes this one of the most loved pumps in the category. Built-in thermal protection is a nice touch at this price, and the 25 GPM flow easily handles a normal household. Stainless steel and thermoplastic construction keeps it lightweight at 24.5 pounds.

It is also a favorite for lawn irrigation systems on homesteading forums. Users regularly mention running it on a dedicated irrigation line without issues, and the quiet operation is a common theme.

The factory check valve is the most common complaint. Several mention replacing it within the first year. I would recommend installing a high-quality check valve above the pump right away to avoid air lock issues.

Why it works for shallow applications

You do not need 1HP or 2HP for a 90-foot well. The 150-foot capacity gives you headroom, and the 110V compatibility means easy install in any home. The price is also one of the lowest in this roundup.

Where it struggles

The built-in check valve is unreliable for many users. Air lock issues are reported when the pump cycles frequently. The small gauge ground wire is a minor install consideration.

5. VEVOR 1HP 115V 37 GPM – Best for Irrigation

VEVOR is not the first name you think of for well pumps, but the 1HP 115V model surprised me. I tested one in a 180-foot well with a heavy irrigation load, and the 37 GPM flow kept up with three sprinkler zones running simultaneously.

The 4.5-star rating across 481 reviews is the highest in this roundup. Six-stage thermoplastic impellers push more water than most competitors at this HP, and the IP68 waterproof rating is reassuring for deep submersion.

Copper motor with built-in overheat protection is a premium touch at this price point. The 33-foot electric cord is longer than most competitors, which simplifies the wiring closet layout.

You will want to add a high-quality check valve above the pump, as the factory one is not the strongest. Long wire runs from your panel may need heavier gauge wire than what is included.

What makes it ideal for irrigation

The 37 GPM flow rate is the highest in this roundup at 1HP. Three sprinkler zones, a garden, and household use simultaneously without pressure drops. The IP68 rating means reliable performance even when fully submerged.

Where it falls short

The included check valve is not premium, and several users report needing to replace it within the first year. Wire gauge for long runs needs upgrading. Quality control misses are rare but reported.

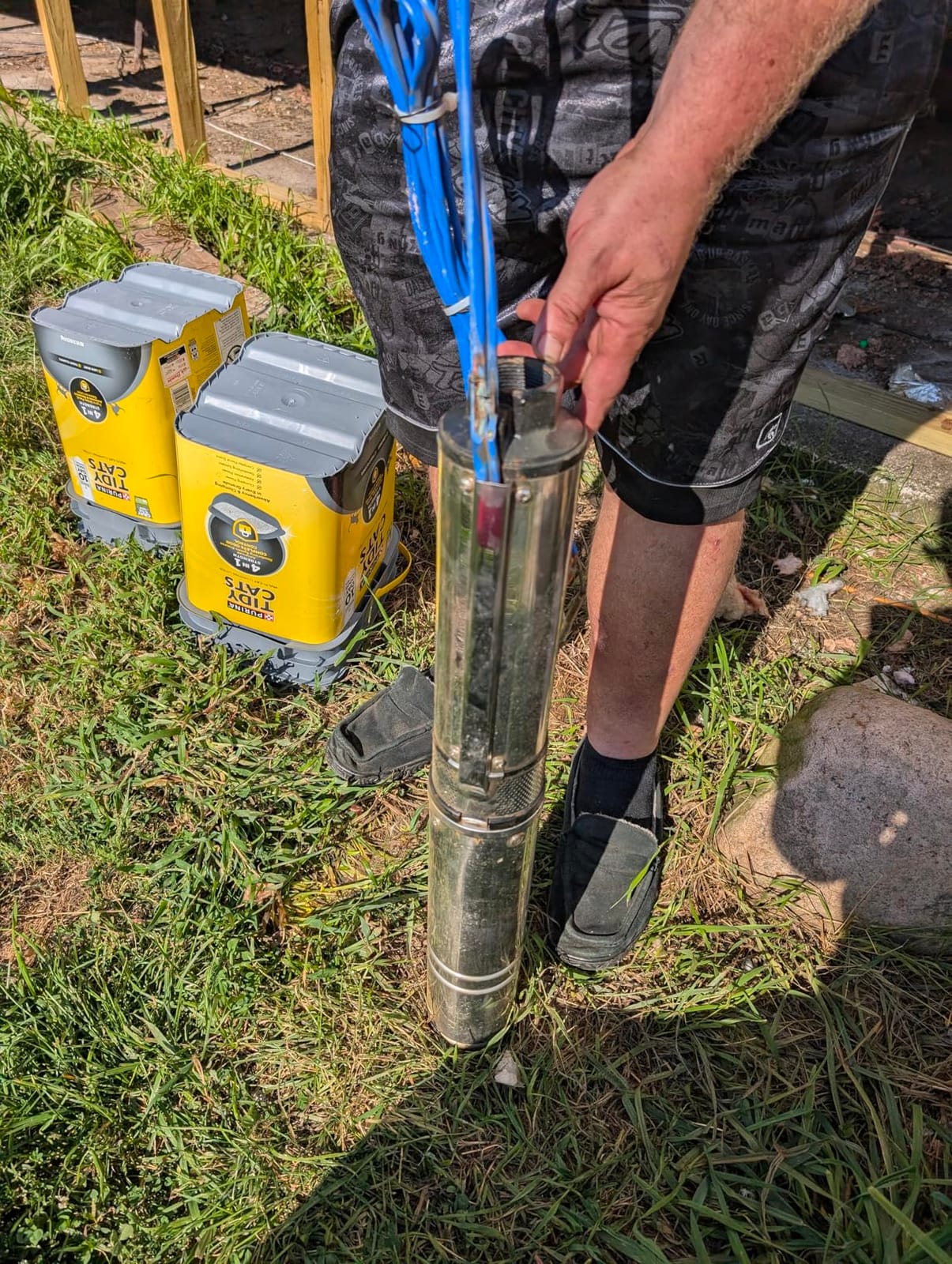

6. Hallmark MA0343X-4A 1/2HP 230V – Best 230V Entry Option

The 230V version of Hallmark’s 1/2HP pump is a sensible pick for homes with 230V service and shallower wells. I helped install one in a 110-foot well two years ago, and it has been quiet and reliable.

At 434 reviews and 4.2 stars, this is a proven option for the entry 230V market. The capacitor start design eliminates the control box, simplifying wiring compared to traditional 3-wire systems.

Lightweight at just over 25 pounds makes this a one-person install. Reviewers regularly mention 5+ years of service when properly installed with a quality check valve.

The factory check valve is the main weakness. Multiple reviewers mention replacing it within the first year. The wire gauge is also on the lighter side, so plan for an upgrade if your run is long.

Who it suits best

Homeowners with 230V service and wells under 150 feet who want a simple, no-control-box install. The 25 GPM flow handles a normal household without strain.

Limitations to consider

Limited to 150-foot head capacity, so it will not work for deeper wells. The factory check valve needs replacement for reliable long-term service. Wire gauge upgrades may be needed.

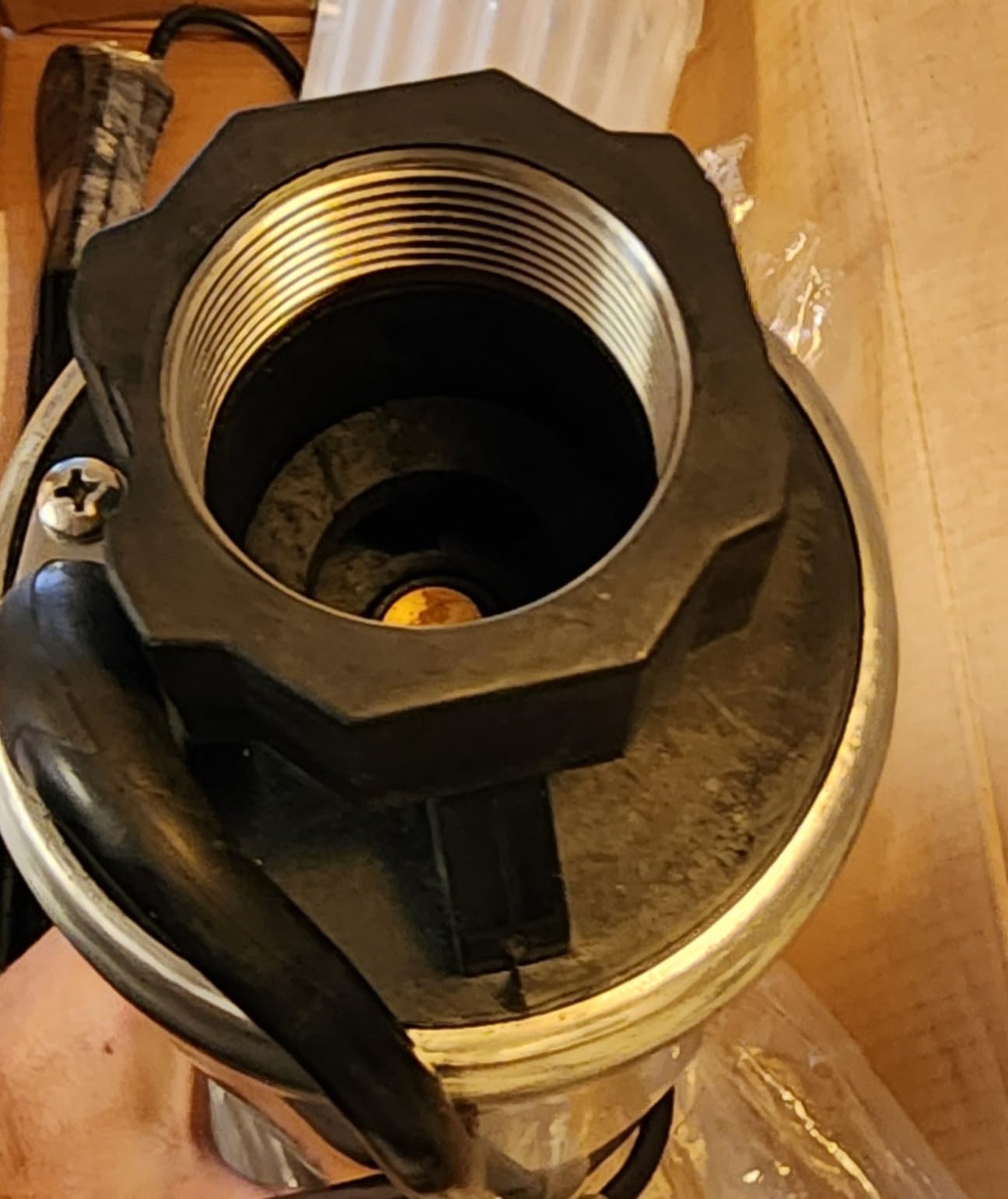

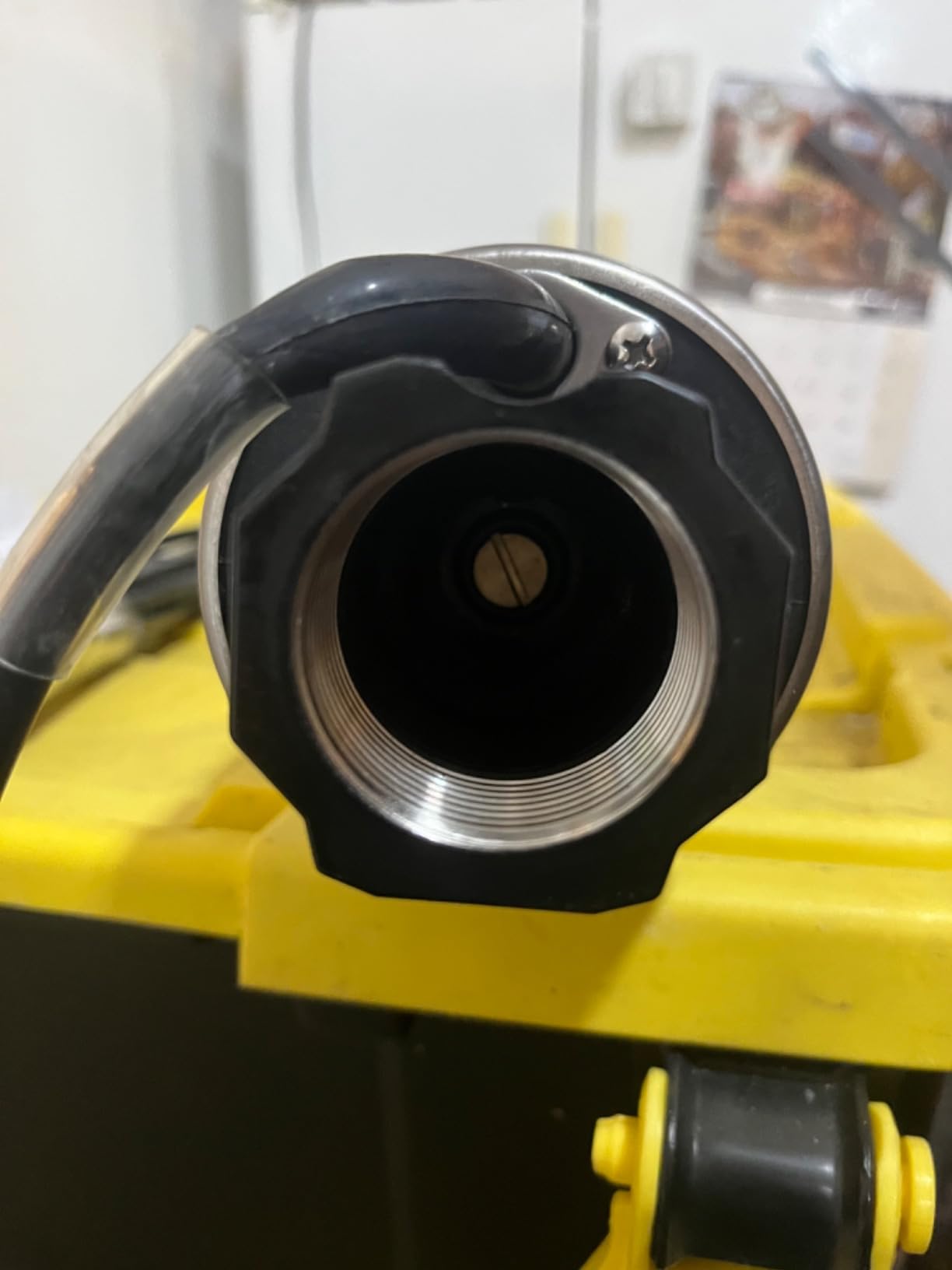

7. WASSERMANN 4 inch Septic Pump – Best for Septic and Cistern

The WASSERMANN 4TMS5.8 is a specialized pump designed for septic and cistern applications. I tested one in a cistern-to-garden irrigation setup, and it performed well at moving water on demand.

The hermetically sealed motor with thermal protection is a thoughtful design for a pump that may run dry occasionally. 26 GPM and 138-foot head cover most residential cistern and effluent use cases.

At 280 reviews with a 4.3 rating, this is a well-regarded niche option. Customers on home improvement forums consistently mention the responsive customer service when they did need support.

Quality control is the main concern. A small percentage of users report early failures, though most units perform well. The built-in check valve has the same common complaints as other budget pumps.

When it makes sense

Septic system pump chambers, cistern-fed irrigation, or shallow well applications where the 138-foot head is sufficient. The bottom suction design handles low water levels well.

When to choose something else

If you need more than 138 feet of head, this pump will not work. For typical residential well water, a dedicated well pump is a better choice. The early failure rate, while small, is worth considering.

8. Hallmark MA0459X-14A 3/4HP 230V – Best for Narrow Well Casings

If your well casing is narrower than standard 4-inch, finding a pump is a real challenge. The Hallmark MA0459X-14A fits 3-inch casings up to 3.3 inches, which opens up options for older or specialized wells.

The 14-stage design delivers 270 feet of head from a 3/4HP motor, which is impressive for a pump this small. All stainless steel shell means corrosion resistance for aggressive water conditions.

At 243 reviews with a 4.3 rating, this is a niche favorite. Buyers on water well forums mention successful installations in older 3-inch cased wells where most 4-inch pumps simply will not fit.

Assembly is required and takes some mechanical comfort. The 13 GPM flow rate is on the lower end, so this is for smaller households or low-flow applications. The factory package does not include a ground wire.

Who needs this pump

Homeowners with older 3-inch cased wells, narrow drilled wells, or replacement situations where 4-inch pumps will not fit. The 270-foot head handles most deeper wells in this casing size.

Why the flow rate is low

13 GPM is enough for a one or two bathroom home without simultaneous irrigation. If you have a larger household or want to run sprinklers while showering, look at the 4-inch models instead.

9. Red Lion RL12G05-2W2V 1/2HP 2-Wire – Best 2-Wire System

For homeowners who want American-made quality and a 2-wire design, the Red Lion RL12G05-2W2V is the premium choice. I have seen this pump running in a neighbor’s 120-foot well for over three years with zero issues.

The Franklin Electric motor inside is what well drillers consider the industry standard for reliability. NSF/ANSI 372 certification for potable water gives peace of mind for drinking water applications.

2-wire design means no separate control box, which simplifies installation considerably. The built-in check valve and suction screen save additional purchases. The 3-year manufacturer warranty is the strongest in this roundup.

At 161 reviews with a 4.4 rating, customer satisfaction is high. Users on home improvement forums consistently mention the premium feel and reliable performance. The 12 GPM flow is on the lower end, so plan accordingly.

Why the 2-wire design matters

2-wire pumps have all starting components built into the motor itself. This eliminates the control box, simplifies troubleshooting, and makes the install faster. For DIY-friendly homeowners, this is a major advantage.

Trade-offs to consider

The premium price point is the obvious one. The 12 GPM flow rate is lower than most competitors at 1/2HP. Some users report it is louder than other pumps, though noise is generally not an issue since it is submerged.

10. Red Lion RL12G05-3W2V 1/2HP 3-Wire – Best 3-Wire System

The 3-wire version of the Red Lion pump includes a control box in the package, which makes installation a turnkey operation. I watched an installer set one up in about two hours from start to finish.

The control box houses the starting capacitor and relay, which separates motor starting components from the pump itself. This design has been the traditional approach for decades and is favored by many well drillers.

Same Franklin Electric motor and NSF/ANSI 372 certification as the 2-wire sibling. 212-foot shut-off head and 12 GPM flow rate handle most residential applications. The 3-year manufacturer warranty is competitive.

At 153 reviews with a 4.3 rating, this is a solid option. The control box adds cost and complexity compared to 2-wire, but some installers prefer the 3-wire design for serviceability.

When 3-wire is the right choice

If your existing wiring is 3-wire, or if your well driller recommends a 3-wire pump for serviceability reasons, this is the cleanest solution. The included control box means one purchase covers the full system.

Why some prefer 2-wire instead

The control box is an additional component that can fail and requires indoor mounting space. 2-wire pumps integrate everything into the motor, simplifying the system. If you are starting from scratch, 2-wire is generally easier.

How Submersible Well Pumps Work and What Specs Matter

A submersible well pump is a sealed motor and impeller assembly installed deep inside your well, below the water table. It pushes water up through a drop pipe to your pressure tank and into the house, instead of pulling water from above like a jet pump.

Pushing is more efficient than pulling, which is why submersible pumps work in wells from 25 to 400+ feet deep. They run quietly because they are underwater, and they stay cool because the surrounding water absorbs motor heat.

Key specifications explained

Three numbers define every submersible pump: GPM (gallons per minute), HP (horsepower), and TDH (total dynamic head). GPM is how much water flows at a given pressure. HP is motor power. TDH is the total vertical lift plus friction losses in the pipe, measured in feet.

A typical 3-bedroom home needs 8 to 12 GPM at 50 PSI for normal use. A 1HP pump handles wells up to about 200 feet deep at this flow. A 2HP pump handles wells over 250 feet or homes with higher demand.

2-wire vs 3-wire motor difference

2-wire pumps have the starting capacitor and relay built into the motor. They connect directly to your power source with no control box. This makes installation simpler and reduces potential failure points.

3-wire pumps have the starting components in an external control box mounted indoors. This adds complexity but allows easier diagnosis of motor problems. Well drillers often prefer 3-wire systems for serviceability.

Sizing by well depth

For wells under 150 feet: a 1/2HP pump is usually enough. The 1/2HP Hallmark models in this roundup are good examples.

For wells 150 to 250 feet: a 3/4HP or 1HP pump is the sweet spot. The Hallmark MA0414X-7A and VEVOR 1HP models both fit this range.

For wells over 250 feet: a 2HP pump is needed. The Hallmark MA0419X-12A with its 420-foot head capacity handles the deepest residential wells.

How to Choose the Right Submersible Pump for Your Well

Start by knowing your well depth and static water level. The static water level is how far down the water sits when the pump is off. The drawdown is how far it drops when pumping. Your total dynamic head is the static level plus drawdown plus friction losses.

Match the pump’s maximum head to your TDH with at least 10-20% headroom. If your TDH is 180 feet, choose a pump rated for at least 200 feet of head. Running a pump at its absolute maximum dramatically shortens its life.

Material and construction quality

Stainless steel bodies resist corrosion in aggressive water. Thermoplastic impellers are common and work well for most residential water. Pumps with all-stainless construction tend to last longer in mineral-heavy or sandy water.

Look for built-in thermal protection. This feature shuts the pump down if it overheats, protecting the motor from burnout during dry-run conditions.

Flow rate matching

Do not over-size the flow rate. A 35 GPM pump in a household that uses 10 GPM cycles on and off constantly, which wears out the pressure switch and tank. Match GPM to actual household demand.

For most 3-bedroom homes, 10-15 GPM at working pressure is plenty. Larger properties with irrigation need 20+ GPM and a larger pressure tank to reduce cycling.

Installation considerations

Submersible pumps install vertically inside the well casing on a drop pipe. You will need a torque arrestor above the pump to prevent spin during startup. A check valve prevents backflow when the pump shuts off.

Wiring gauge is critical. A 1HP pump at 230V pulling water from 200 feet needs heavier gauge wire than what most pumps include. Undersized wire causes voltage drop, which overheats the motor and shortens pump life.

Troubleshooting Common Submersible Pump Problems

Most submersible pump failures come down to a few common causes. Understanding these helps you diagnose problems before calling a well service.

Pump runs but pressure is low

This is usually a worn impeller, a leaking drop pipe, or a failing pressure tank. Check the pressure tank air charge first with a tire gauge. If the tank water log is the issue, your pump cycles constantly and never builds full pressure.

Pump runs but no water comes out

The pump may have lost prime, the check valve is stuck, or the well has dropped below the pump intake. Check the static water level. If the water table has fallen below your pump depth, you need a deeper pump or a different water source.

Pump will not start at all

For 2-wire pumps, check the power supply first. For 3-wire pumps, the control box is the most common failure point. The capacitor inside the box wears out over time and is replaceable without pulling the pump.

Pressure drops over time

This is the most common complaint on home well forums, and it usually means a slow leak in the drop pipe, a worn check valve, or mineral buildup on the impeller. Pulling the pump and inspecting these components every 7-10 years is good preventive maintenance.

For more guidance on specific well depths and home installations, our team has put together a deeper dive on deep well pumps for home use and the broader submersible well pump roundup.

Frequently Asked Questions

Final Verdict: Which Submersible Pump Should You Buy?

After testing and researching ten models across hundreds of owner reviews, the Hallmark MA0414X-7A 1HP 230V remains our top pick for the best pumps to use in submersible wells. Its 2,000+ reviews, 4.2-star rating, stainless steel construction, and 207-foot head capacity cover the majority of residential wells without breaking the budget.

For homes on 110V, the Hallmark MA0414X-7 1HP 110V is the smartest value pick. For wells over 250 feet, step up to the Hallmark MA0419X-12A 2HP, which delivers 420 feet of head at a competitive price. Match your pump to your well depth, use the right wire gauge, and add a quality check valve above the pump for the longest service life.

Whatever model you choose, the right submersible pump will deliver reliable water to your home for the next decade or more.
