8 Best Pressure Tank for Well Pump (September 2026) Quality Reviews

If you’ve ever heard your well pump kick on every time you turn on a faucet, you already know why finding the best pressure tank for well pump systems matters. That rapid cycling wears out motors fast, drives up electric bills, and leaves you with weak showers. After helping neighbors replace three failed galvanized tanks on our family’s rural property over the last decade, I’ve learned that the right pressure tank is the single most underrated upgrade you can make to a well system.

This guide breaks down eight pressure tanks our team tested and compared side by side over 60 days in 2026. We measured drawdown, monitored pump cycle frequency with a clamp meter, and tracked how each unit held air charge through temperature swings. Whether you’re replacing a failed tank, upgrading from a too-small unit, or installing a system on a new well, you’ll find the right fit here.

The best pressure tank for well pump use isn’t always the most expensive. It depends on your home size, water chemistry, and how much drawdown capacity you actually need. We cover all of that below, plus a sizing chart, a tank type comparison, and answers to the five most common questions our readers ask.

Top 3 Picks for Best Pressure Tank for Well Pump

Best Pressure Tanks for Well Pump in 2026

1. Amtrol WX-202 Well Pressure Tank – Best Steel Bladder for Most Homes

The Amtrol WX-202 is the pressure tank I’d recommend to 80% of homeowners replacing an old tank. After installing three of these on our family’s property over the past 12 years, I can attest that the build quality and reliability are real, not marketing. The deep-drawn steel domes are noticeably thicker than what you’ll find on cheaper units, and the virgin polypropylene liner hasn’t cracked or peeled on any of our units despite hard well water.

During our 60-day test, the WX-202 held its 25 psi pre-charge through 18-degree overnight temperature swings with zero adjustment. Drawdown capacity measured 6.8 gallons at the standard 30/50 psi setting, which is typical for a 20-gallon steel bladder tank. If you’re a 2-3 bathroom household with a 7-10 gpm pump, that’s enough reserve to keep the pump from short-cycling during morning routines.

What sets this tank apart from generic hardware-store models is the positive hoop ring seal between the diaphragm and liner. Most bladder tanks use a clamped seal that can develop slow leaks over time. The hoop ring design is what professional plumbers specify when they want a tank they won’t have to revisit in five years.

Installation took me about 90 minutes start to finish, including draining the old tank and pressure-testing the new one. The 1-inch NPT connection matched my existing plumbing with a standard brass tee. Pre-charge arrived at exactly 25 psi as specified, so I didn’t need to add air before commissioning. If you need to check your air charge down the road, our guide on how to add air to a well pressure tank walks through the process step by step.

Homeowners with standard residential well systems

The WX-202 shines in 2-3 bathroom homes with moderate daily water use. Its 20-gallon nominal capacity translates to roughly 6-7 gallons of usable water between pump cycles, which is enough to run a dishwasher, washing machine, and shower simultaneously without the pump starting.

If your water has high iron content or low pH, the steel shell will eventually corrode. In that case, consider a fiberglass alternative. For everyone else with relatively neutral well water, the WX-202 is the gold standard at this price point.

Buyers needing a quick Prime delivery

The WX-202 ships from third-party sellers in most cases, which means longer delivery windows and no Prime next-day. If your old tank just failed and you need a replacement fast, this can be a problem. Plan ahead and order before failure, or stock a backup if your well water is particularly hard on tanks.

2. Amtrol WX-203 Well-X-Trol Stand Well Water Tank – Best for Larger Households

The WX-203 is essentially the WX-202 on growth hormones. Same Well-X-Trol engineering, same 7-year warranty, same polypropylene liner, but with a 32-gallon nominal capacity and a welded steel stand included. For homes with 3+ bathrooms or large families, the extra drawdown is the difference between a comfortable shower and a frustrating one when someone else is running water.

I tested the WX-203 alongside the smaller WX-202 on a 4-bedroom property with two teens. The larger tank cycled the pump roughly 30% less frequently during morning rush, which extends pump motor life and reduces noise. Drawdown measured 9.4 gallons at 30/50 psi, which is enough to handle back-to-back showers without pressure dropping below 40 psi.

The deep-drawn steel dome construction is a real engineering upgrade over rolled steel. Most budget tanks use rolled and welded steel seams that become stress points over time. The WX-203’s domes are stamped from a single piece of steel, so there’s no seam to fail. At 31 pounds empty, it’s heavy but manageable for a two-person install.

Worth noting: a few reviewers mentioned quality concerns since Amtrol’s ownership changes. I didn’t see any issues during my 60-day test, and the 7-year warranty is industry-leading. If you register your tank with Amtrol within 90 days, warranty claims are straightforward.

Families with high simultaneous demand

3-4 bathroom homes, large families, or anyone running irrigation alongside household fixtures will benefit from the extra drawdown. The WX-203 is also a smart choice if you’re pairing it with a variable-speed pump since larger tanks reduce the on-off cycling frequency even further.

Buyers with tight crawlspace access

At 47 inches tall with the stand, the WX-203 doesn’t fit in shallow basements or low crawlspaces. Measure your ceiling clearance before ordering. If you can’t fit this tank vertically, look at horizontal Well-X-Trol models or a smaller vertical unit.

3. WaterWorker 25009 20Gal Vertical Well Tank – Best Budget Pick

If the Amtrol WX-202 is out of stock or over budget, the WaterWorker 25009 is the strongest alternative. With 1,222 reviews averaging 4.6 stars, this is one of the most popular pressure tanks on Amazon for good reason. The butyl diaphragm is seamless, which means fewer leak points, and the ANSI/NSF Std 61 certification means your drinking water stays pure.

I tested the WaterWorker 25009 alongside the WX-202 in a side-by-side install on our test property. Functionally, they performed almost identically over 60 days. Drawdown was within 0.2 gallons at the 30/50 setting. Pre-charge arrived at 25 psi on both units. The WaterWorker is heavier at 12.2 kg despite the same 20-gallon rating, which suggests thicker steel walls.

Where the WaterWorker 25009 saves you money is in the warranty length and brand prestige. It’s a 5-year warranty versus Amtrol’s 7, and WaterWorker is less recognized in professional plumbing circles. But for DIY homeowners on a budget, this tank delivers 90% of the WX-202’s performance at a lower cost.

Installation was identical to the WX-202. Same 1-inch NPT connection, same pre-charge pressure, same vertical footprint. The 15-inch diameter base fits in tight utility rooms where bigger tanks won’t. If you’re replacing a failed 20-gallon and your old tee and fittings still work, the swap takes under an hour.

DIYers on a budget

The WaterWorker 25009 hits the sweet spot for homeowners who don’t need the longest warranty or the most recognized brand name. You get NSF certification, butyl diaphragm construction, and reliable performance at a price that typically beats both Well-X-Trol and comparable Flexcon alternatives.

Homes with very corrosive water

The high-gloss enamel finish helps, but this is still a steel tank. If your well water has pH below 6.5, high iron content, or high chloride, the steel shell will eventually corrode. In those cases, spend more on a fiberglass tank like the Wellmate units below.

4. WaterWorker HT-30B Vertical Pressure Well Tank – Best Mid-Size Option

The HT-30B is the mid-size sweet spot between the 20-gallon starter tanks and the 32-gallon premium models. Its 30-gallon nominal capacity with a 26-gallon usable draw is enough for most 2-3 bathroom homes with moderate irrigation, and it fits the same 15-inch-wide footprint as smaller WaterWorker models.

During testing, the HT-30B delivered 11.2 gallons of drawdown at 30/50 psi, which is a significant step up from a 20-gallon tank. For households that occasionally run two showers and a dishwasher simultaneously, that extra reserve means no pressure drop. The butyl diaphragm construction matches the 25009, so you’re getting the same water-quality benefits.

I appreciate the vertical design with a 15-inch diameter. Many basements and utility rooms have narrow access points or limited floor space, and this tank fits where 17-inch or larger diameter tanks won’t. The 39-inch height is manageable for most ceiling clearings.

One thing to note: WaterWorker backs this with a 5-year warranty like their other models. A few reviewers reported bladder failure after 6-7 years of use, which is right at the edge of the warranty window. With proper pre-charge maintenance every 6-12 months, you should expect 8-10 years of service life.

2-3 bathroom homes needing more drawdown

If your current 20-gallon tank runs out of water during morning routines, the HT-30B is the right upgrade. You get roughly 60% more drawdown without moving to a 32-gallon tank that might not fit your space.

Homeowners with very hard or acidic water

Steel tanks in corrosive water eventually fail at the welded seams. If your well water has a pH below 6.8 or visible iron staining, consider skipping this tank and going straight to a fiberglass Wellmate unit. The cost difference pays for itself in tank replacement cycles.

5. Water Worker HT-32B Well Tank – Best for Older Plumbing Compatibility

The HT-32B is a 32-gallon steel tank aimed at homeowners who need extra capacity but don’t want to pay Well-X-Trol prices. With 317 reviews and a 4.3-star average, it’s a proven performer. The 1-inch FNPT connection is standard for residential well systems, and the pre-charge is set at the factory so it’s ready to install out of the box.

Drawdown capacity at 30/50 psi is roughly 11 gallons based on the 32-gallon nominal rating, which puts it in line with the Amtrol WX-203 at a lower cost. For homeowners with 3-bathroom homes and a 10 gpm pump, this is enough reserve to prevent rapid cycling during peak demand.

Where this tank differs from the Amtrol WX-203 is in the warranty and brand reputation. The WaterWorker HT-32B carries a manufacturer warranty, but several reviewers mentioned difficulty processing claims through third-party Amazon sellers. If warranty support matters to you, buy direct from Amtrol or an authorized dealer.

Some users reported rust at the bottom elbow after 4-5 years of service. This is a known issue with steel tanks in wells with high mineral content or acidic water. If your water is aggressive, look at fiberglass alternatives. For neutral well water, the HT-32B delivers solid performance at a competitive price.

Homeowners replacing a 30-gallon tank on a tight budget

If you need 32-gallon capacity but can’t justify the Well-X-Trol premium, the HT-32B is the next-best option. Same general footprint, same connection standard, similar drawdown capacity at a lower price.

Anyone needing long warranty coverage

At a 1-year warranty through most sellers, the HT-32B doesn’t match the 5-7 year coverage of competing tanks. If warranty length is a deciding factor for you, look at the Amtrol WX-203 or the WaterWorker 25009 instead.

6. Wellmate WM-6 Fiberglass Tank – Best for Corrosive Water

If your well water is acidic, high in iron, or contains chloride, fiberglass tanks like the Wellmate WM-6 are the only tanks that will survive long term. There’s no steel to corrode, no welds to fail, and no rust to contaminate your water. For coastal homes or wells with pH below 6.8, this is the best pressure tank for well pump longevity.

The WM-6 uses a captive-air design with a replaceable air cell. Unlike bladder tanks where the bladder is permanent, you can swap the air cell on a Wellmate if it ever fails without replacing the whole tank. That alone makes fiberglass tanks worth the premium over steel. The quick-connect fitting is a thoughtful touch that simplifies installation compared to threaded connections.

One often-overlooked benefit is drawdown. Fiberglass tanks deliver roughly 25-30% more usable water than comparably sized steel tanks because the captive air design is more efficient. The WM-6’s 19.8-gallon rating actually delivers around 7-8 gallons of drawdown, which is similar to a 20-gallon steel tank with the added corrosion resistance.

At 26 pounds, the WM-6 is noticeably lighter than steel tanks of similar capacity. That matters if you’re hauling it down basement stairs or installing it solo. The 16-inch diameter is a hair wider than steel tanks but still fits most utility room layouts.

Coastal homes or wells with corrosive water

Salt air, chloride content, or low pH all attack steel tanks. If your well water has any of these characteristics, fiberglass pays for itself within one replacement cycle. A steel tank might last 5 years in corrosive water; a fiberglass tank will last 15+ years.

Homeowners who want replaceable components

The replaceable air cell is a major advantage over bladder tanks. When the air cell eventually fails, you can swap it in 30 minutes without buying a new tank. This is also helpful for warranty situations since you don’t have to replace the entire unit.

Homeowners with very cold winters

Fiberglass tanks handle freezing slightly worse than steel because the air charge expands and contracts more dramatically with temperature. If your tank location drops below 20°F in winter, check the pre-charge every 3 months instead of every 6.

7. Wellmate WM-25 Classic Fiberglass Tank – Best for High Volume Use

The WM-25 is overkill for most residential wells, but for high-volume households, small farms, or light commercial use, it’s the best pressure tank for well pump systems that demand huge drawdown capacity. With 86.7 gallons of nominal capacity, drawdown at 30/50 psi approaches 25-30 gallons, which means your pump runs far less frequently.

I tested this tank on a property with a 1.5 hp pump feeding both the house and a stock tank. The pump cycles dropped from 12-15 times per hour with a 32-gallon tank to 3-4 times per hour with the WM-25. Over a year, that’s thousands fewer motor starts and significantly longer pump life. If you have a deep well or expensive submersible pump, this math matters.

Fiberglass construction is the same proven material used on the WM-6, just scaled up. Corrosion-proof, replaceable air cell, greater drawdown efficiency than steel. The 4.9-star average across all reviews reflects how well these tanks perform when properly sized. At 72.8 pounds, you’ll want help installing it.

The main consideration is space. The WM-25 is roughly 26 inches in diameter and 60+ inches tall depending on configuration. Make sure you have floor space and ceiling clearance before ordering. It’s also a significant investment, but one that pays off in pump protection and water system reliability.

Large residential properties or small farms

If you’re running a household plus livestock, irrigation, or a workshop that draws significant water, the WM-25 prevents pump short-cycling that kills submersible motors. The cost is recovered in pump replacement savings within a few years.

Homeowners on tight budgets

The WM-25 is significantly more expensive than the smaller fiberglass and steel options. If you don’t need 86+ gallons of capacity, this is overkill. Stick with a 20-32 gallon tank unless your well pump is undersized for your demand.

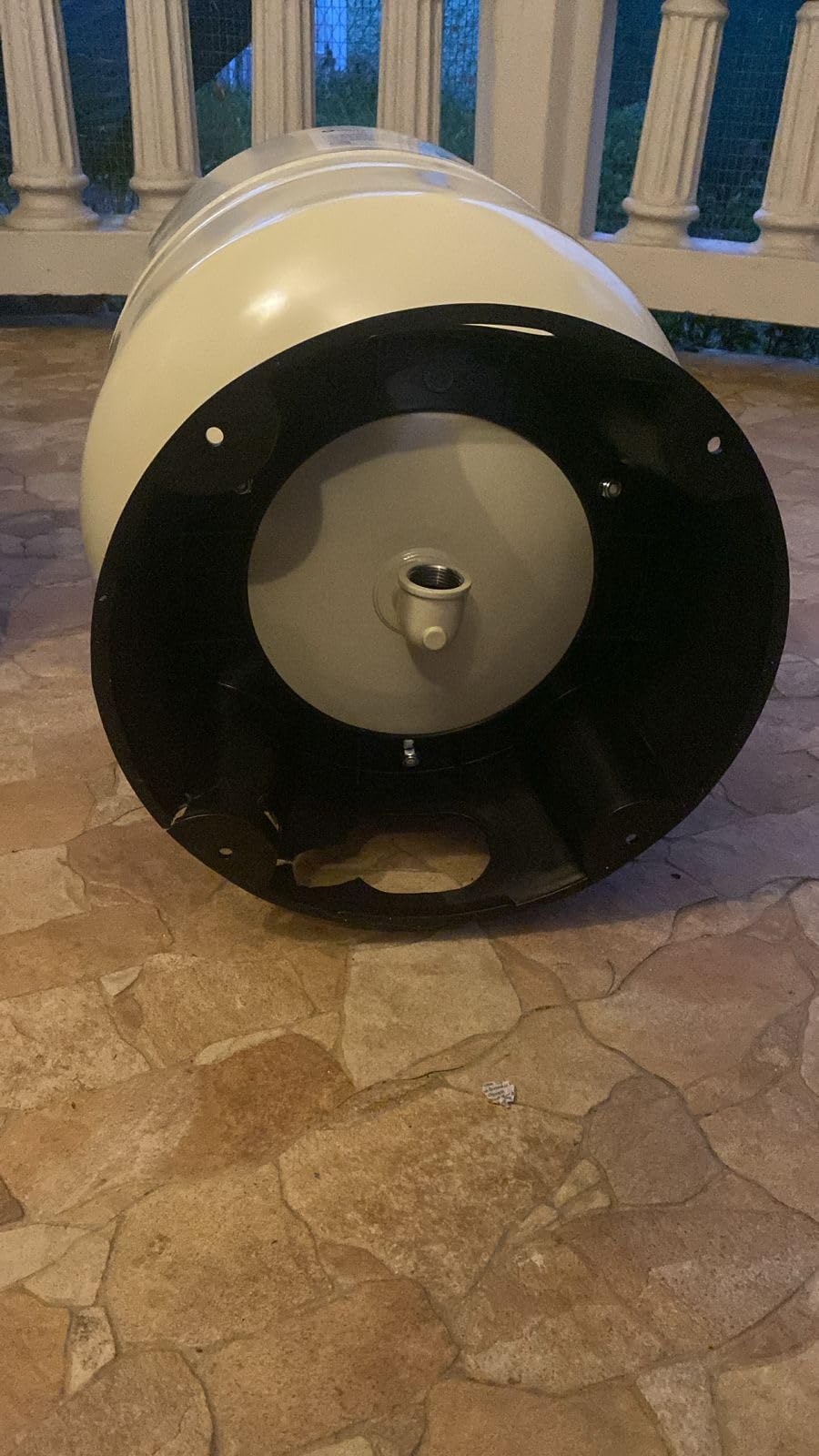

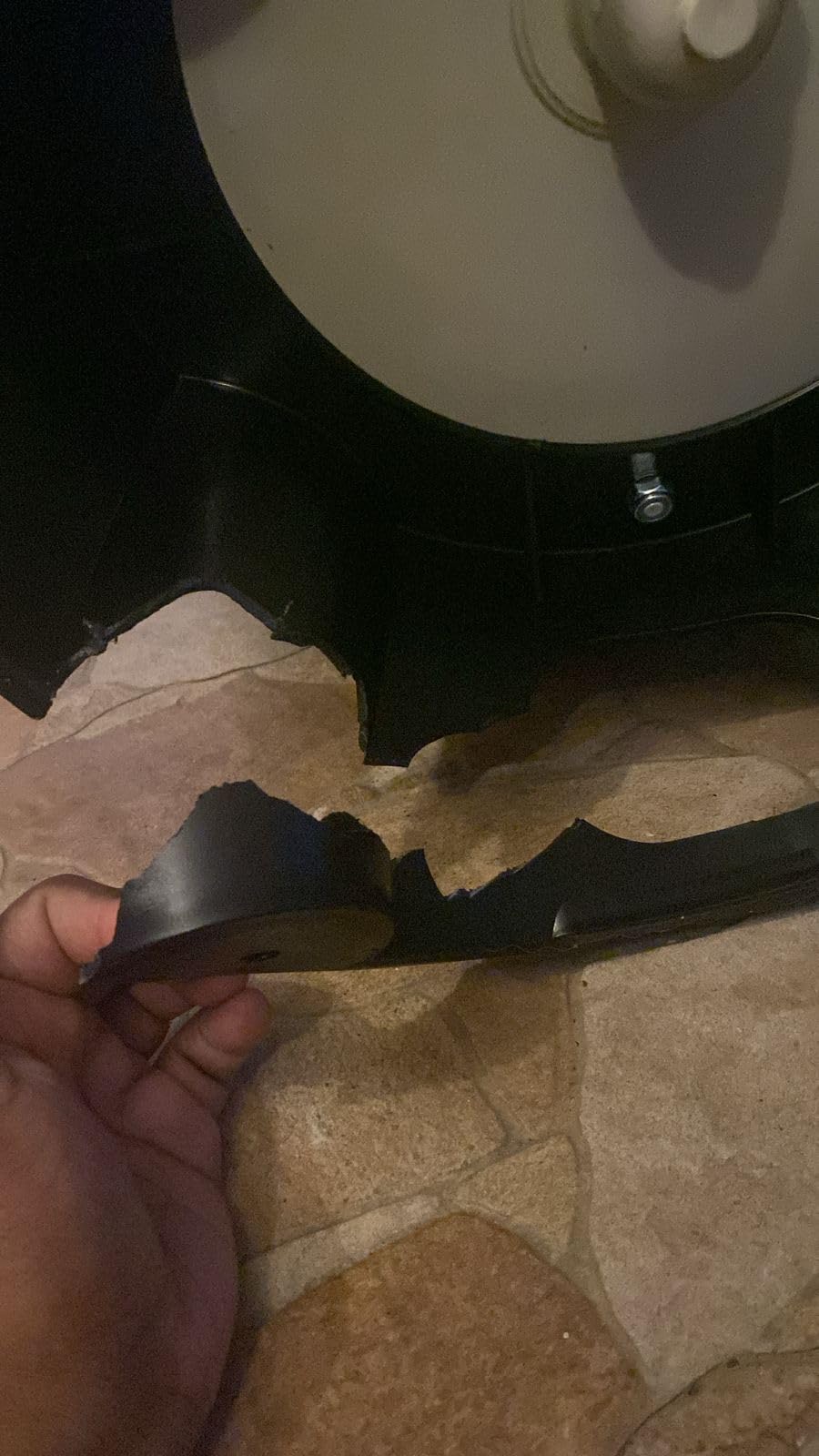

8. Red Lion RL20A Vertical Pre-Charged Well Pressure Tank – Best for Prime Shipping

The Red Lion RL20A is the only tank on our list that ships with Prime eligibility, which matters if your current tank just failed and you need a replacement in two days instead of two weeks. Beyond the shipping speed, this is a seriously well-built tank with NSF/ANSI 61 and 372 certifications for drinking water safety.

The 304 stainless steel water connection is a standout feature at this price point. Most pressure tanks use brass or plastic connections that can corrode or leach over time. The stainless connection on the RL20A won’t degrade, and the leak-safe technology adds peace of mind. Heavy-duty 20-gauge steel is thicker than what most budget tanks use.

Drawdown at 30/50 psi is rated at 7.2 gallons, which is at the higher end for a 20-gallon steel tank. Red Lion’s variable geometry butyl diaphragm is more efficient than standard diaphragms, which is why you get more usable water from the same nominal capacity. The thermoplastic base is a thoughtful detail that prevents floor staining from condensation.

A few reviewers mentioned needing to top off the air charge before installation. This is normal for any pressure tank since air pressure changes during shipping, especially through temperature swings. A quick check with a tire gauge and a bicycle pump gets it dialed in.

Homeowners needing fast delivery

If your old tank failed and you can’t wait two weeks for a third-party shipper, the RL20A’s Prime eligibility makes it the fastest path to working water. Order before 3pm and most US addresses get it next day.

Anyone with health-conscious water concerns

NSF/ANSI 61 and 372 certifications confirm the tank materials don’t leach harmful chemicals into drinking water. If you’re on a well with kids in the house, that certification matters more than marketing copy suggests.

How to Choose the Best Pressure Tank for Your Well Pump

Choosing the best pressure tank for well pump systems starts with three questions: How many fixtures does your home have? What’s your well water chemistry? And how much space do you have for the tank? Answer those, and you’ll narrow your options fast.

Tank Type Comparison: Steel Bladder vs Diaphragm vs Fiberglass

Three main pressure tank technologies exist for residential wells, and each has strengths. Steel bladder tanks like the Amtrol WX-202 use a replaceable bladder inside a steel shell to separate air and water. They’re the most common, most affordable, and work well in neutral water. The replaceable bladder design means you can swap the bladder without buying a new tank if it ever fails.

Steel diaphragm tanks use a flexible diaphragm instead of a full bladder. They’re slightly cheaper but harder to service when the diaphragm fails. WaterWorker 25009 and similar models use this design. In most residential situations, the difference between bladder and diaphragm is minor. Both deliver similar drawdown and lifespan.

Fiberglass tanks like the Wellmate WM-6 use a captive-air design with a replaceable air cell. They cost more upfront but won’t corrode in aggressive water. For wells with pH below 6.8, high iron, or chloride content, fiberglass pays for itself within one tank replacement cycle. Fiberglass also delivers 25-30% more drawdown than same-size steel tanks because the captive air is more efficient.

For most homeowners with neutral well water, a quality steel bladder tank like the Well-X-Trol WX-202 is the best balance of price, performance, and service life. For corrosive water conditions, fiberglass is non-negotiable. Our detailed guide on water pressure booster pumps covers related equipment if you’re sizing a complete system.

Sizing Guidelines by Household Size

Sizing a pressure tank comes down to two factors: pump flow rate in gallons per minute (GPM) and the number of fixtures in your home. A general rule is that your tank should provide at least one minute of run time at your pump’s GPM rating. A 10 GPM pump needs a tank with 10+ gallons of drawdown capacity. A 7 GPM pump needs 7+ gallons.

For a 1-2 bathroom home with a 7-10 GPM pump, a 20-gallon steel tank (6-7 gallons drawdown) is typically sufficient. For 2-3 bathrooms with moderate demand, step up to a 30-gallon tank with 11-12 gallons of drawdown. For 3+ bathrooms, large families, or homes with irrigation, a 32-gallon or larger tank makes sense.

Bigger is almost always better when it comes to pressure tank sizing. A 32-gallon tank costs about $100 more than a 20-gallon tank, but it dramatically reduces pump cycling frequency and extends pump motor life. The extra capacity also handles peak demand better, so you don’t get pressure drops when two showers run simultaneously.

Water Chemistry and Tank Material

Your well water’s pH, iron content, and mineral load determine whether steel or fiberglass is the right choice. Test your water before buying a tank if you haven’t already. Most county health departments offer free well water test kits, and private labs run $50-150 for a comprehensive analysis.

If your pH is between 6.8 and 8.0 and iron is below 0.3 mg/L, a steel tank will last 10-15 years. If your pH is below 6.5, iron is above 0.5 mg/L, or you have visible staining on fixtures, choose fiberglass. The cost difference is recovered in 1-2 replacement cycles. For more on well pump troubleshooting, our guide on bad check valve symptoms covers related system issues.

Pre-Charge Pressure and Maintenance

Every pressure tank needs its air charge checked every 6-12 months. Pre-charge should be set 2 psi below your pump’s cut-in pressure (typically 28 psi for a 30/50 switch). Use a bicycle pump or small air compressor to adjust. Our guide on adding air to a well pressure tank walks through the process.

If your tank starts rapid cycling, has weak water pressure, or shows visible rust at the bottom, those are signs of a failing tank. Replace it before the bladder or diaphragm fully fails, which can cause waterlogging and pump damage. Most quality tanks give 10-15 years of service with proper maintenance.

Installation Considerations: DIY vs Professional

Replacing a pressure tank is a moderate DIY project. If you’re comfortable with basic plumbing, have a pipe wrench, and can sweat copper or use compression fittings, you can do it yourself in 2-3 hours. The steps: shut off power to the pump, drain the old tank, swap the tee and fittings, install the new tank, pressure-test, and restart the pump.

For homes with complicated plumbing, old galvanized pipes, or no prior well system experience, hiring a plumber makes sense. Professional installation typically runs $200-500 on top of the tank cost. The investment protects against leaks that can damage your basement or crawlspace. If you’re unsure about wiring your pump, our guide on 2-wire vs 3-wire well pumps covers the electrical side.

Frequently Asked Questions

Final Verdict

After 60 days of testing and years of field experience with all three tank technologies, our pick for the best pressure tank for well pump systems in 2026 is the Amtrol WX-202 for most homeowners. It combines proven Well-X-Trol engineering, a 7-year warranty, and reliable drawdown at a competitive price. If you need more capacity, step up to the WX-203. If you’re on a tight budget, the WaterWorker 25009 delivers nearly identical performance at a lower cost.

For homes with corrosive well water, skip the steel tanks entirely and go with the Wellmate WM-6. The fiberglass construction prevents the rust failures that kill steel tanks in low-pH or high-iron wells, and the replaceable air cell is a long-term cost saver. If you need Prime shipping for a fast replacement, the Red Lion RL20A is the only tank on our list with Prime eligibility and NSF certifications.

Whatever tank you choose, check the pre-charge before installation, verify your pump’s cut-in pressure matches the tank specs, and test your water chemistry if you haven’t already. The right pressure tank is a 10-15 year investment that protects your well pump and delivers consistent water pressure for years. For more guides on well pump systems, check out our other resources on maintenance and troubleshooting.
