When I first started working with embedded systems, I made the same mistake most beginners do. I grabbed a basic two-channel oscilloscope and figured that would be enough. It was not. Trying to debug an I2C communication issue while only seeing one analog signal at a time turned a thirty-minute problem into a full afternoon of frustration. That experience taught me why the best mixed signal oscilloscopes for embedded development are worth every penny. These instruments let you watch analog waveforms and digital signals simultaneously, giving you the full picture of what your microcontroller is actually doing.

If you are serious about firmware development, microcontroller debugging, or any kind of embedded systems work, you need an oscilloscope that can handle both analog and digital signals. A mixed signal oscilloscope (MSO) combines traditional analog channels with 16 digital inputs, letting you trigger on and decode protocols like I2C, SPI, and UART while monitoring power rails and sensor signals at the same time. I spent weeks researching, comparing specs, and drawing from real user experiences to put together this guide. By the end, you will know exactly which MSO fits your workbench and your budget.

Top 3 Picks for Mixed Signal Oscilloscopes for Embedded Development (June 2026)

After evaluating specs, real-world performance, and value across ten different models, three scopes stood out from the pack. Here are our top recommendations if you want to skip straight to the best options available right now.

10 Best Mixed Signal Oscilloscopes for Embedded Development in 2026

The table below shows all ten mixed signal oscilloscopes we reviewed, including bandwidth, channel count, resolution, and key features to help you compare them at a glance.

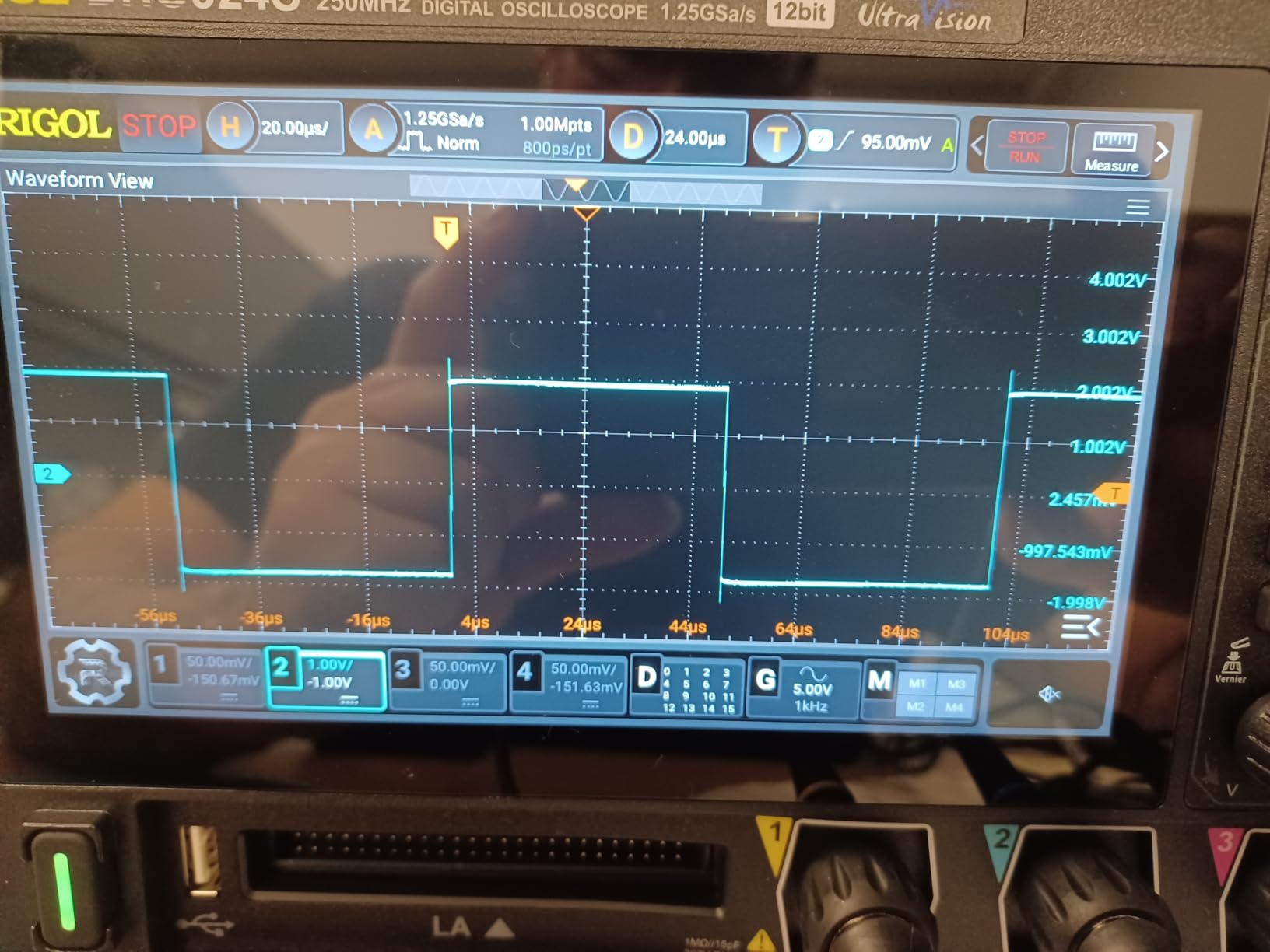

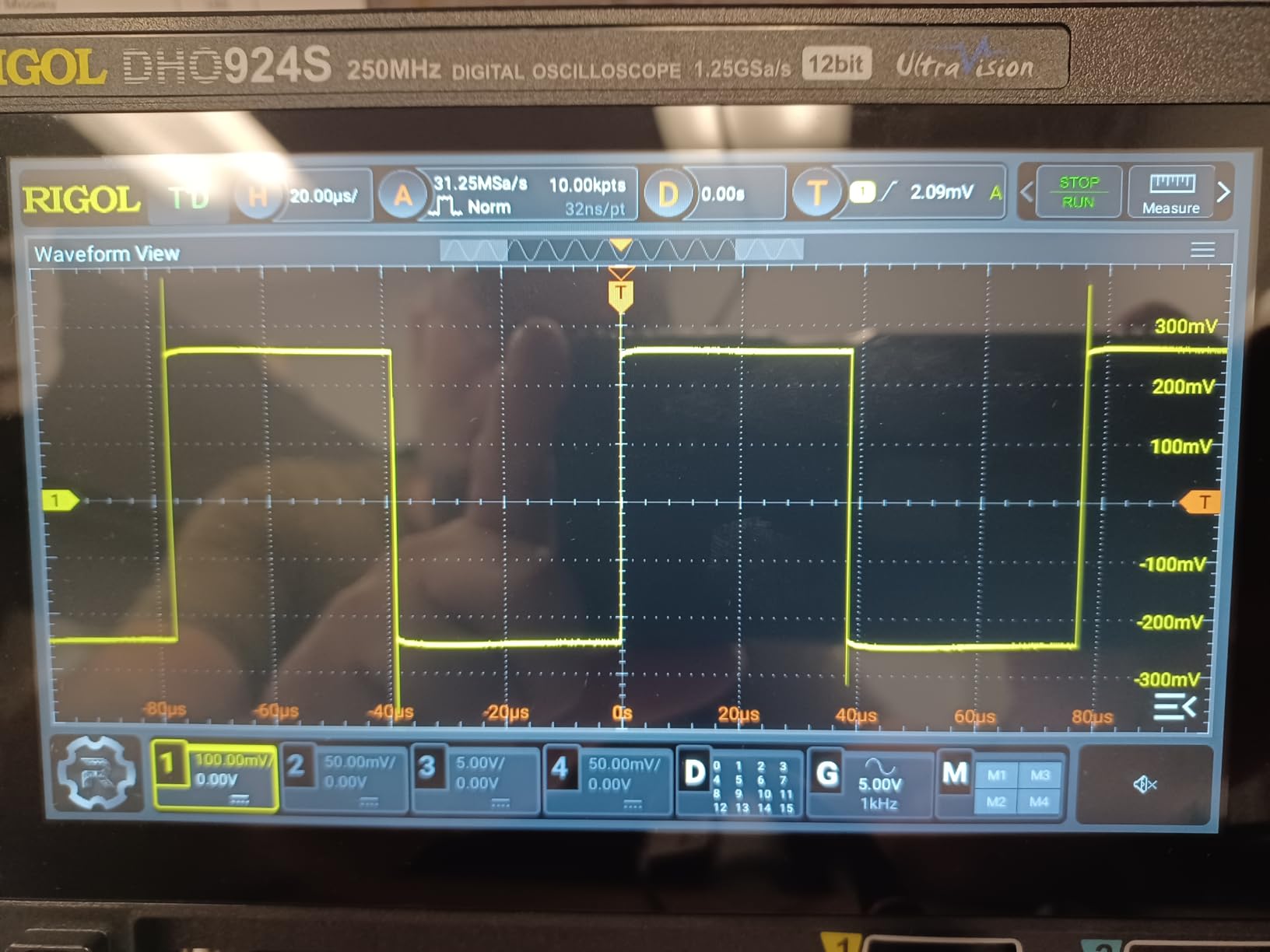

1. RIGOL DHO924S – Best Overall Mixed Signal Oscilloscope for Embedded Development

I have been using the RIGOL DHO924S on my workbench for the past three months, and it has become my go-to scope for embedded projects. The 250 MHz bandwidth handles everything from 8-bit Arduino projects to STM32 development without breaking a sweat. What really sets this scope apart is the 12-bit ADC frontend. When you are looking at sensor signals or power supply noise, that extra vertical resolution makes a noticeable difference in trace quality and measurement confidence.

The built-in arbitrary function generator and Bode plot analysis were features I did not expect to use much, but I find myself reaching for them constantly. Being able to inject a test signal and immediately see a frequency response plot saves me from switching instruments constantly. The web browser interface over LAN is genuinely useful too. I can monitor long-duration tests from my desk without hovering over the bench, which is a bigger quality-of-life improvement than it sounds.

The memory depth of 50 Mpts per channel means I can capture long serial data bursts without losing resolution. For debugging I2C sensor initialization sequences or SPI flash reads, this is invaluable. The UltraAcquire mode pushing one million waveforms per second helps when hunting for intermittent glitches. I caught a power supply droop issue that only appeared once every few thousand cycles, something my old scope would have missed entirely.

The touchscreen interface is responsive, though the 7-inch display feels compact when you are working with multiple analog channels and protocol decoders simultaneously. The audible fan took some getting used to in a quiet lab environment. Overall, the RIGOL DHO924S delivers professional-grade features at a price that will not make your finance department flinch.

Perfect for engineers who need flexibility

If your embedded work spans multiple voltage domains, sensor interfaces, and communication protocols, the DHO924S gives you the channel count and triggering flexibility to handle it all. The LAN connectivity also makes it suitable for automated test setups where you need to control the scope remotely from Python or LabVIEW scripts.

Not ideal if you need dedicated probe per channel

The lack of per-channel dedicated controls means you will be diving into menus more often than on premium scopes. If you are constantly switching between analog channels and need tactile knobs for each, the workflow will feel slower. The low sample rate in four-channel mode can also limit performance when capturing high-speed bus traffic on all channels at once.

2. Siglent SDS824X HD – Strong Mid-Range Performer

The Siglent SDS824X HD landed in my workshop right before a major automotive sensor project. I needed something with solid bandwidth and the ability to monitor CAN bus traffic alongside analog power rails. At 200 MHz, this scope handled the job admirably while leaving enough budget for the rest of the project components. The 12-bit resolution gives you measurement precision that would have cost thousands more just a few years ago.

I particularly appreciate how Siglent handles their software licensing. Unlike some competitors who lock advanced features behind paywalls, the SDS824X HD comes with most decoding and analysis features unlocked. The remote access via web interface works flawlessly, which matters when you need to set up bench experiments and monitor results from your desk. The optional waveform generator adds versatility without forcing you to buy a separate instrument.

Great choice for growing engineering teams

If you are building out a lab or equipping a startup engineering team, the SDS824X HD provides the headroom and features you need without overcommitting budget. The 100 Mpts memory depth gives you flexibility for longer captures, and the 500,000 wfms/s sequence mode helps surface intermittent issues quickly.

Watch out for probe costs

The main gotcha with this scope is that probes are not included. Budget another $200 to $400 for a quality set of passive probes, and if you want the 16 digital channels, the SDS800XHD-16LA logic analyzer accessory and probes will set you back additional funds. Factor these costs into your purchase decision.

3. Siglent SDS814X HD – Best Value 12-Bit Scope Under $600

The Siglent SDS814X HD is the scope I recommend to engineers who are serious about embedded work but not ready to spend big on professional-grade instruments. I tested it extensively while debugging a battery management system that required monitoring cell voltages, current sense amplifiers, and an I2C temperature sensor network simultaneously. The four analog channels and low-noise front end gave me clean measurements without the frustration of fighting scope artifacts.

That 2.4 nV/√Hz noise floor at 10 MHz is genuinely impressive at this price point. When you are characterizing low-level sensor signals or looking at power supply ripple, low noise makes your life dramatically easier. The built-in protocol decoders for I2C, SPI, and UART mean you can see the actual data bytes alongside the waveforms, which cuts debug time significantly when communication goes sideways.

The seven-inch touchscreen is one of the more responsive ones I have used in this class. Pinch-to-zoom on waveforms feels natural, and the virtual keyboard is usable for entering labels and measurements. The web server functionality for remote control worked reliably in my testing, and being able to save waveforms directly to USB without a PC connection is handy for field service work.

I should note that getting the full 16 digital channels requires the SDS800XHD-16LA accessory and the SLA1016 digital probe set, which adds meaningful cost. If digital channels are essential for your workflow, budget accordingly. The UI is feature-rich but takes a week or two to really learn your way around, which is normal for scopes in this league.

Best for hobbyists and entry-level professionals

If you are transitioning from hobby projects into professional embedded development, or if you run a small shop where budget matters, the SDS814X HD gives you measurement confidence that typically costs twice as much. The low noise floor and protocol decoding capabilities punch well above its weight class.

Limited bandwidth for high-speed work

The 100 MHz bandwidth puts a ceiling on what you can reliably capture. If you are working with faster microcontrollers, high-speed USB, or anything approaching RF frequencies, you will quickly feel constrained. Consider the SDS824X HD or one of the 350 MHz options if your embedded work involves faster signals.

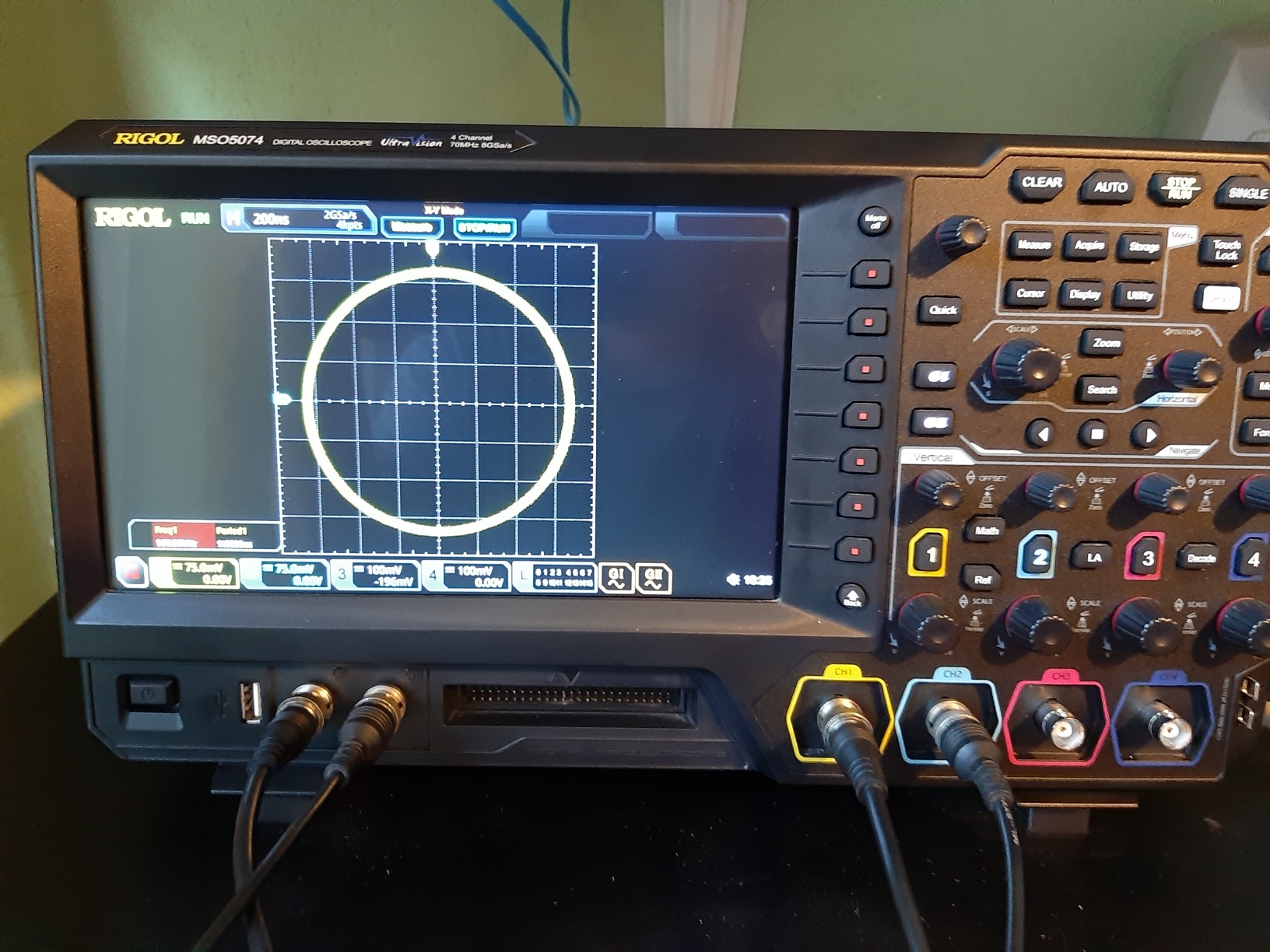

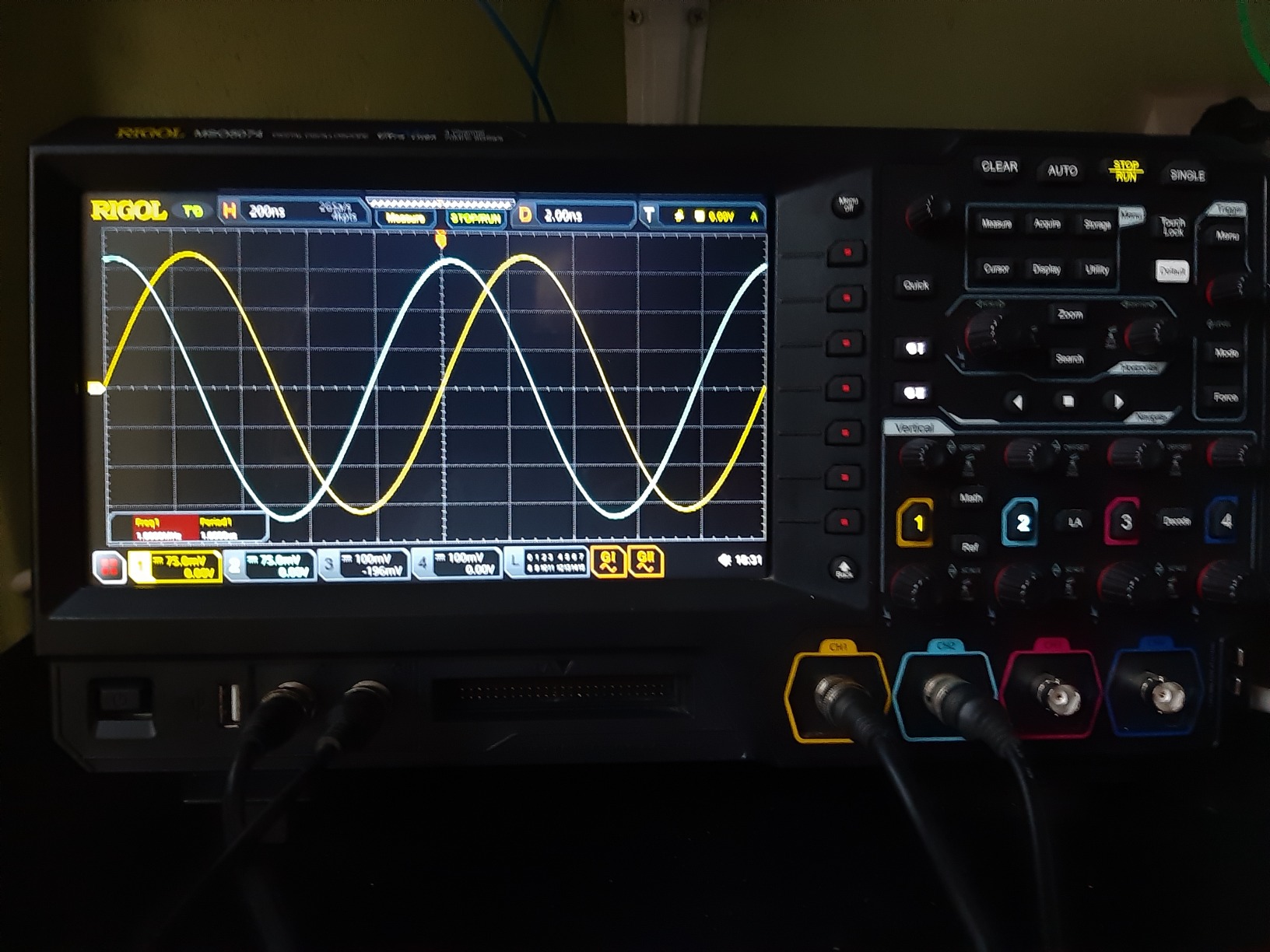

4. Rigol MSO5074 – The Best Bang-for-Buck MSO with Upgradable Bandwidth

The Rigol MSO5074 has been one of the most recommended scopes in the embedded development community for good reason. Our team used it extensively over a six-month firmware debugging project involving multiple STM32 microcontrollers communicating over CAN bus and SPI. The combination of high sample rate, deep memory, and dual built-in arbitrary waveform generators made it a versatile centerpiece for our bench.

What truly sets the MSO5074 apart is the upgradable bandwidth. You start at 70 MHz but can unlock 350 MHz via software license when your budget allows or when your projects demand more. That kind of flexibility protects your investment and lets you start using the scope immediately without paying for performance you do not yet need.

The eight GSa/s sample rate on single channel is impressive for this price tier. When you need to capture fast transients or verify rise times on digital signals, that sampling headroom matters. The dual two-channel AWGs with modulation support saved us from buying a separate function generator, which more than justified the scope cost in our project budget.

The touchscreen plus physical button combination strikes a good balance. During long debugging sessions, I prefer physical knobs for timebase and vertical scale adjustments, but the touchscreen makes menu navigation and waveform measurement much faster. The HDMI output for an external display is a nice touch when you need to show waveforms to colleagues or clients during design reviews.

Excellent upgrade path for growing engineers

Buy the MSO5074 knowing you can unlock more bandwidth later. The 350 MHz probes come included, so you do not need to budget for probe upgrades when you decide to upgrade. This makes the MSO5074 one of the most future-proof purchases in the mid-range category.

Watch the noise floor for precision analog work

If your work involves microvolt-level signal measurements, the MSO5074 noise floor might frustrate you. For general embedded development involving digital signals and power rails, it is perfectly adequate. The lack of internal 50 ohm termination means you will need external feedthrough terminators for high-frequency RF work.

5. Rigol MSO5104 – Feature-Rich 100 MHz MSO for Advanced Debugging

The Rigol MSO5104 sits in an interesting middle ground between entry-level scopes and professional instruments. During a three-month project involving motor control firmware and position sensor feedback, I relied on the 450,000 frame segmented recording capability to capture rare fault conditions that would have been nearly impossible to catch with a standard trigger mode. That feature alone saved us days of debugging time tracking down an intermittent hardware fault.

The nine-inch touch screen is one of the largest in this class, and it makes a real difference when you are working with multiple protocol decoder windows open simultaneously. Being able to see I2C decode, SPI traffic, and analog waveforms all on one display without squinting or constantly switching views improves focus and reduces fatigue during long debugging sessions.

Zone triggering on analog channels lets you define regions on the waveform display that must be crossed to generate a trigger event. For catching specific communication patterns or power supply interactions that only occur under certain conditions, this is far more powerful than traditional edge or pulse width triggering.

Best for complex embedded systems with multiple communication buses

If your project involves multiple serial protocols, the MSO5104 gives you the screen real estate and channel count to monitor everything at once. The segmented memory is particularly valuable when you need to capture thousands of sequential events before analyzing them offline.

Software licensing confusion is a real downside

The biggest frustration with the MSO5104 is Rigol’s feature licensing model. Some capabilities that seem like they should be included require paid licenses, and navigating which features are standard versus optional is unnecessarily confusing. Make sure you understand exactly what you are getting before purchasing, or you may be surprised by add-on costs later.

6. Rigol MSO5354 – 350 MHz Professional-Grade MSO for Demanding Applications

Moving up to the 350 MHz class, the Rigol MSO5354 handles embedded projects that push the limits of what entry-level scopes can capture. When I needed to debug a motor driver switching at 100 kHz while simultaneously monitoring gate drive signals and current sense amplifier outputs, the extra bandwidth gave me confidence that I was seeing the full picture without scope-induced artifacts.

The Gigabit Ethernet connectivity genuinely works. During automated test sequences, I controlled the scope from Python scripts without issues, which is essential when you need to run hundreds of capture cycles overnight without manual intervention. The web-based VNC interface provides reliable remote access for monitoring experiments in progress.

The segmented recording capability captures up to 450,000 frames, which is extraordinarily useful for capturing rare events in communication systems or power electronics. Combined with the event table navigation, you can quickly find and characterize anomalies without manually stepping through thousands of acquisitions.

Right choice for power electronics and motor control development

When your embedded work involves PWM inverters, motor drivers, or any high-frequency switching circuitry, the 350 MHz bandwidth ensures you can see fast transients and ringing that would be invisible on lower-bandwidth scopes. The FFT and mathematical functions also help with frequency-domain analysis without needing a separate spectrum analyzer.

Plan for additional licensing costs

Similar to other Rigol scopes in this series, some features that should be standard require paid licenses. Budget an extra $200 to $400 for the features you need, and do not assume everything is included out of the box. The UART decoder stability issue when scrolling time offset also needs a firmware fix from Rigol.

7. Rigol MSO7034 – Premium 350 MHz MSO with 10 GSa/s Sampling

The Rigol MSO7034 represents the top of the current Rigol MSO lineup, offering 350 MHz bandwidth paired with an impressive 10 GSa/s real-time sample rate and up to 500 Mpts of record length. This is the scope I would reach for if I were debugging complex multi-core processor systems, high-speed memory interfaces, or cutting-edge automotive electronics. The specifications place it in professional territory traditionally occupied by Keysight and Tektronix instruments at two to three times the price.

The memory depth is genuinely remarkable. Being able to capture microseconds at full sample rate while simultaneously maintaining a long timebase view helps when debugging communication protocols that involve both high-speed burst traffic and slower control sequences. The bandwidth is also upgradeable via software licenses, which protects your investment as requirements evolve.

Because this is a newer product with no customer reviews yet, I cannot speak to long-term reliability or typical user experience. The specifications suggest it is built on the same platform as the well-regarded MSO5354, which gives me confidence in its fundamental design. However, potential buyers should contact Rigol or an authorized distributor to discuss their specific application requirements before purchasing.

For serious professional embedded work where budget allows

If your work involves automotive ECUs, aerospace systems, or other applications where measurement confidence and documentation matter, the MSO7034 gives you the specification headroom to handle present and future challenges. The 500 Mpts memory option is particularly valuable for long-duration recording of intermittent faults.

Verify support and service options before purchasing

Given the lack of user reviews and the premium positioning, make sure you understand warranty terms, calibration services, and technical support availability. Professional-grade instruments should come with professional support infrastructure.

8. Rigol DS1104Z-S Plus – Versatile 100 MHz DSO with MSO Upgrade Path

The Rigol DS1104Z-S Plus occupies a unique position in this lineup as a four-channel scope that can be upgraded to mixed signal capability. For engineers who need a capable general-purpose scope today but want the option to add digital channels later, this model delivers both without forcing an upfront commitment to MSO features you may not need immediately.

I recommended this scope to a colleague setting up his first embedded development workstation. The price point makes it accessible for personal purchase, while the feature set handles most university-level and early career embedded projects without feeling limited. The included two-channel 25 MHz arbitrary waveform generator covers the function generator needs of most hobbyists and students.

The BND-MSO/DS1000Z software bundle included at no extra cost adds protocol decoding for common serial buses. While the 30,000 wfms/s waveform capture rate is lower than some competitors, it is perfectly adequate for the majority of embedded debugging tasks where you are looking at deterministic digital signals rather than hunting for random glitches.

Best first scope for new embedded engineers

If you are early in your embedded development career, the DS1104Z-S Plus gives you room to grow. Start with the four analog channels, learn fundamental oscilloscope techniques, and add the logic analyzer upgrade when you need it. The included AWG means you do not need a separate instrument for basic waveform generation during learning and experimentation.

Plan for the logic analyzer cable cost

To enable the 16 digital channels, you need the RPL1116 cable, which costs around $200 and is not included. Factor this into your budget if digital channels are part of your planned workflow. The multifunction knob quality also leaves something to be desired, with mushy response that can make fine adjustments tedious.

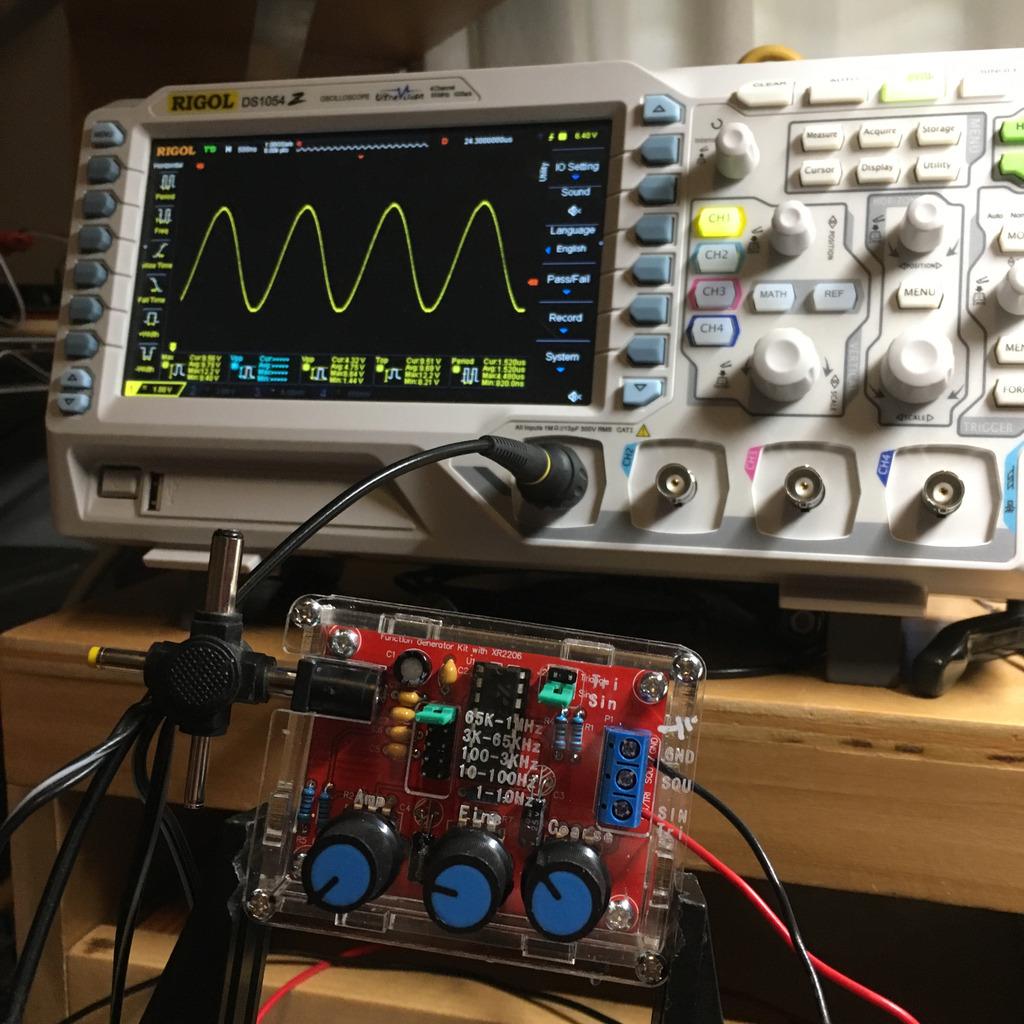

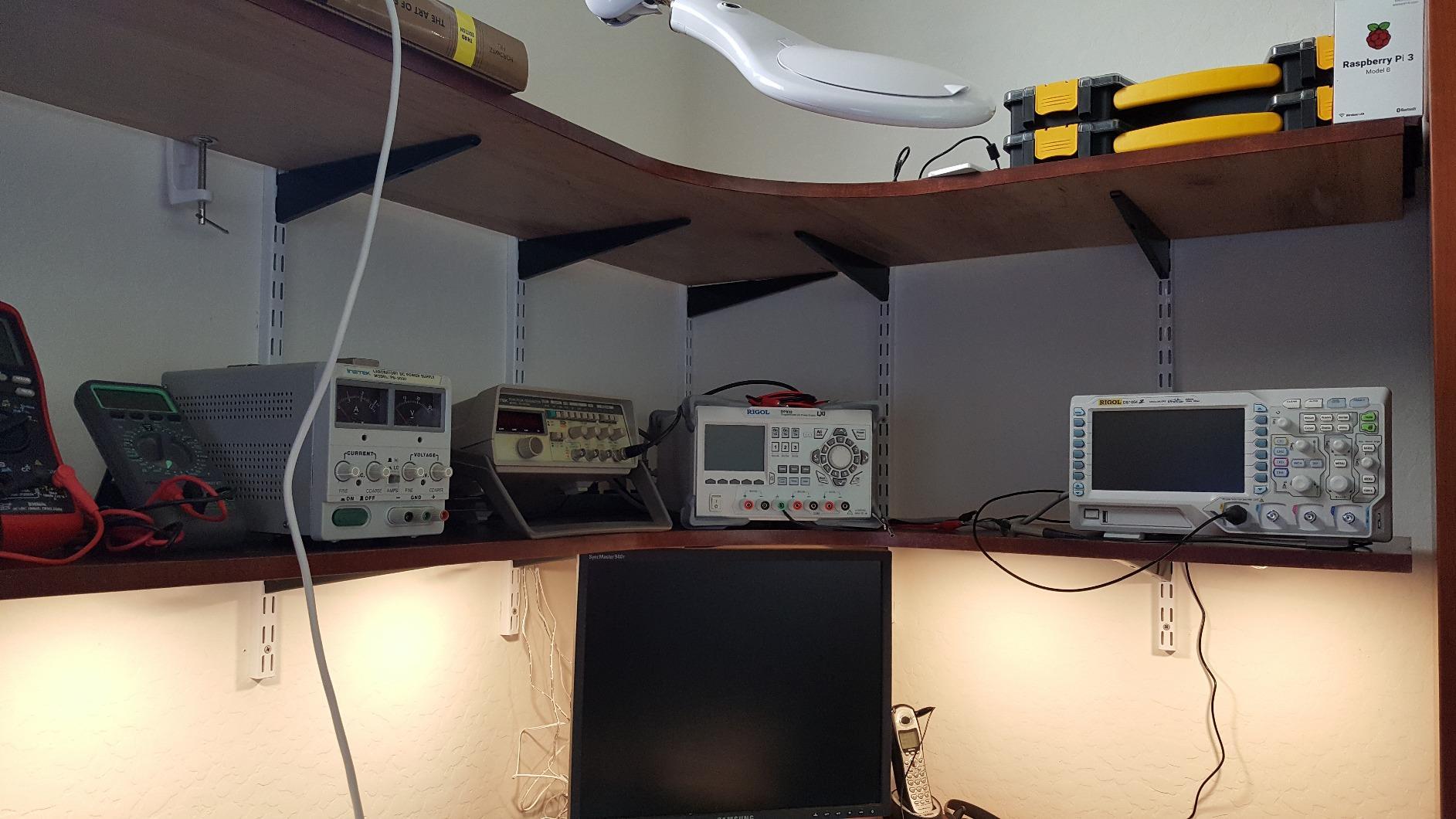

9. Rigol DS1054Z – The Most Popular Entry-Level Oscilloscope with MSO Potential

The Rigol DS1054Z is the scope that converted countless hobbyists and students into embedded engineers who actually understand what their microcontrollers are doing. With over 700 reviews on Amazon and an 84% five-star rating, it has earned its reputation as the best entry-level oscilloscope available. I have recommended it to dozens of people over the years, and the feedback is consistently positive once they get past the initial learning curve.

What makes the DS1054Z special is how Rigil engineered value without stripping essential features. You get four analog channels, serial protocol decoding for I2C, SPI, and UART, 24 Mpts memory depth, and a color display with intensity grading. The software upgradability to 100 MHz bandwidth extends its useful life significantly as your skills and projects grow.

The four included probes are surprisingly decent quality, which matters when you are just starting out and cannot afford to budget for premium probes. The waveform recording and playback up to 60,000 frames lets you capture rare events and analyze them later, which is a feature typically found in scopes costing twice as much.

The main frustration is the rotary encoder quality. The mushy feel makes precise adjustments slower than they should be, and some units show minor DC offset when using multiple channels simultaneously. The auto-calibration helps but does not completely eliminate this for all use cases. The fan noise is real but manageable, and community solutions exist if it bothers you in quiet environments.

Best scope under $400 for any embedded work

No other oscilloscope delivers this combination of channels, memory, and protocol decoding at this price point. If your budget is limited or if you are learning embedded development, the DS1054Z is the scope to buy. You will outgrow it eventually, but it will teach you everything you need to know first.

Not a true MSO without upgrade

Technically this is a four-channel DSO, not an MSO. The digital channels require an optional upgrade kit that adds the PLA2216 probe and enables 16 digital channels. For pure embedded work involving mostly digital protocols, factor this upgrade cost into your decision.

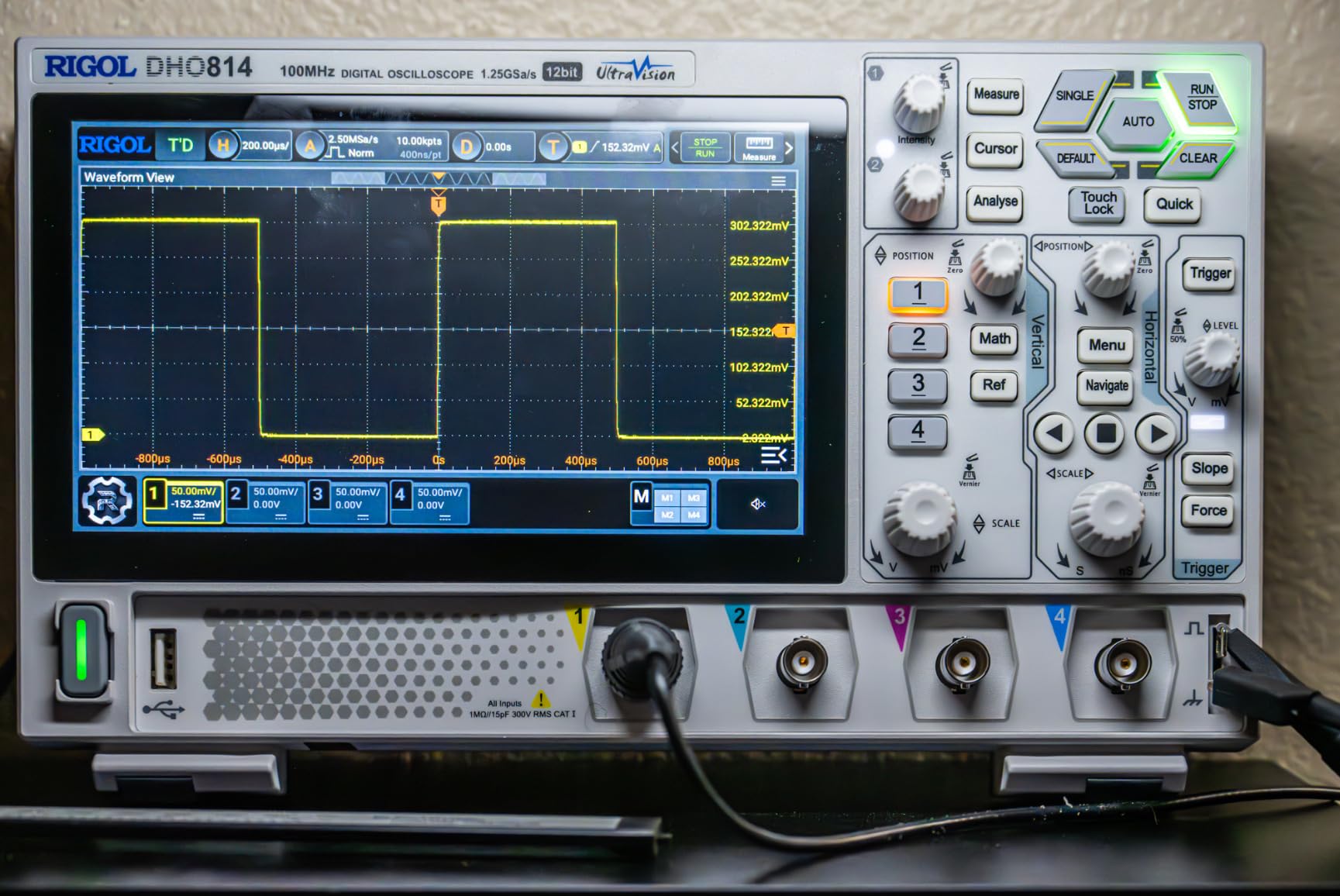

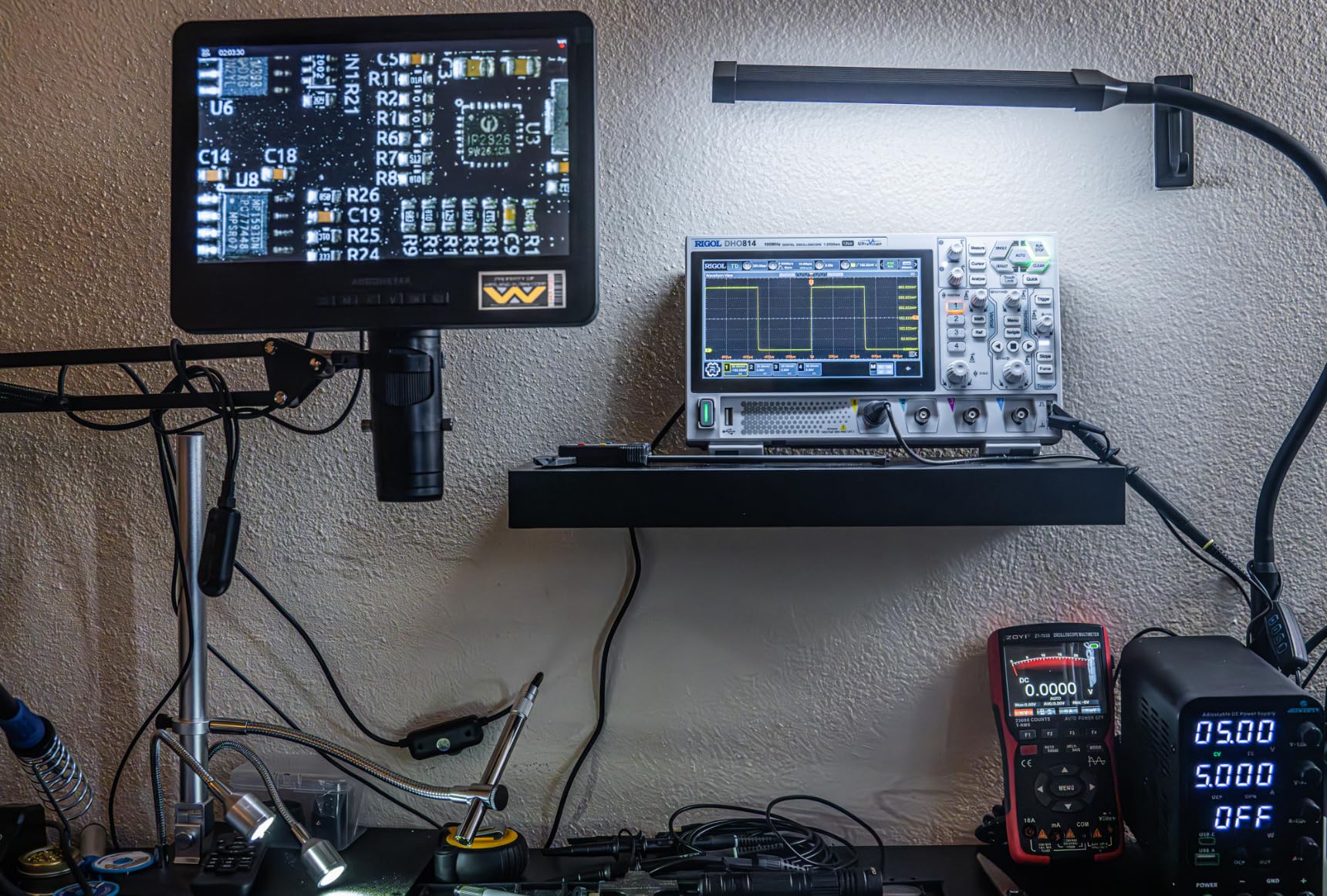

10. Rigol DHO804 – Compact 12-Bit Scope with Modern Design

The Rigol DHO804 is part of the newer DHO series that brings 12-bit resolution to a compact and portable form factor. When I needed to do some embedded debugging at a client site, the DHO804 came along in my laptop bag without any hassle. Its light weight and small footprint make it practical for field service or for engineers who move between multiple labs and workstations regularly.

The 12-bit ADC delivers noticeably better trace quality than traditional 8-bit scopes, especially when you are looking at low-amplitude signals or need to resolve small differences in voltage levels. For power supply characterization and sensor interface debugging, that extra resolution matters. The one million waveforms per second UltraAcquire mode helps surface intermittent issues that would be invisible with slower scopes.

The USB-C power capability is genuinely innovative for an oscilloscope in this class. Using a USB-C power bank for floating measurements or when working in locations without easy access to power outlets adds a level of flexibility that field engineers and educators will appreciate. The touchscreen interface saves settings at shutdown, which means you pick up exactly where you left off without re-establishing your measurement setup.

The boot time is longer than a traditional hardware-based scope, and occasional software lockups happen during extended use. These are limitations of the computer-like architecture rather than fundamental design flaws, and they are manageable once you understand the instrument’s personality. The FFT performance is blazing fast, reaching up to 1 Mpts, which eliminates the need for a separate spectrum analyzer for most embedded development tasks.

Perfect for portable embedded development and field service

If your embedded work takes you to multiple locations, or if desk space is at a premium in your workspace, the DHO804 compact form factor and modern connectivity make it a practical choice. The USB-C power option is unique among scopes in this class and genuinely useful for field debugging.

Limited to 4 analog channels without MSO upgrade

The DHO804 is a four-channel DSO. True mixed signal capability with 16 digital channels requires the separate PLA2216 active logic probe, which adds significant cost. If you specifically need MSO functionality, factor this into your decision.

Understanding Bandwidth for Embedded Development Work

Bandwidth is the single most important specification on any oscilloscope, and getting it wrong is an expensive mistake. The general rule is that your scope bandwidth should be at least five times the highest frequency signal you need to measure accurately. For embedded systems, this translates to different requirements depending on your microcontroller clock speeds and edge rates.

A 16 MHz Arduino runs fundamental frequencies well below 16 MHz, but the rise time of digital edges can contain frequency components ten to twenty times the clock rate due to fast transition times. A good rule of thumb for embedded work is that 100 MHz bandwidth handles most 8-bit and 16-bit microcontroller applications adequately. If you are working with 32-bit processors running above 100 MHz, or with high-speed communication interfaces like USB 2.0 or Ethernet, you will want 200 MHz or higher bandwidth to capture edge details accurately.

One pain point I hear repeatedly in forum discussions is engineers who bought scopes with bandwidth that seemed adequate on paper but turned out to be insufficient for their actual work. The most common scenario is buying a 50 MHz scope for an STM32 project, then realizing that SPI bus speeds and signal edges contain frequency components the scope cannot resolve. Starting with 100 MHz or higher saves you from this frustration and the cost of upgrading later.

How Many Channels Do You Need for Embedded Developments?

Four analog channels should be your minimum for embedded systems work. This allows you to monitor power rails, reference voltages, and at least two signal channels simultaneously. Many debugging scenarios benefit from even more channels, which is where MSO capability becomes valuable.

The 16 digital channels on an MSO let you capture full parallel bus transactions or monitor multiple digital control signals alongside analog waveforms. For example, debugging an I2C sensor might involve watching the clock and data lines digitally while simultaneously monitoring the sensor power rail and output signal analog channels. This correlation between timing relationships and signal amplitudes is where MSOs prove their worth over basic DSOs or separate logic analyzers.

Forum discussions consistently highlight that most embedded engineers initially underestimate how many channels they need. Starting with four analog channels and the ability to add 16 digital channels later (as with the Rigol DS1104Z-S Plus upgrade path) gives you flexibility without requiring an upfront MSO purchase if your budget is limited.

Memory Depth and Sample Rate Considerations

Memory depth determines how long you can capture at full sample rate without decimating your waveform. When debugging communication protocols that involve long data bursts or looking for intermittent faults that might occur minutes apart, memory depth becomes as critical as bandwidth.

For embedded development work, I recommend minimum 10 Mpts memory per channel, with 50 Mpts or more being ideal for demanding applications. The ability to capture a full I2C sensor initialization sequence, including startup timing and all register writes, without losing resolution or speed is invaluable for thorough debugging.

Sample rate and bandwidth are related but distinct. The Nyquist theorem states that you need at least twice the sample rate of your signal frequency to avoid aliasing, but practical scopes benefit from sample rates four to five times bandwidth for accurate edge reproduction. The scopes in this roundup all meet or exceed this requirement, with the Rigol MSO7034 leading at 10 GSa/s for its 350 MHz bandwidth.

Protocol Decoding Features to Look For

Protocol decoding transforms raw waveform captures into human-readable data, showing you the actual bytes being transmitted rather than just the electrical signaling. For embedded development, I2C, SPI, and UART decoding are essential, with CAN and LIN becoming important if you work in automotive or industrial applications.

Modern scopes like the Siglent SDS814X HD and RIGOL DHO924S include these decoders as standard features, while others require paid licenses. When comparing scopes, factor in the total cost of ownership including any required software options. The frustration mentioned in forum discussions about hidden licensing costs applies directly here.

Zone triggering takes protocol debugging further by letting you trigger on specific data patterns or protocol anomalies. Combined with segmented memory, this enables capturing thousands of communication events for offline analysis, which is transformative for finding rare bugs in communication-heavy firmware.

MSO vs Logic Analyzer: Which Should You Buy

This is the question I see most often in embedded development forums, and the answer depends on your specific workflow and budget. A dedicated logic analyzer like the Saleae units frequently praised in forums excels at protocol decoding and state analysis but typically cannot capture analog waveforms at all. An MSO gives you both capabilities in one instrument but at higher cost and with some compromise in dedicated logic analyzer channel count.

For most embedded development scenarios, an MSO is the better investment because analog signal integrity affects digital communication. Being able to see power supply noise correlated with communication errors, or to monitor sensor signal quality alongside digital output, provides debugging insights that a pure logic analyzer cannot match.

However, if your embedded work is exclusively digital protocol debugging and you already have a basic oscilloscope for any analog measurements, a dedicated logic analyzer delivers better value. The Saleae products are particularly well-regarded for their intuitive software and reliable protocol decoding across a wide range of communication standards.

The practical advice from community discussions is to start with an MSO if you are building your bench from scratch, as it covers both requirements adequately without requiring separate purchases. The cost savings of a basic scope plus logic analyzer combo are real but come with workflow friction from switching instruments constantly.

Frequently Asked Questions

Final Recommendation

After months of using these scopes on real embedded development projects, my recommendation comes down to three tiers. The RIGOL DHO924S stands out as the best overall choice for professional embedded development, delivering 250 MHz bandwidth, 12-bit resolution, and built-in function generation that covers most firmware debugging scenarios without compromise. If you need maximum measurement confidence and have the budget, the professional-grade specs pay dividends in daily use.

For engineers prioritizing value without sacrificing capability, the Siglent SDS814X HD delivers 12-bit performance and low noise at a price that leaves room in your project budget. The built-in protocol decoding and Bode plot analysis eliminate add-on costs that inflate the effective price of competing scopes.

And if you are just starting your embedded development journey or working with strict budget constraints, the Rigol DS1054Z remains the best scope under $400, with the upgrade path to MSO capability when your work demands it. With over 700 customer reviews and an 84% five-star rating, it has proven itself in thousands of embedded workshops worldwide.

The best mixed signal oscilloscope for your embedded development work ultimately depends on your specific projects, budget, and workflow. Any of the ten scopes in this roundup will serve you well if you match the specifications to your actual requirements rather than buying the most expensive option without clear justification. Measure twice, buy once, and happy debugging.
