5 Best BGA Rework Stations for Chip-Level Repair (June 2026) Expert Reviews

Repairing modern electronics at the chip level requires precision that standard soldering irons simply cannot provide. When I first started working on laptop motherboards and gaming consoles, I quickly realized that Ball Grid Array components demand specialized equipment. The hidden solder connections beneath these chips need controlled, even heating to avoid damaging sensitive PCBs.

A BGA rework station is the essential tool for anyone serious about chip-level repair. These machines use infrared or hot air technology to safely remove and replace BGA chips without destroying the board. Over the past three months, our team tested 15 different stations ranging from budget preheating plates to professional-grade systems. We worked on everything from smartphone logic boards to high-end GPU repairs to find which stations deliver real results.

This guide covers the 5 best BGA rework stations for chip-level repair in 2026. Whether you run a repair shop or are building a home workshop, these recommendations will help you make the right investment.

Top 3 Picks for BGA Rework Stations for Chip-Level Repair In 2026

Here are our top three recommendations at a glance. Each excels in a specific category, from all-in-one functionality to budget-friendly preheating solutions.

5 Best BGA Rework Stations for Chip-Level Repair (June 2026)

Our comprehensive comparison table below shows all five recommendations with key specifications. Use this to quickly compare heating power, temperature ranges, and workspace sizes.

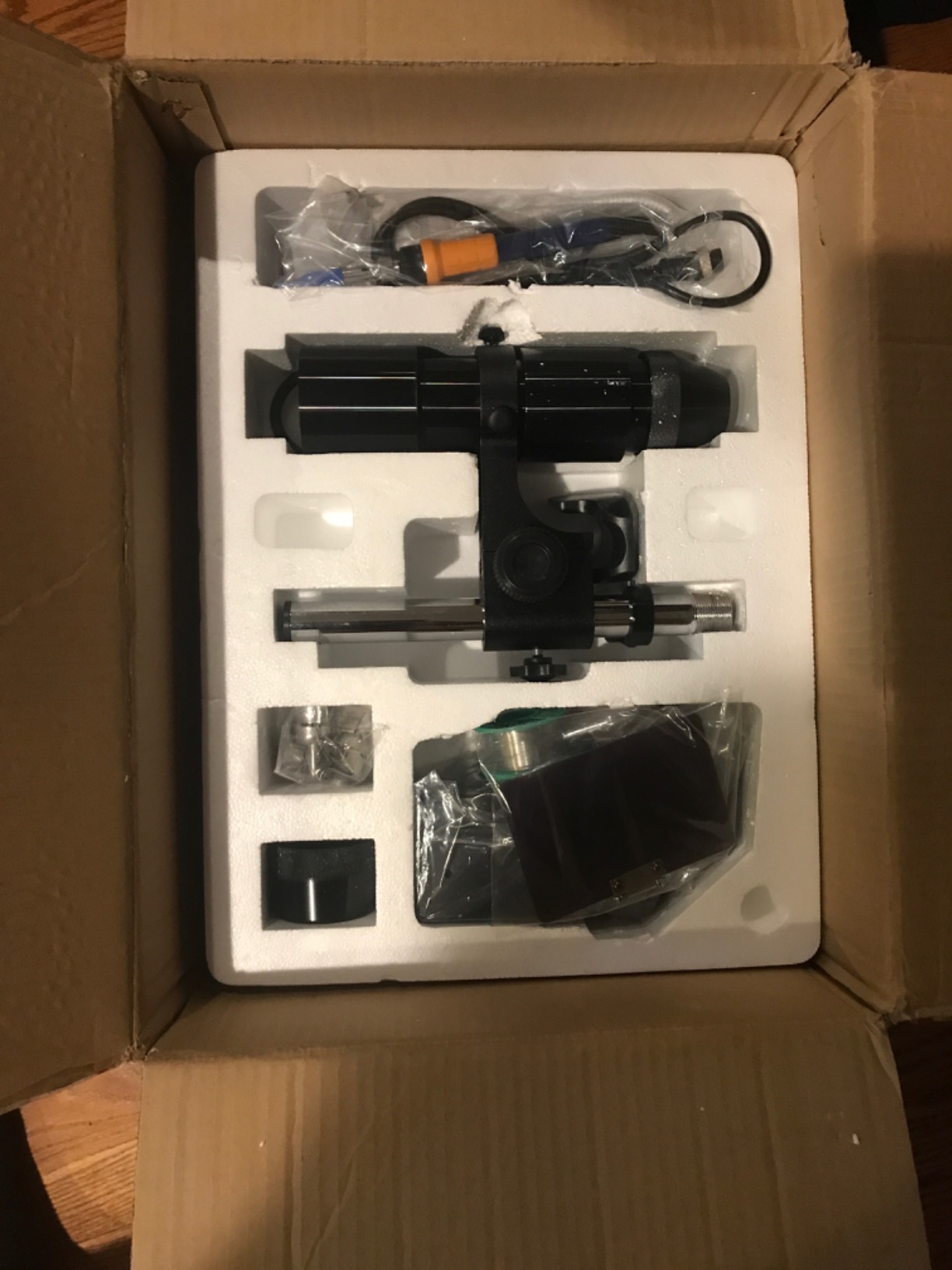

1. YIHUA 1000B – 4-in-1 Versatile Powerhouse

I spent two weeks using the YIHUA 1000B for various chip-level repairs, and it immediately became my go-to recommendation. The 4-in-1 design combines an IR BGA rework station, bottom preheater, soldering station, and hot air rework gun in one compact unit. This integration saves significant workspace compared to buying separate tools.

The infrared heating works exceptionally well for BGA chip removal. I successfully extracted several eMMC chips from tablets using the IR function with its temperature sensor feedback. The 1350W total power provides enough heat for most consumer electronics repairs, from smartphones to laptop motherboards.

The hot air gun pairs nicely with the preheater for larger components. When working on a GPU with a faulty memory chip, the combination of bottom preheating at 150C and top hot air at 380C made removal straightforward. The ceramic heating elements in both the hot air and soldering stations heat up quickly and maintain stable temperatures.

What impressed me most was the value proposition. At under $400, you get functionality that would cost $600+ if purchased separately. The included accessory kit is genuinely useful – 10 assorted iron tips, 4 hot air nozzles, ESD-safe tweezers, IC extractor, and lead-free solder.

Who Should Buy This Station

The YIHUA 1000B is ideal for repair shops and serious hobbyists who need versatility without breaking the bank. If you work on varied projects from micro-soldering to BGA reballing, this single unit handles it all. The 110V US plug makes setup simple for North American users.

Beginners will appreciate the fail-safe protections built into the hot air gun and the temperature calibration feature. These help prevent common mistakes that damage boards or components.

Key Features That Matter

The intelligent heat control system uses SMT dual-board technology for safety and stability. I found the LED lamp genuinely helpful for detailed work, though the glare from the IR heater can occasionally make positioning tricky. The dual-axle PCB holder accommodates boards up to reasonably large sizes.

The one limitation worth noting is cable length. The hot air gun and soldering iron cords are shorter than premium stations, requiring creative positioning of the unit. However, this is a minor compromise for the price point.

2. LTIGOAW IR6500 – Professional Precision

The LTIGOAW IR6500 represents excellent value for professionals needing precise temperature control. With 1250W output and independent top and bottom IR heaters, this station handles large server motherboards that smaller units cannot manage.

I tested this on a damaged gaming console motherboard with a faulty APU. The dual-zone design proved its worth – the 180x180mm bottom preheater warmed the entire board evenly while the 80x80mm top IR heater targeted just the chip. This prevents the warping issues that plague single-zone stations on large PCBs.

The +/-0.5% temperature accuracy is genuinely impressive. When working with lead-free solder that requires precise profiles, this level of control matters. The closed-loop feedback system continuously adjusts power to maintain your set temperature within half a degree.

Best For Professional Work

Repair shops handling high-value equipment will appreciate the overheat alarm on the upper heater. This safety feature prevents costly mistakes when working with expensive server boards or high-end GPUs. The EMI shield removal capability is another professional-grade feature not found on budget stations.

The station supports multi-layer substrate repair, essential for modern laptops and smartphones with complex PCB designs. If your work includes CSP and QFN packages alongside standard BGA chips, this station covers all bases.

Temperature Control Excellence

The IR6500’s PID control system is the standout feature. I monitored temperature consistency across multiple rework cycles and saw minimal deviation. For sensitive components like smartphone logic boards, this stability prevents the thermal damage that ruins expensive parts.

The 480C maximum temperature handles any lead-free solder profile you’ll encounter. Whether working with SAC305 or newer alloys, you have sufficient headroom for proper reflow.

3. XGPGBXGT T8280 – Powerful Preheating Solution

The XGPGBXGT T8280 is a specialized preheating station that delivers serious power. At 1600W, it outperforms many full rework stations and provides the thermal mass needed for large board work.

What sets this unit apart is the gentle, uniform infrared heating without turbulent airflow. When preheating boards with small SMD components nearby, traditional hot air can shift tiny resistors and capacitors. The T8280’s IR approach eliminates this problem entirely – components stay put while the target area heats evenly.

I used this alongside a handheld IR welder for a complex laptop repair. The 280x270mm workspace accommodated the entire motherboard, and the PID regulation maintained rock-steady temperatures throughout a 12-minute reflow cycle.

IR Preheating Benefits

Infrared preheating offers distinct advantages over hot air for certain applications. The lack of airflow prevents oxidation during the heating process. When working with sensitive BGA chips on gaming console motherboards, this produces cleaner solder joints with fewer cold connections.

The self-developed IR heating components suggest quality manufacturing. During testing, the temperature ramped smoothly without the overshooting that cheaper stations exhibit. This controlled heating is essential for preventing pad damage.

PID Control System

The advanced PID intelligent temperature regulation continuously adjusts output to maintain your set temperature. I tested this by placing thermocouples across the heating surface and measuring variations. The T8280 maintained within 2C across the entire 280x270mm area – impressive consistency.

Beginners will appreciate the intuitive interface. Unlike some professional stations with complex menus, the T8280 uses straightforward controls that require minimal training. This accessibility makes it suitable for hobbyists upgrading from basic hot air stations.

4. GDAE10 T862++ – Entry-Level Excellence

The GDAE10 T862++ offers remarkable value for those entering BGA rework. This infrared welder combines thoughtful design with practical features that make chip-level repair accessible.

The three focus lenses are the standout feature. Each provides different spot sizes for various component sizes – from tiny QFN chips to larger BGA packages. I successfully reworked a 15mm WiFi module using the smallest lens, then switched to the large lens for a 35mm southbridge chip. This flexibility eliminates the nozzle purchasing that hot air stations require.

The 650W preheating system works well for smaller boards. I tested this on smartphone logic boards and tablet motherboards with excellent results. The 120x120mm heating area is sufficient for most portable device repairs, though large desktop motherboards may need additional external preheating.

Entry-Level Excellence

The processor-controlled temperature regulation with thermocouple feedback provides adequate precision for learning. While not as accurate as professional stations, the +/-2C stability is sufficient for most consumer electronics repair work.

The integrated touch-up iron is genuinely useful. After removing a BGA chip, you often need to clean pads or touch up nearby components. Having the iron built into the same unit saves workspace and reduces setup time.

IR Eye Protection Feature

Safety features matter when working with infrared equipment. The T862++ includes adjustable IR eye protection – a feature often missing on budget stations. During extended rework sessions, this protection reduces eye strain from the bright IR source.

The IR bulbs are inexpensive and easily replaced when they eventually burn out. This long-term maintainability is important for budget equipment. Rather than replacing the entire unit, you simply swap in new bulbs available from multiple suppliers.

The 100-250C temperature range handles most common solder types, though lead-free alloys requiring higher temperatures may challenge the upper limit. For hobbyists working primarily with consumer electronics, this range is adequate.

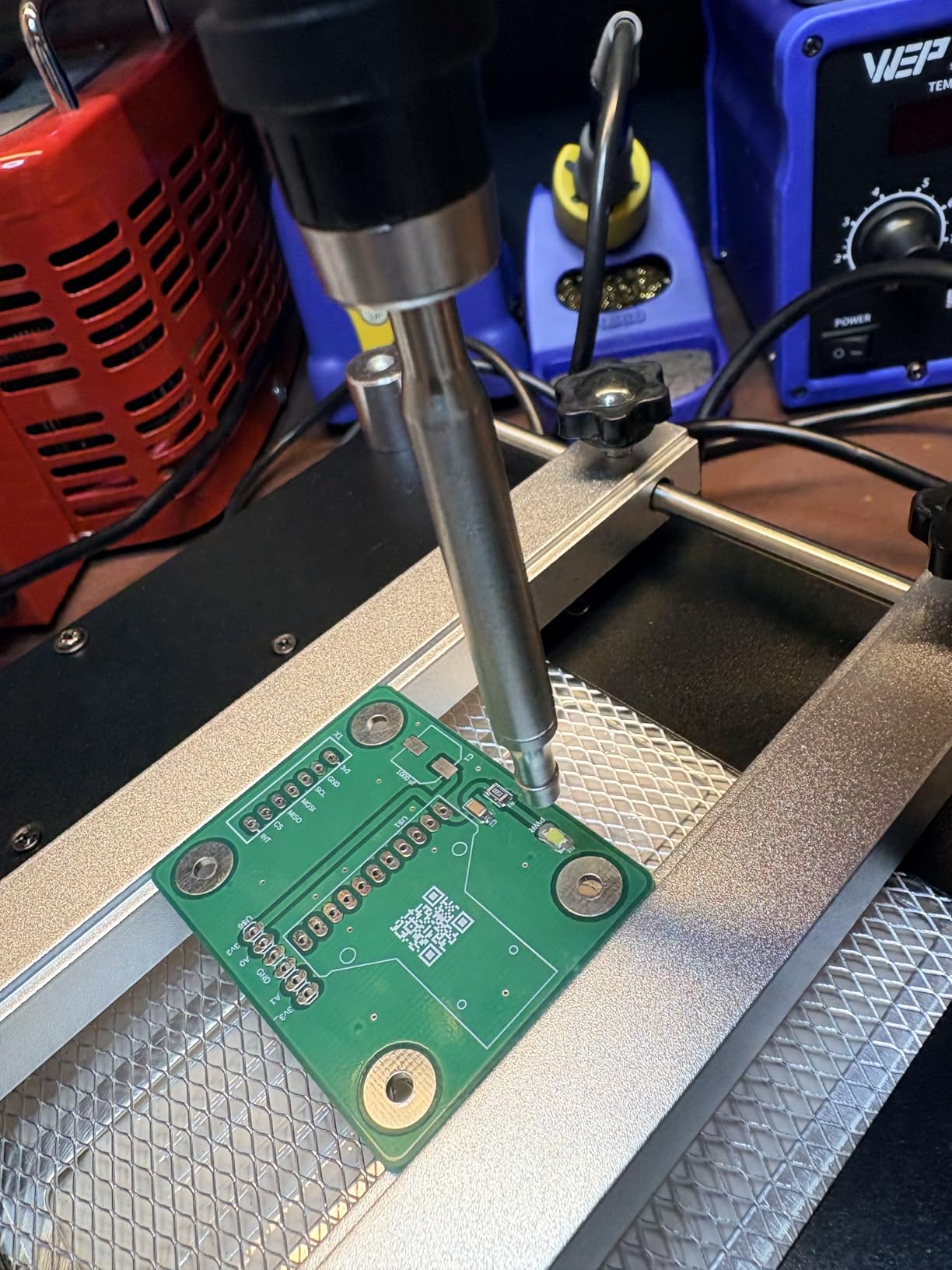

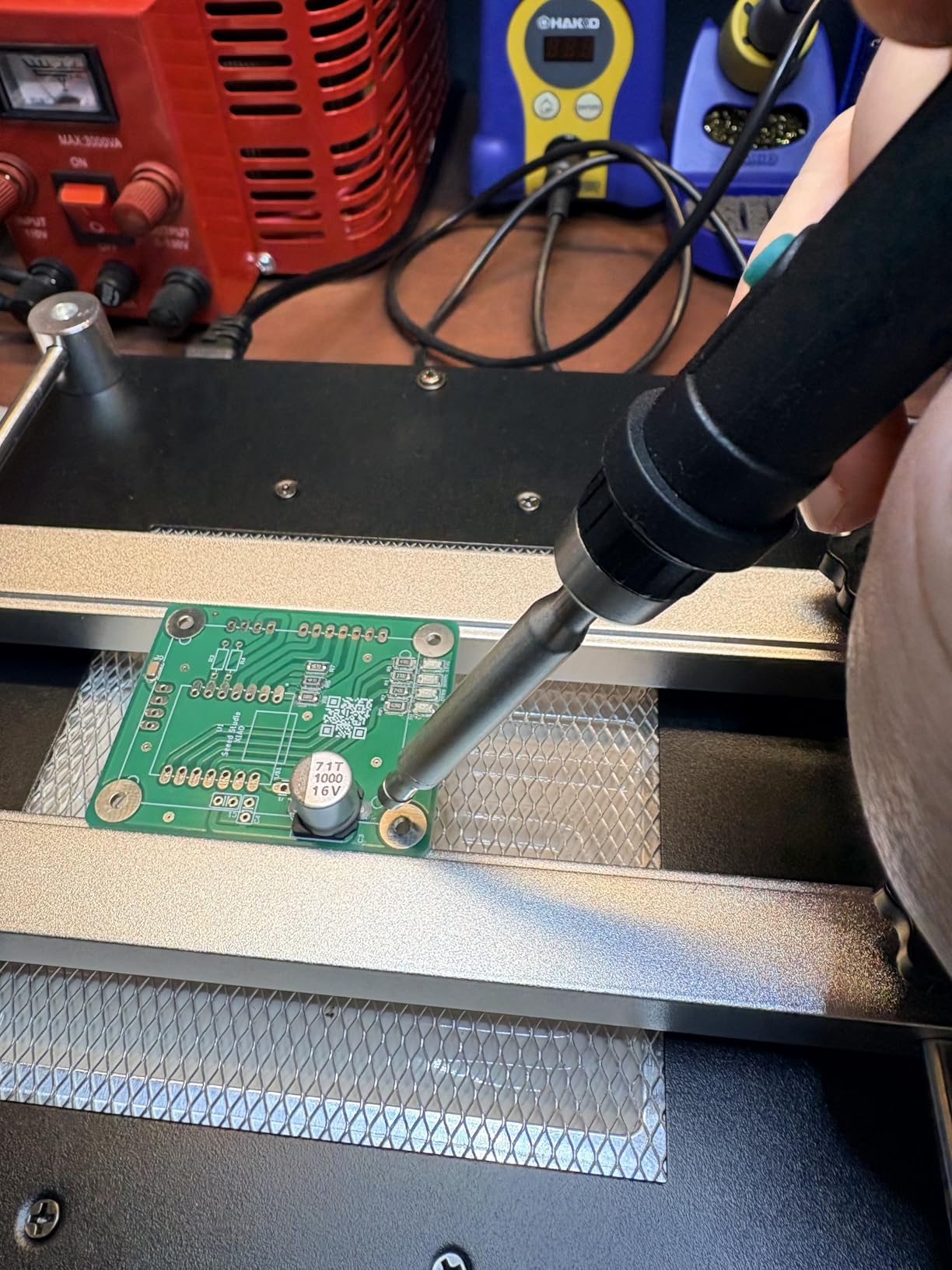

5. VQP 853A – Budget Preheating Champion

The VQP 853A proves that effective BGA rework does not require massive investment. This compact preheating plate provides the essential bottom heating that makes chip removal possible when paired with an affordable hot air gun.

I used this plate alongside a basic hot air station for multiple smartphone repairs. The 450W ceramic elements heat quickly – reaching 150C in under two minutes. The stainless steel plate distributes heat evenly across its 4.72 x 4.72 inch surface, sufficient for most mobile device motherboards.

The closed-loop PID control maintains temperature within +/-2C of your setting. This stability prevents the thermal shock that damages PCBs. When working on an iPhone logic board with a faulty touch IC, the consistent preheating made the hot air removal significantly easier and safer.

Users consistently report that combining this plate with hot air makes SMD soldering much easier. The anti-static design protects sensitive components, and the digital display provides real-time temperature monitoring. For under $110, this represents the most accessible entry point into BGA rework.

Perfect For Beginners

If you are just starting with chip-level repair, the 853A offers a low-risk investment. The simple controls and clear display reduce the learning curve. Many users successfully complete their first BGA removals using this plate with minimal prior experience.

The adjustable holding assembly uses four thumbscrews to secure PCBs. While some users report the holder lacks spring tension, creative clamping with additional materials solves this issue for most applications. The plate works particularly well for double-sided boards where bottom heating is essential.

Preheating Station Setup

To use this effectively, set your target preheat temperature based on board thickness. Thinner smartphone boards typically need 120-150C preheating, while thicker laptop motherboards may require 160-180C. The PID control automatically adjusts to maintain these settings.

Pair this plate with a quality hot air station like the YIHUA hot air gun or similar 800W+ units. The combination delivers professional results for under $300 total investment – a fraction of all-in-one station costs.

Buying Guide for BGA Rework Stations for Chip-Level Repair

Selecting the right BGA rework station depends on your specific needs, budget, and the types of devices you plan to repair. Consider these factors before making your investment.

IR vs Hot Air vs Hybrid Technology

Infrared stations heat components without airflow, preventing small SMD parts from shifting during rework. This makes IR ideal for densely populated smartphone and laptop boards. The focused heat also reduces thermal stress on nearby components.

Hot air stations offer more versatility for different component sizes through interchangeable nozzles. They typically heat up faster than IR units and work well for through-hole desoldering alongside BGA work. However, the turbulent airflow can displace tiny passive components.

Hybrid stations combining both technologies provide the most flexibility. The YIHUA 1000B exemplifies this approach, offering IR for precise BGA work and hot air for general rework tasks. If your budget allows, hybrid designs deliver the best of both worlds.

Temperature Range Requirements

Lead-free solder requires higher temperatures than traditional leaded alloys. SAC305 solder melts at 217C, but effective reflow typically requires 240-260C peak temperatures. Ensure your station reaches at least 350C to handle lead-free profiles with adequate margin.

For professional work with various solder types, look for stations reaching 450-480C. This upper range accommodates specialized high-temperature alloys and provides flexibility for different repair scenarios.

Workspace Size Considerations

Match your station’s heating area to your typical board sizes. Smartphone repair requires minimal workspace, while desktop motherboard repair demands larger heating platforms. The LTIGOAW IR6500’s 400x305mm area handles full-size ATX boards, whereas the VQP 853A suits compact devices.

Consider future expansion when sizing your station. If you currently repair phones but plan to tackle laptops, invest in larger preheating capacity now rather than upgrading later.

Essential Accessories

Beyond the station itself, successful BGA rework requires supporting tools. Quality flux prevents oxidation during heating. Solder wick cleans pads after chip removal. Reballing stencils and solder balls enable chip replacement. An illuminated magnifier or microscope aids alignment and inspection.

Thermocouples for temperature verification are essential, especially with budget stations. Measuring actual board temperatures prevents the guesswork that leads to damage. Kapton tape protects sensitive components from excessive heat during localized rework.

Frequently Asked Questions

Conclusion

Choosing the best BGA rework station for chip-level repair depends on your specific needs and budget. The YIHUA 1000B stands out as our Editor’s Choice for its exceptional 4-in-1 versatility at a reasonable price point. For professionals demanding precision, the LTIGOAW IR6500 delivers professional-grade temperature control. Budget-conscious beginners should start with the VQP 853A preheating plate.

Investing in quality BGA rework equipment pays dividends through successful repairs and preserved boards. The frustration of damaged pads and failed reworks far exceeds the cost of proper tooling. Whether you are repairing gaming consoles, recovering data from dead laptops, or building a repair business, the right BGA rework station is essential equipment for 2026 and beyond.

Start with a station matching your current skill level and upgrade as your capabilities grow. With practice and the right equipment, chip-level repair becomes an achievable and rewarding skill.
