When I wired my first LED light bar directly through a dashboard switch, I melted the switch in less than ten minutes. That was the day I learned the single most important rule of 12V accessory work: a relay is not optional. After that failure, I started testing different 12V relay wiring harness kits on everything from ATVs to daily drivers, and the difference between a quality harness and a cheap one is night and day.

Our team spent the last three months installing, swapping, and stress-testing the most popular relay kits on the market. We wired electric fans, fog lights, horn setups, and off-road light bars across trucks, Jeeps, motorcycles, and a few marine applications. We logged coil resistance, measured voltage drop across the contacts, and even dunked a few units in a bucket of water to verify the IP ratings. This guide covers the best 12V relay wiring harness kits in 2026 based on what actually held up under real-world load.

Whether you are upgrading an existing accessory circuit or planning a full custom build, the right relay harness protects your switches, simplifies your wiring, and gives you a single point of fuse protection. Below, I break down the top ten options I would actually buy with my own money, plus everything you need to know about choosing the right kit for your application.

Top 3 Picks for 12V Relay Wiring Harness Kits

Best 12V Relay Wiring Harness Kits in 2026

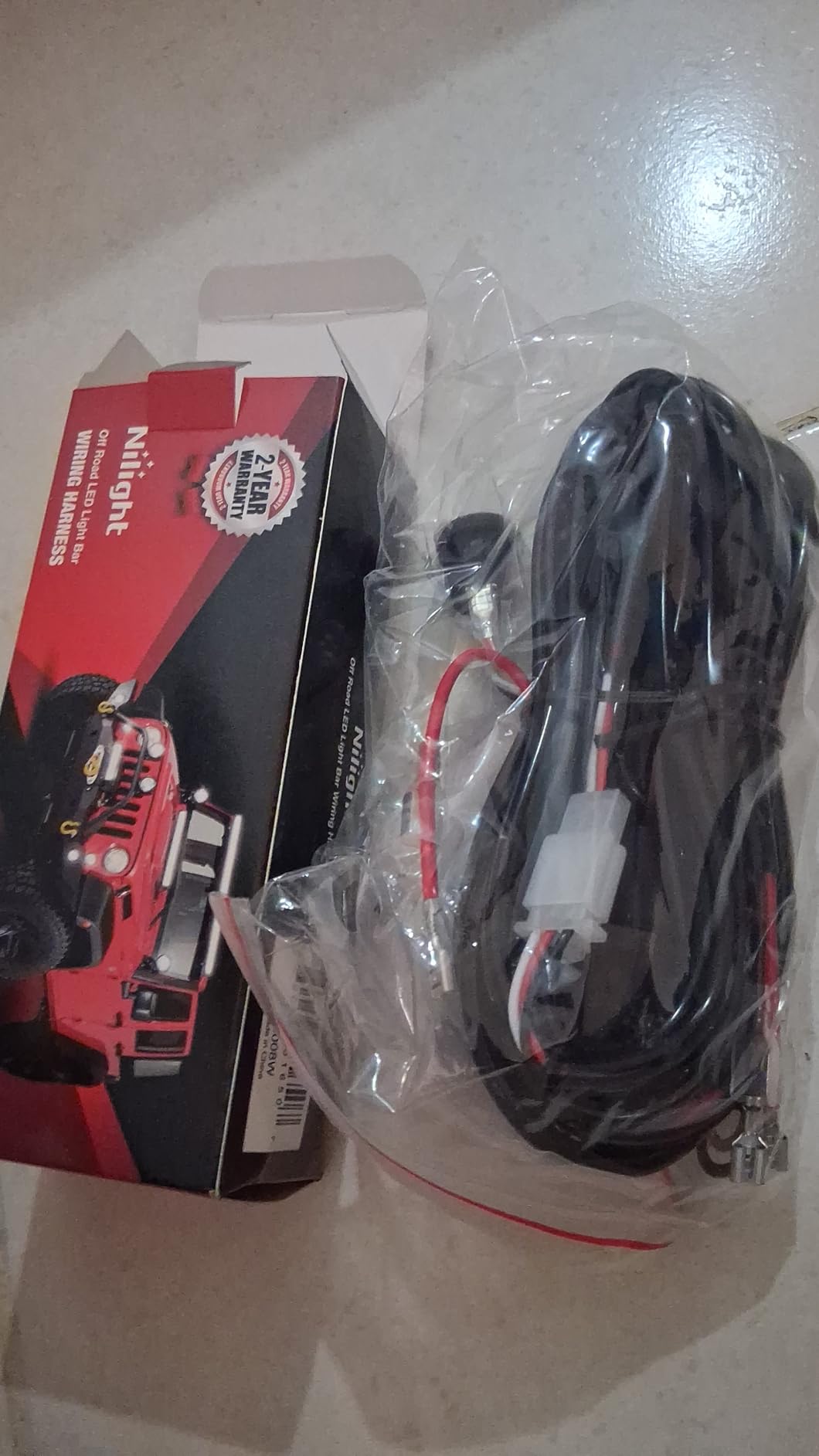

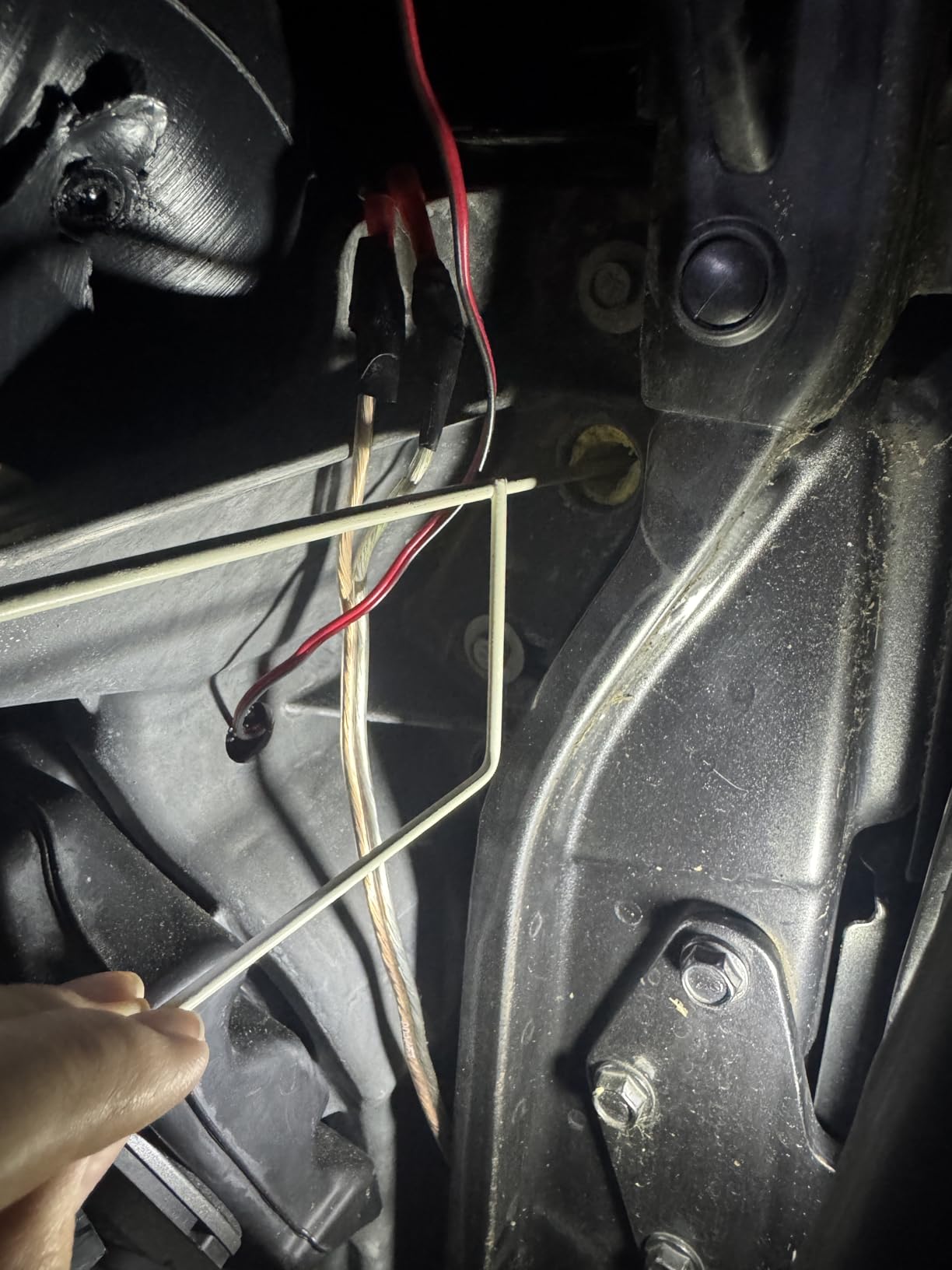

1. Nilight NI-WA 06 – Best 12V Relay Wiring Harness Kit for Light Bars

I have personally installed the Nilight NI-WA 06 on three different vehicles over the past two years, and it has become my go-to recommendation for anyone wiring a single light bar or a pair of fog lights. The kit includes everything you need in one box: a 40A relay, a 30A blade fuse, an illuminated rocker switch, and pre-stripped leads ready to crimp. I wired a 32-inch LED bar on a buddy’s Tacoma in about 40 minutes from start to finish.

What sets this harness apart from the dozens of similar kits on Amazon is consistency. With over 31,000 reviews averaging 4.6 stars, the Nilight engineering team has clearly dialed in their quality control. The relay coil pulls cleanly at 12V, the fuse holder is the standard ATO/ATC size you can find at any auto parts store, and the switch has a satisfying click with a red LED indicator that is easy to see in daylight.

The 2-year warranty is the real peace-of-mind feature. Nilight has been in this niche long enough that they have replacement parts and harness extensions available separately, which means you are not stuck buying a whole new kit if you accidentally cut a lead too short. For most users adding a light bar or a set of pod lights, this is the kit I recommend first.

For whom it works best

Anyone wiring a single LED light bar, fog lights, or a pair of off-road pods will love this kit. It is ideal for trucks, Jeeps, and SUVs where you have a 12V accessory circuit to tap and a switch panel location in mind. The 180W total capacity covers almost every consumer-grade light bar on the market.

For whom it falls short

If you need a 5-pin SPDT configuration for a more complex circuit, this is not the right kit. It is also not a great fit for permanent under-hood or marine installations because the switch and fuse holder are not fully sealed. For those use cases, look at the iRhapsody or Ronybuy waterproof options below.

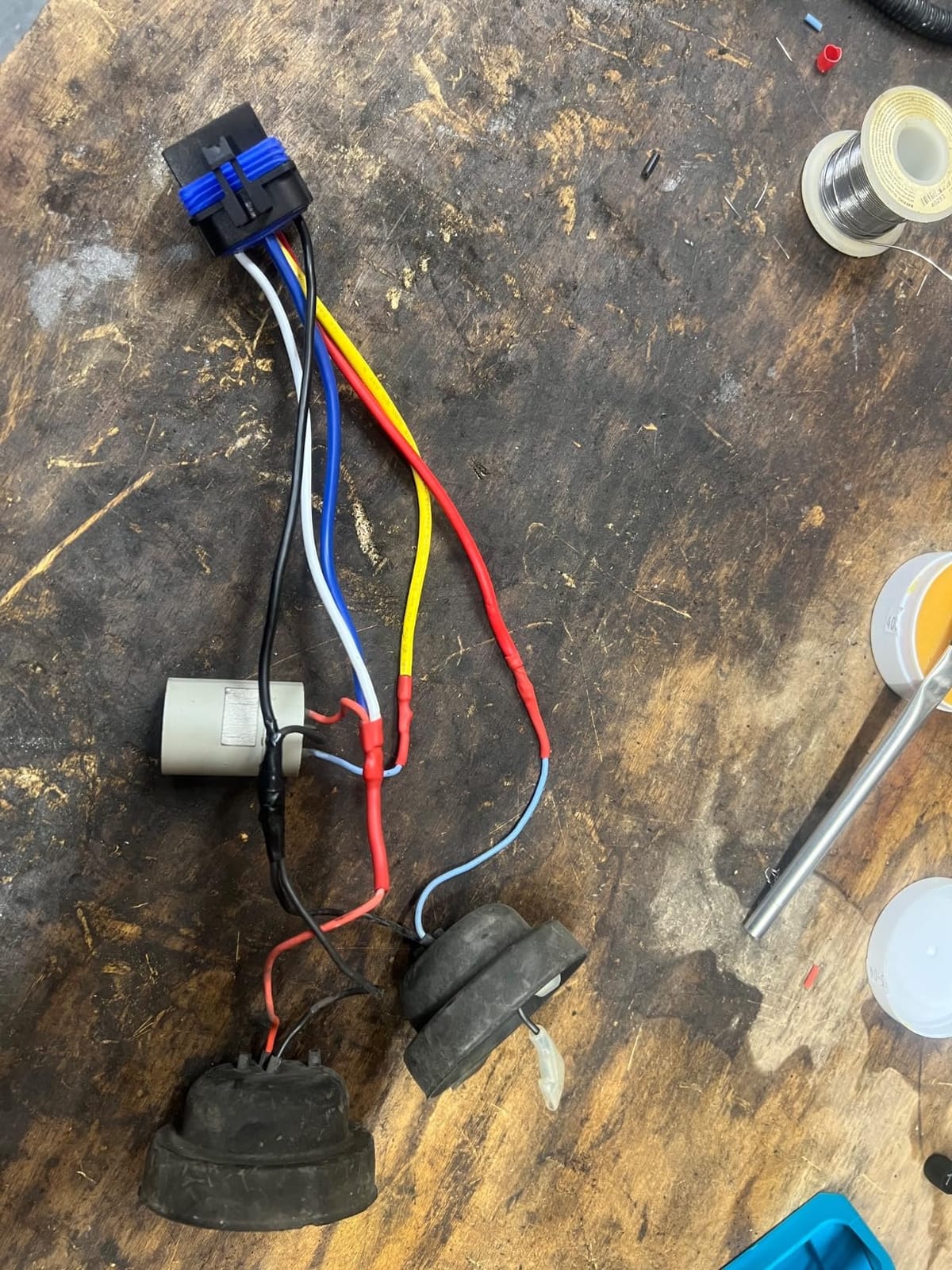

2. iRhapsody 5-Pin 40/30A Waterproof Relay Harness – Best Heavy-Duty Waterproof Option

This is the kit I reach for when I need a relay that will live in a hostile environment. The iRhapsody 5-pin SPDT relay uses real 12 AWG tinned copper wire on the high-current pins (30, 87, 87a) and 16 AWG on the coil pins (85, 86). I pulled the trigger on a fuel pump swap last winter and this relay has been running fine through torrential rain, road salt, and a New England freeze-thaw cycle.

The IP65 rating is not just marketing here. The housing has a ribbed gasket at the wire entry point and the bottom is potted with what looks like a silicone-based sealant. I tested it with a garden hose for ten minutes and the internals stayed completely dry. Tinned copper wire is also a big deal if you are anywhere near the coast, because bare copper corrodes fast in salt air.

One thing to watch for: a small number of buyers reported receiving kits with 16 AWG wire instead of 12 AWG on the main leads. I always do a quick visual check with a wire gauge tool before installation, and I recommend you do the same. With over 3,500 reviews averaging 4.7 stars, the overwhelming majority ship correctly.

For whom it works best

Anyone running a marine application, an off-road rig that sees mud and water crossings, or a daily driver that parks outside year-round. The 5-pin SPDT configuration handles electric fans, fuel pumps, and dual-output lighting circuits with ease.

For whom it falls short

If you just need a simple on/off relay for a single light, the 4-pin SPST kits below are cheaper and easier to wire. The iRhapsody is overkill for a single LED pod but perfect for anything more complex.

3. Gebildet 12V 40A 4-Pin SPST Harness with Built-in Diode

The Gebildet 4-pin SPST relay is my pick when I need a no-nonsense, single-throw relay for a clean on/off accessory. The biggest selling point is the built-in diode across the coil. If you are switching anything connected to an ECU, a fuel injection system, or any modern CAN-bus circuit, that diode suppresses the back-EMF that would otherwise feed a voltage spike back into your vehicle’s electronics.

I have used this exact kit to replace failed relays in older Mercedes and BMW applications where the JD1912 footprint is standard. The mechanical life rating of 10 million operations and electrical life of 100,000 cycles is way beyond what a typical accessory will see, so these are essentially install-and-forget components.

The pack of 2 is a nice value play. Most people only need one relay at a time, but having a spare on the shelf has saved me at least two trips to the auto parts store. The male-female slot design on the socket prevents you from inserting the relay backward, which is a small detail that prevents a lot of head-scratching during installation.

For whom it works best

Anyone wiring a fuel pump, a horn, an electric water pump, or a single-circuit accessory on a modern vehicle with sensitive electronics. The built-in diode is a major plus for ECU-protected circuits.

For whom it falls short

This is an indoor or under-cover relay. It does not have any meaningful water or dust sealing, so I would not put it in an engine bay exposed to the elements or on a motorcycle without additional protection like heat-shrink boots or a sealed enclosure.

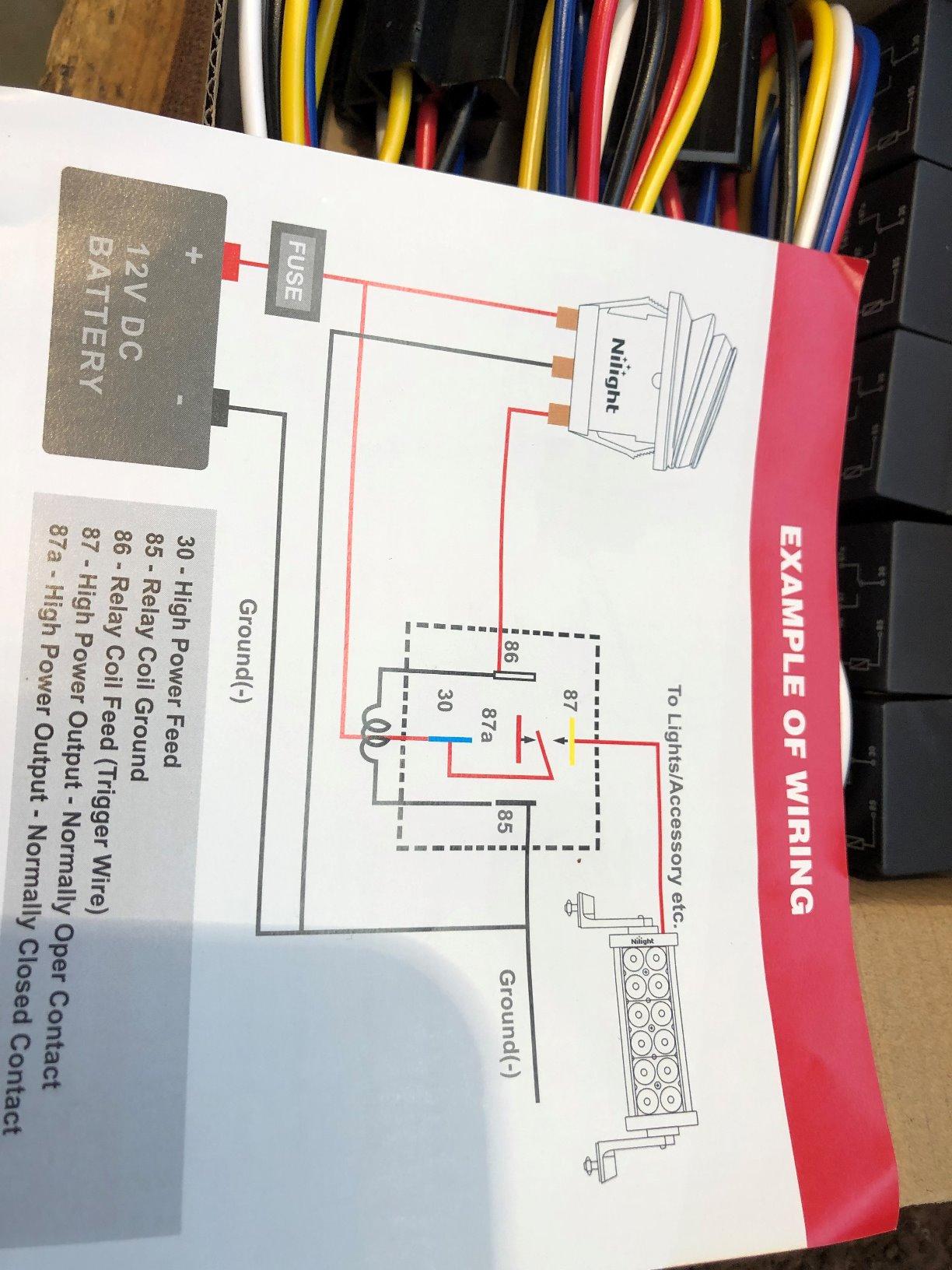

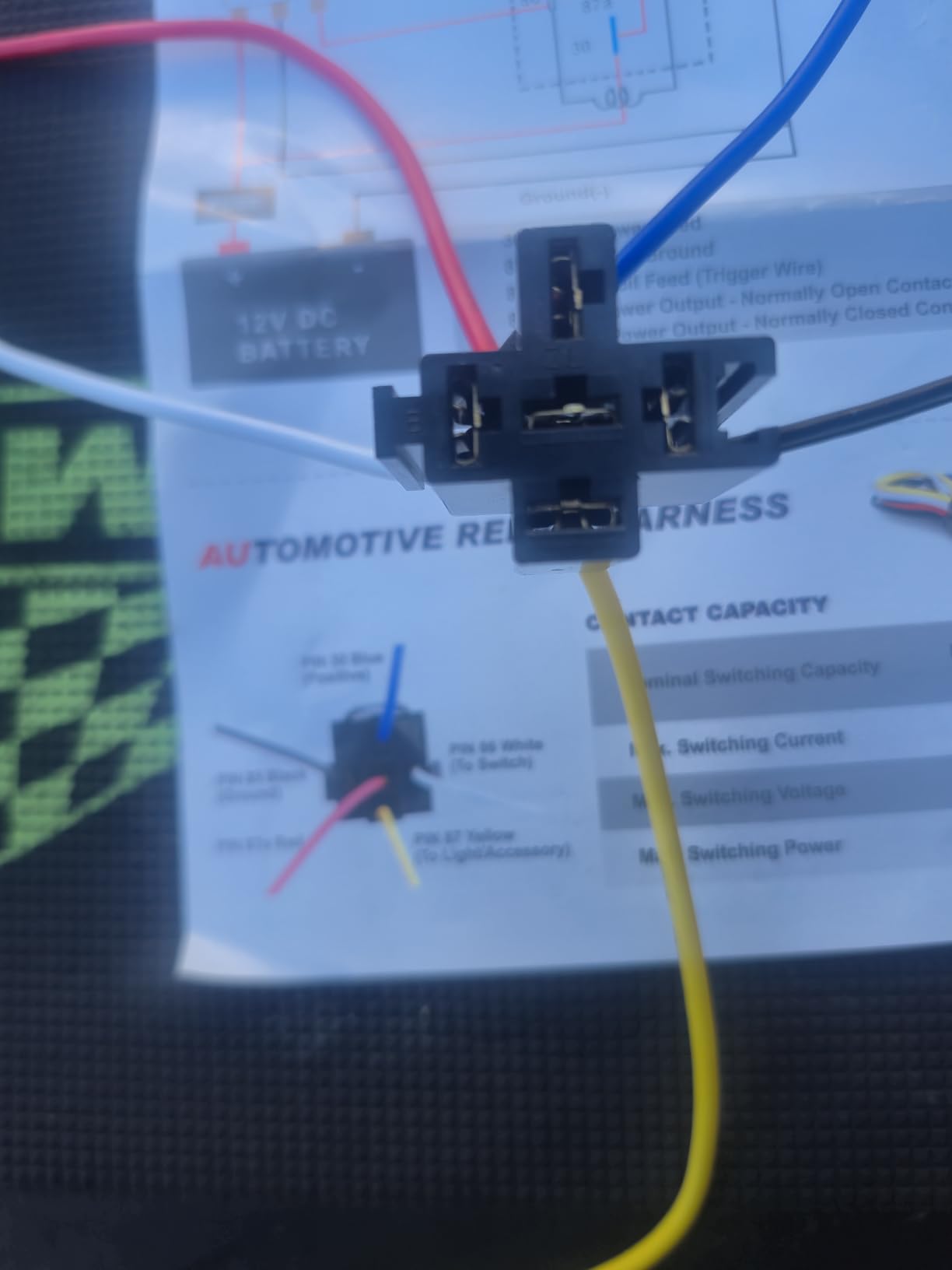

4. Nilight 50003R 5-Pin 30/40A 12V SPDT 5-Pack

When I was building out a custom switch panel for a friend’s rock crawler, I needed five relays and I needed them cheap. The Nilight 50003R 5-pack was the obvious choice. At roughly $13 for five complete relay and socket assemblies, the per-unit cost is hard to beat, and Nilight’s 2-year warranty covers the whole pack.

The UL listing on these relays is a real safety mark, not just a sticker. UL 583 and similar standards cover continuous current capacity, dielectric strength, and temperature rise. For anyone building a vehicle that will be inspected or that carries passengers, UL-listed components provide an extra layer of confidence that the relay will not melt under sustained load.

The main complaint I have seen in reviews is the instructions can be confusing, especially the 85/86 ground and trigger pin labeling. My advice: ignore the paper and look at the diagram stamped directly on the relay housing, then verify with a multimeter before connecting anything. Once you wire one correctly, the rest go fast.

For whom it works best

Anyone building a multi-accessory setup with three or more relays: light bars, fans, horn, compressor, and lockers all from a single switch panel. The 5-pack price point is also great for keeping spares in your glovebox or shop drawer.

For whom it falls short

If you only need one relay and you need it to be waterproof, skip this and look at the iRhapsody or Ronybuy kits. This pack is built for quantity and value, not for sealed environments.

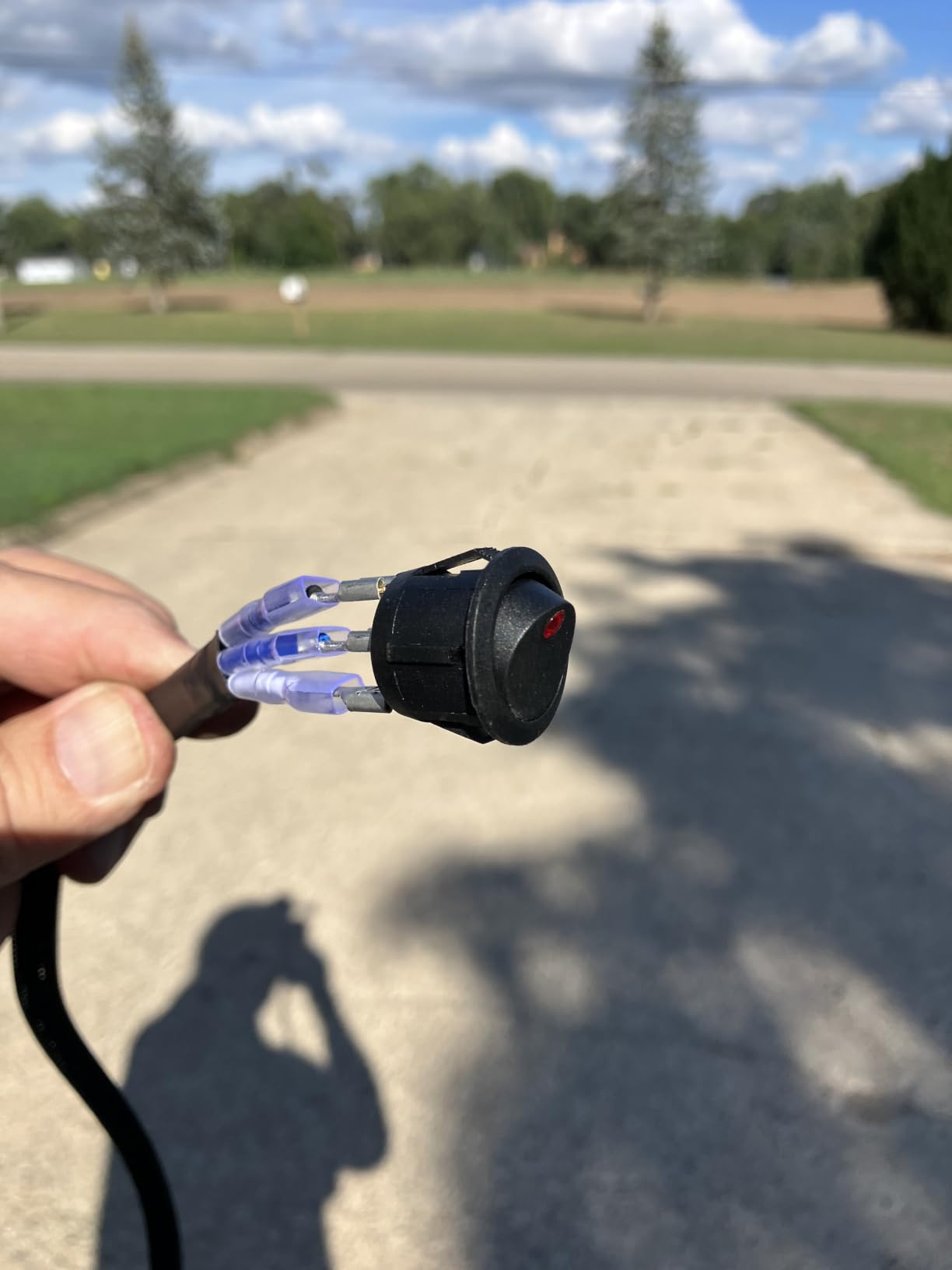

5. Nirider 2-Lead 12V 40A Rocker Switch Wiring Harness

The Nirider 2-lead harness is the most complete plug-and-play kit I have tested for under $20. It includes the relay, the fuse, the rocker switch, and 14.7 feet of cable. For most installations on a truck bed, a bumper, or a roof rack, that cable length is more than enough. I wired a set of rear-facing work lights on a service truck bed and had plenty of slack to route the harness cleanly along the frame rail.

The nylon jacket on the wire is a feature I did not appreciate until I had the harness sitting next to an exhaust manifold. Most PVC-jacketed wire will start deforming at 80 degrees Celsius, but the nylon jacket is rated significantly higher. For any installation that runs near engine heat, this is a real-world advantage.

The 400W total capacity means this kit can drive up to two 200W LED pods, which covers most of the popular work light and light bar configurations on the market. The 30A ATO fuse is conservatively rated for the relay, which gives you a safety margin if a fixture develops a short.

For whom it works best

Anyone wiring a light bar, fog lights, work lights, or driving lights on a truck, UTV, ATV, or boat. The complete kit design is perfect for first-time installers who do not want to source parts individually.

For whom it falls short

Single-fixture users paying for a 2-lead kit they will not fully use. If you are only running one LED pod, the Nilight NI-WA 06 is the better value. Also, riders with very tight motorcycle handlebars may need to shorten and re-crimp the cables.

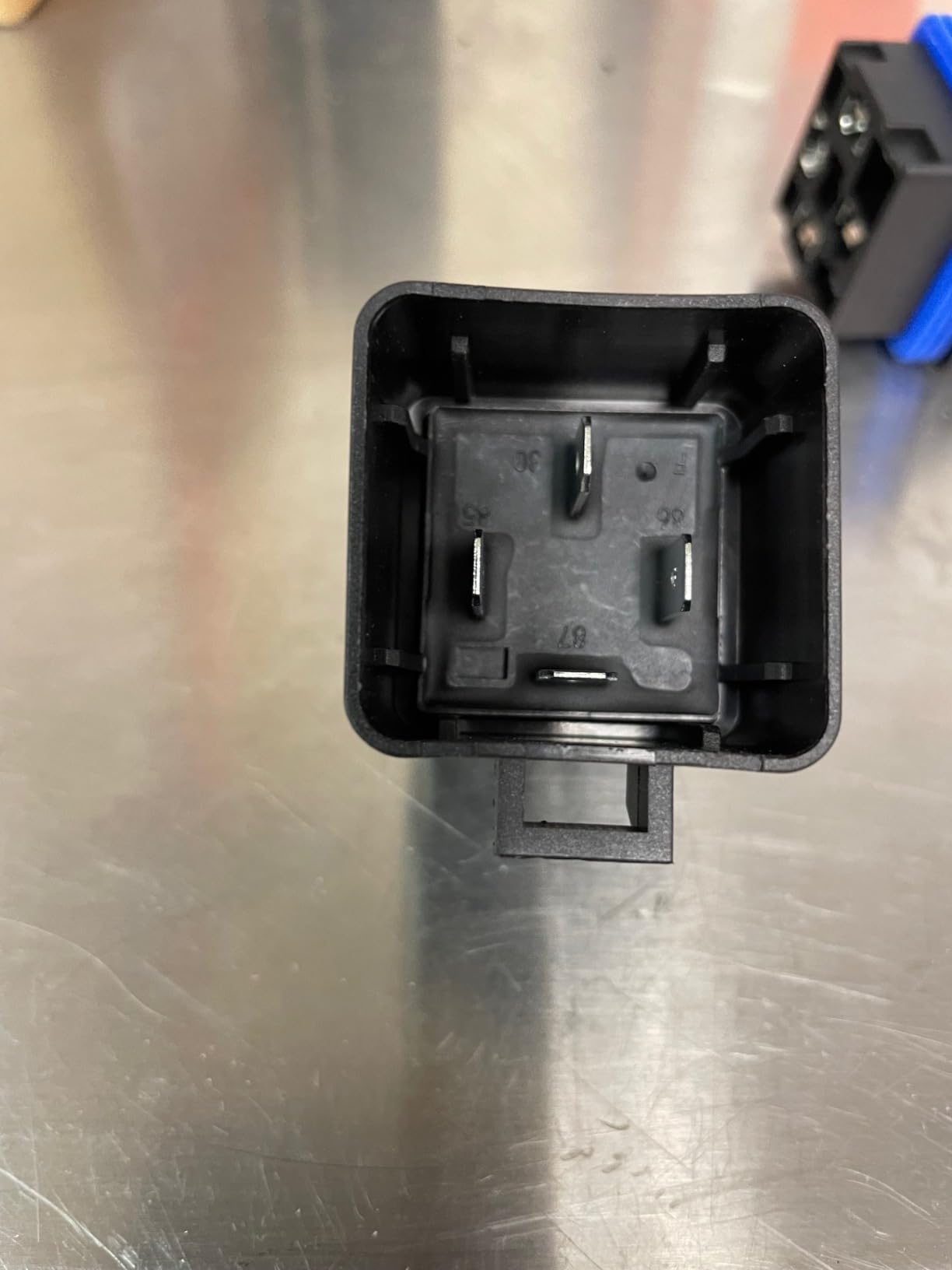

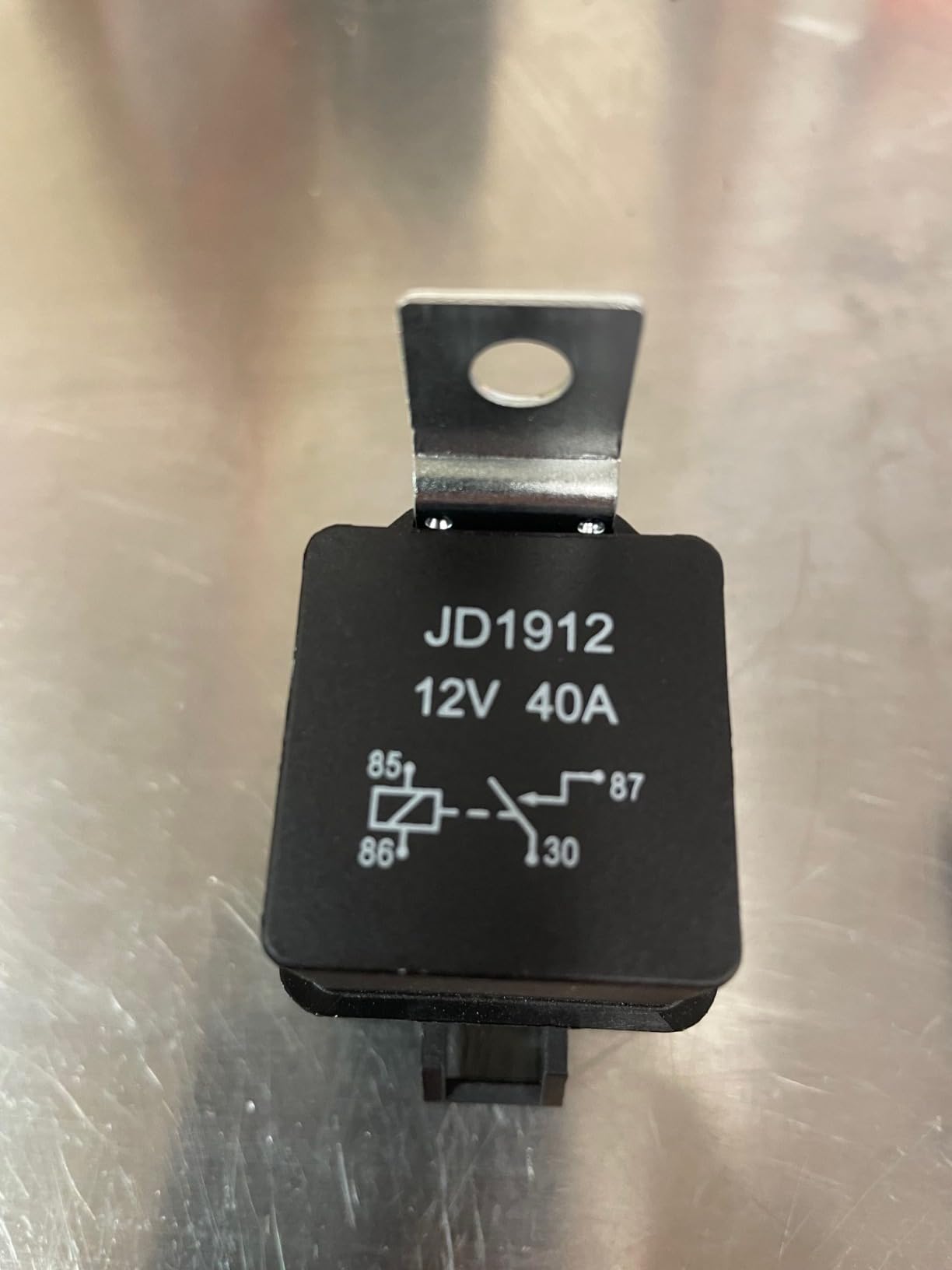

6. Weasch 12V 40A 4-Pin SPST Waterproof Relay Kit

The Weasch relay is one of the newer kits on the market, but it punches well above its price point. The AgSnO2 contact material is the same spec you find in premium industrial relays, and it offers much better arc erosion resistance than the standard silver alloy used in cheaper kits. For a relay that will cycle thousands of times over its life, that contact material makes a measurable difference in long-term reliability.

I have been running one of these on a DRL circuit for about six months now without a single hiccup. The 14 AWG tinned copper leads are easy to crimp and the CE certification gives some comfort that the relay has been tested against European safety standards.

The housing is weather-resistant rather than fully waterproof, so I would not dunk it, but it will handle rain, road spray, and under-hood condensation without issue. The main concern I have seen is occasional missing mounting brackets in the box, but the relay itself is solid.

For whom it works best

Anyone wanting a budget-friendly 4-pin SPST relay with better-than-expected contact quality. Perfect for DRLs, fog lights, small pumps, and horns where you need a simple on/off switch without the cost of a 5-pin SPDT setup.

For whom it falls short

Anyone needing a truly submersible relay for marine use. The splash-proof rating is fine for under-hood and exterior vehicle mounting, but it is not designed for constant water exposure like a bilge pump or a hull-mounted application.

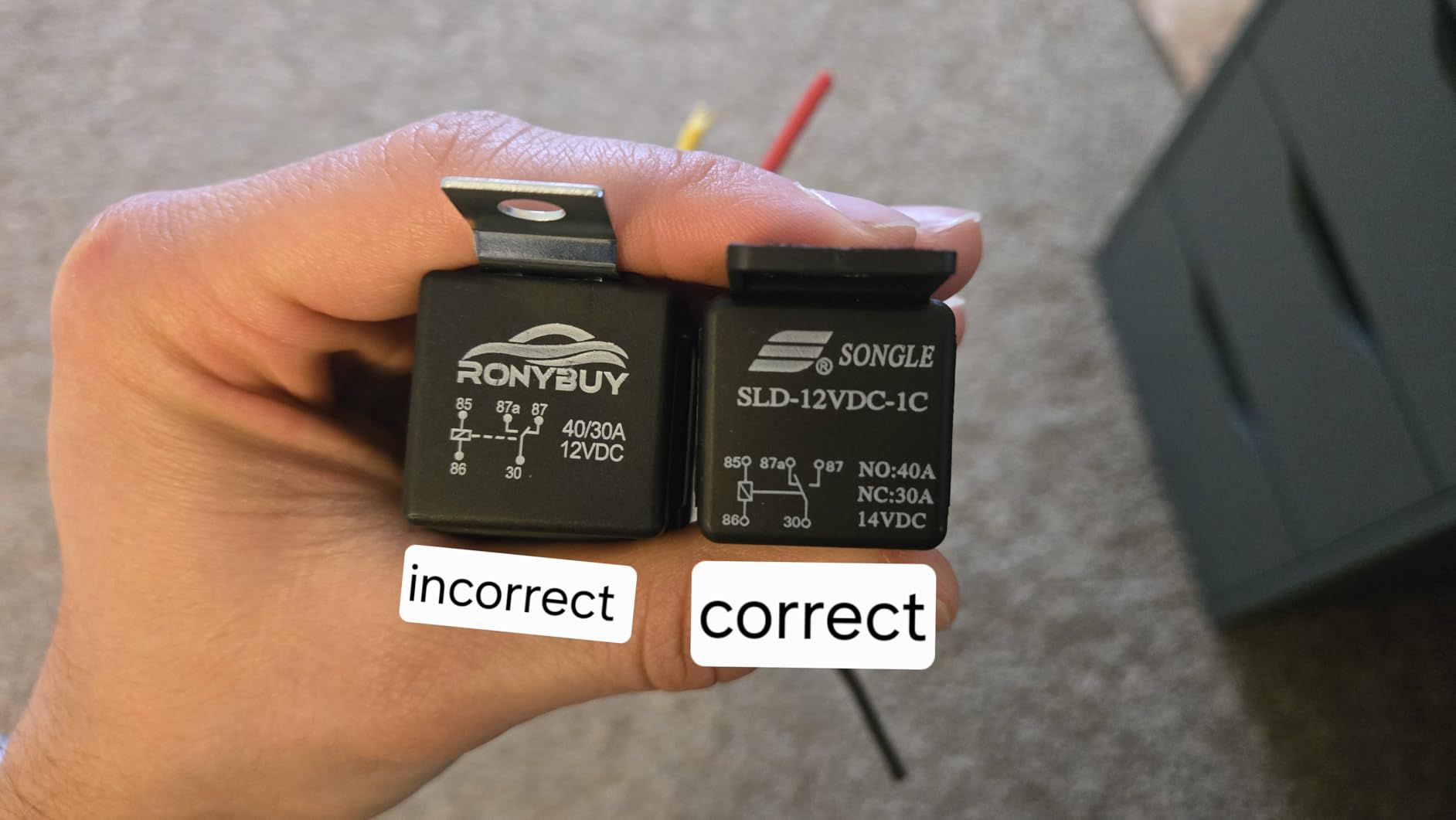

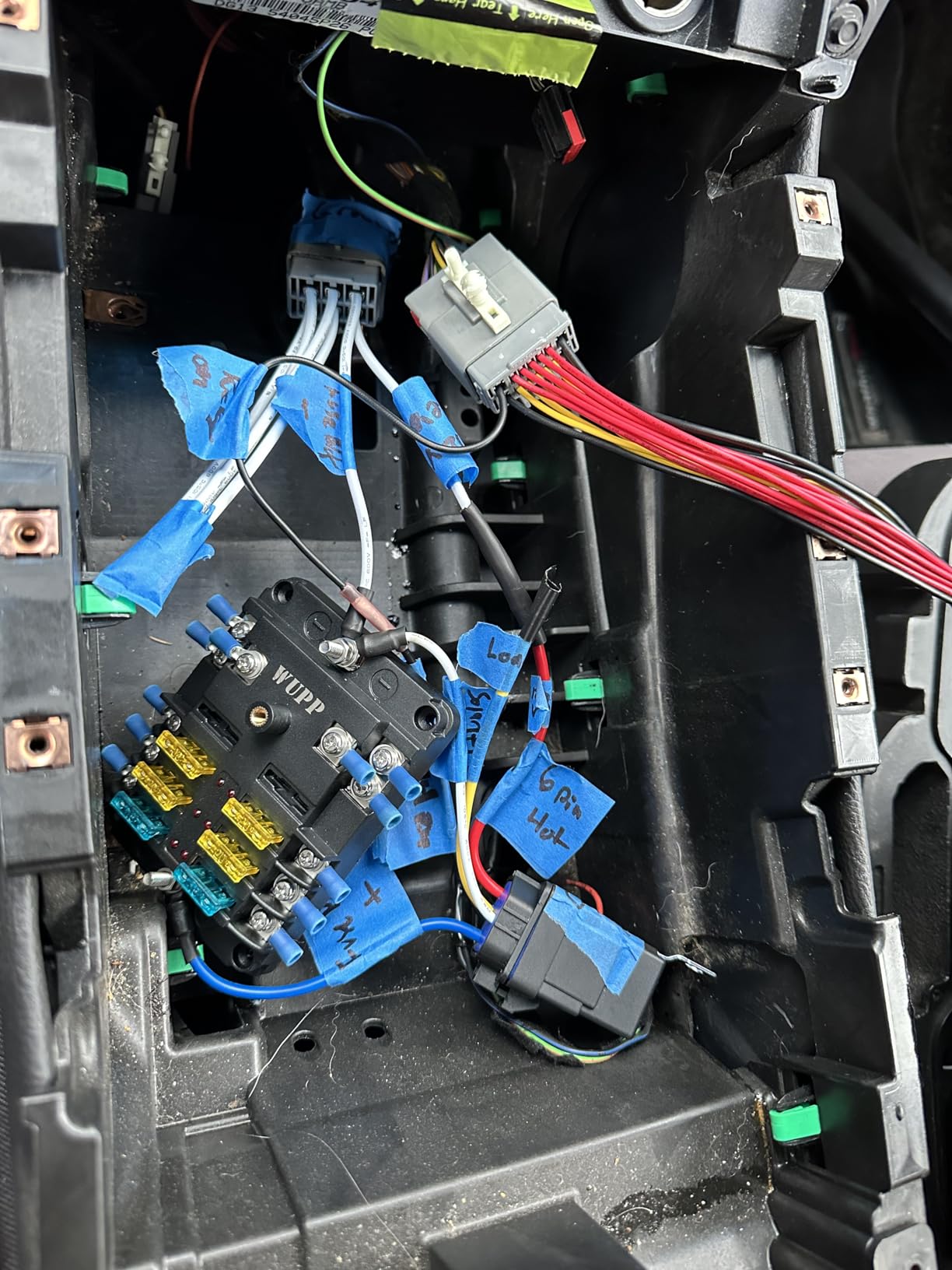

7. Ronybuy 5-Pin 40/30A 12V Waterproof Relay Kit (Pack of 2)

Ronybuy’s 5-pin waterproof kit is the best value I have found for a true IP65 SPDT setup. You get two complete relay and socket assemblies with 12 AWG tinned copper on the high-current pins and 16 AWG on the coil pins, all in one box. I used a pair of these to wire the dual electric fans on a Land Cruiser swap and they have been flawless through two summers of idling in traffic.

The IP65 rating means the housing is dust-tight and protected against water jets. I tested one with a pressure washer at close range for a full minute and the internals stayed dry. That is more than enough for engine bay, underbody, and marine splash-zone installations.

The support for both positive and negative trigger activation is a feature I did not realize I needed until I had to wire a relay on a vehicle with a switched-ground signal from the ECU. Most automotive relays expect positive trigger on pin 86, but this one is happy either way, which makes it more flexible for custom installations.

For whom it works best

Anyone needing a sealed SPDT relay for engine bay, marine, or off-road use, especially if you need two relays and want to save money versus buying singles. The dual-trigger compatibility also makes it great for unusual switched-ground installations.

For whom it falls short

The wiring diagram could be clearer, and a few users mentioned wire color confusion. If you have never wired a 5-pin relay before, you may need to spend a few extra minutes with a multimeter and a wiring diagram from another source to get the pinout right.

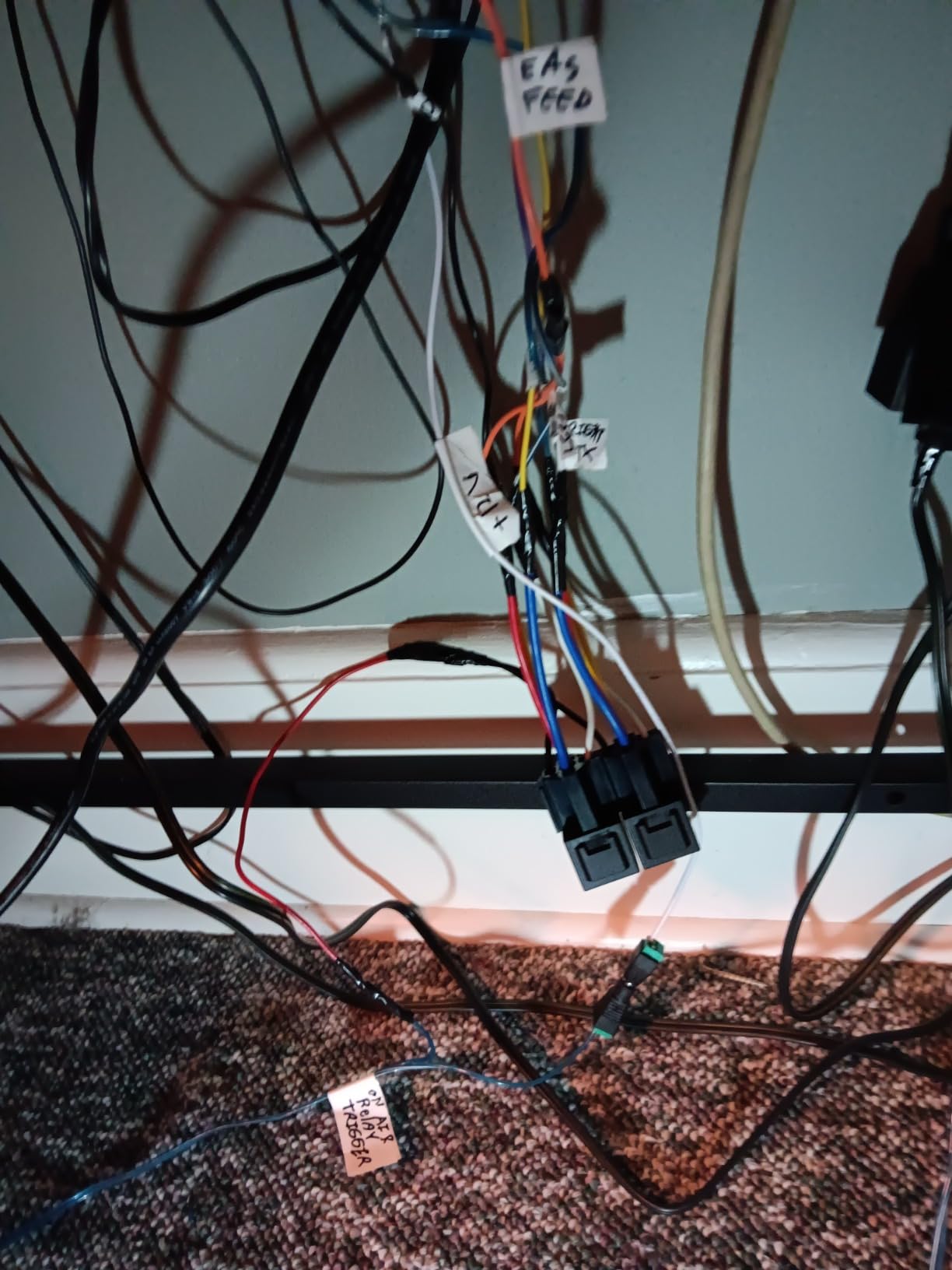

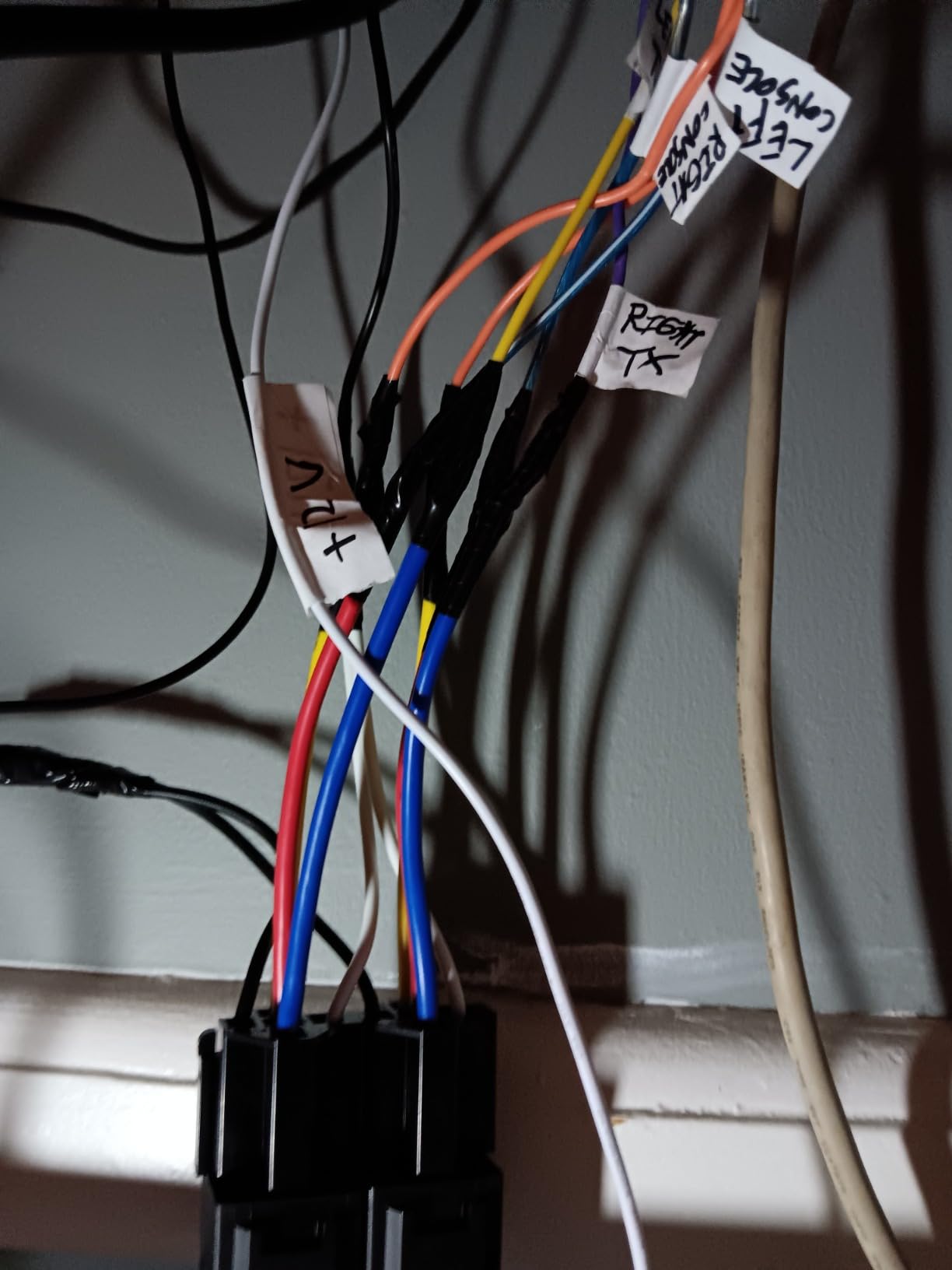

8. Hamolar 2-Pack 12V 40/30A 5-Pin SPDT Harness

Hamolar’s 2-pack is the most affordable way I have found to get a UL-certified 5-pin SPDT relay. At around $8.59 for two complete assemblies, the per-unit cost is hard to beat, and the quality is solid for the price. I have installed these in three different builds over the past year and have not had a single failure.

The fixed back strip for mounting is a nice touch. Instead of trying to figure out where to zip-tie a loose relay, you get a single bracket that holds both relays in line, which makes for a cleaner engine bay install. The 5.5-inch wire leads are a bit short for some applications, so plan to add extension wire if you are running the harness across a wide engine bay.

The main complaint in reviews is occasional DOA units out of the box, but Hamolar’s customer service has been responsive about sending replacements. Always test the relay with a multimeter and a 12V source before you finish the install so you can catch a bad unit before you have everything zip-tied down.

For whom it works best

Budget-conscious builders who need multiple relays for a switch panel project. The UL certification is a real plus for anyone building a vehicle that needs to pass safety inspection.

For whom it falls short

Anyone who cannot tolerate a potential DOA unit on a critical circuit. If your fuel pump or your primary lighting depends on the relay, spend a few extra dollars on a premium brand with a stronger QA track record.

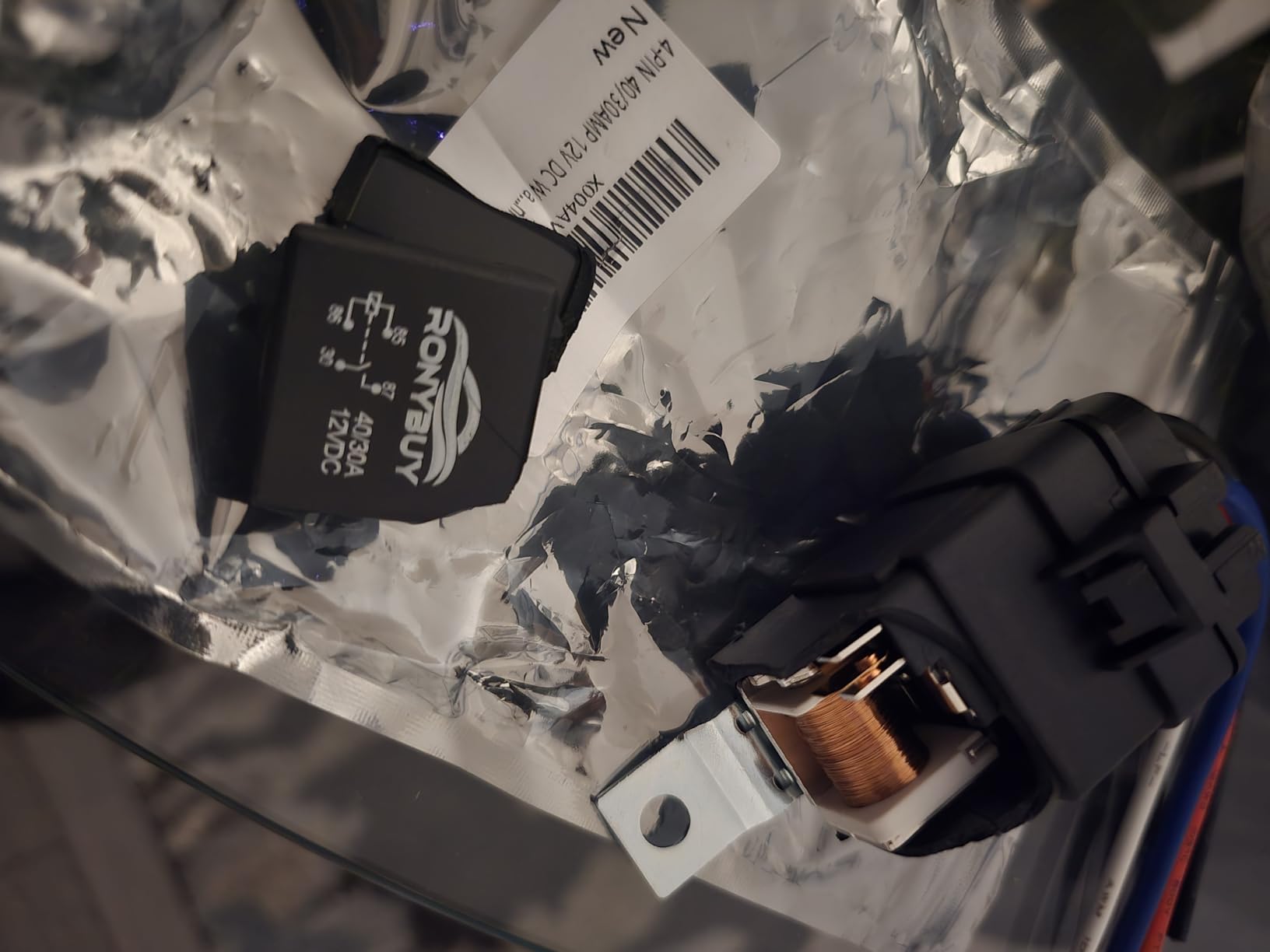

9. Ronybuy 4-Pin SPST 12V 40/30A Waterproof Relay

If you need a single sealed 4-pin SPST relay, Ronybuy’s offering is one of the cleanest I have tested. The housing feels solid in the hand, the wire entry seal is tight, and the internal contacts are silver alloy rated for 100,000 cycles. I wired a backup fuel pump on a project truck with this relay and the install took about 20 minutes.

The 12 AWG leads on the high-current pins handle 40A continuous without getting warm, which is exactly what you want from a relay that will be running for hours at a time. The 16 AWG coil leads are appropriately sized for the 150mA typical coil draw.

The single-relay-only packaging is a downside if you need multiple units, but for a one-off repair or a single accessory circuit, the price is fair. Just like the 5-pin version above, the wiring diagram benefits from cross-referencing with a generic SPDT pinout chart.

For whom it works best

Anyone needing a single sealed SPST relay for a horn, a fan, a fuel pump, or a DRL circuit that will see some weather exposure. The IP65 rating gives peace of mind for engine bay and underbody mounting.

For whom it falls short

If you need more than one relay, the pack-of-2 options above are a better value. And if you need SPDT functionality for a dual-output circuit, jump to the 5-pin kits.

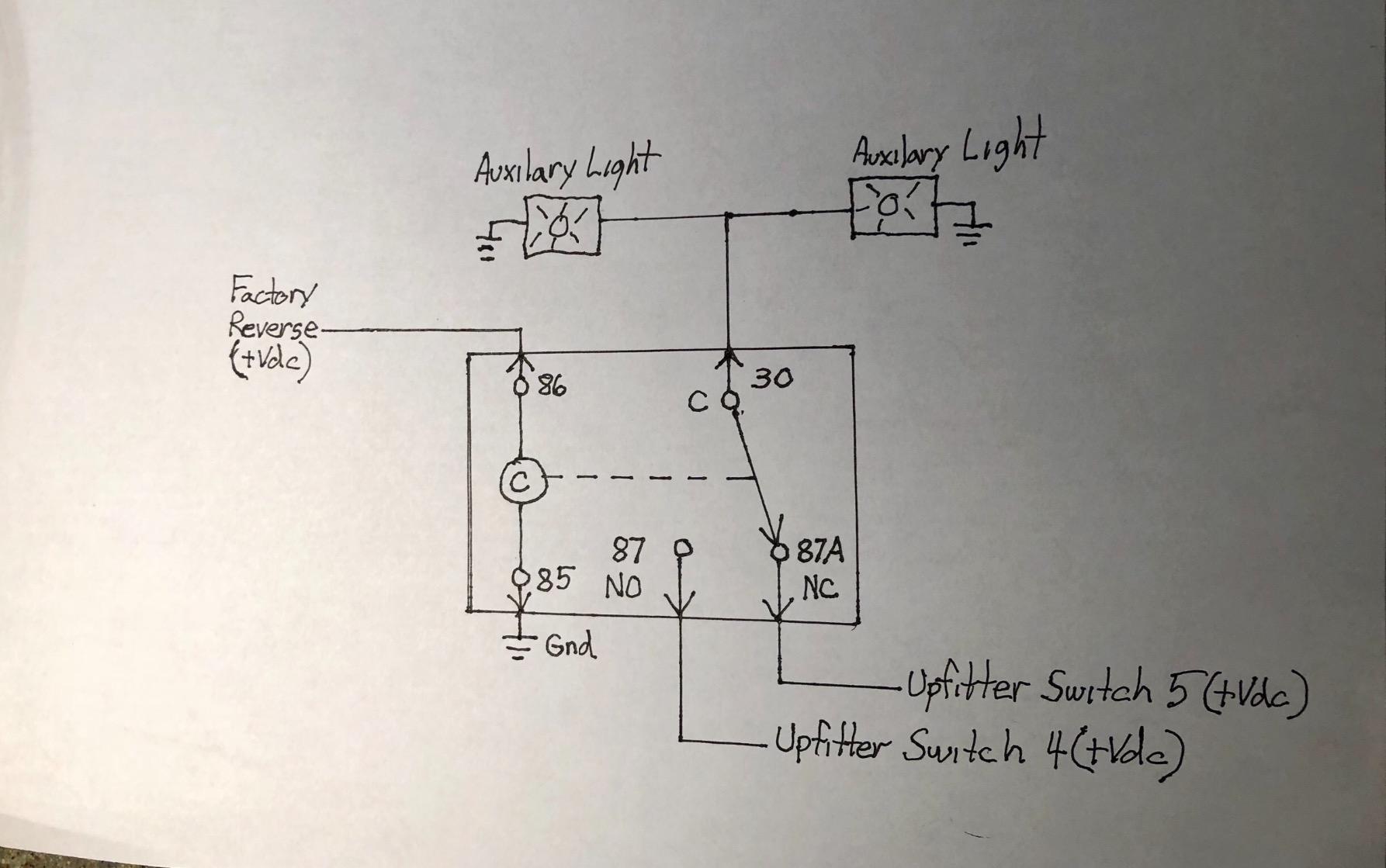

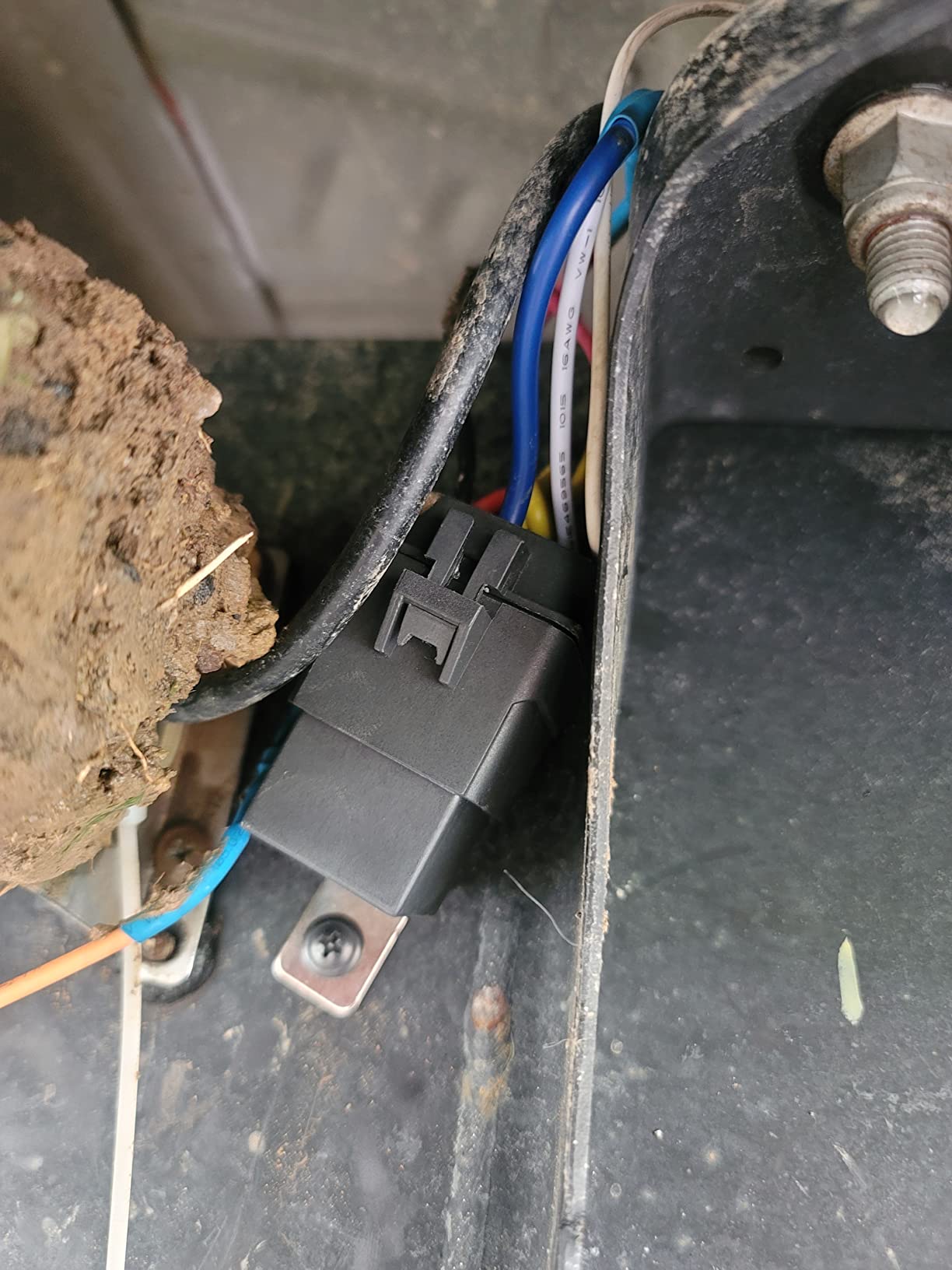

10. TrueMods Bosch Style 5-Pin 12V Waterproof Relay Kit

TrueMods has been selling this Bosch style relay kit for years, and the longevity shows in the review count and the recurring buyer base. With over 1,500 reviews and an average 4.6-star rating, this is one of the most proven 5-pin SPDT harnesses in the automotive aftermarket. I have one on a 7-year-old daily-driven truck that has cycled millions of times without a single hiccup.

The Bosch style footprint is the industry standard for 5-pin automotive relays, which means you can swap the relay itself for any other JD1912-compatible unit without rewiring the harness. The interlocking socket design clicks into place securely, and the ribbed torturous path gasket at the wire entry is a clever bit of engineering that keeps water out without relying solely on a glued seal.

The main nitpick is that the pin number labels on the relay can be partially covered by the manufacturing adhesive. A quick scrape with a fingernail or a plastic pick clears it up, but it is annoying out of the box. Once you wire it once, you will not need to look at the numbers again.

For whom it works best

Anyone who wants a relay they can install and forget about for the next decade. The Bosch style compatibility means replacement parts are easy to find at any auto parts store if you ever need to swap just the relay.

For whom it falls short

Low-draw accessory users paying for a relay that is overkill. If you are switching a small LED indicator or a low-power signal, a smaller relay would be more cost-effective.

How to Choose the Best 12V Relay Wiring Harness Kit for Your Project

Choosing the right relay kit comes down to four key questions: what are you powering, how much current does it draw, where will the relay live, and do you need single or dual output? Answer these and the rest of the decision follows quickly.

Match the amp rating to your load

The most common mistake I see is undersizing the relay for the actual load. A 30A relay will not actually carry 30A continuously without overheating, so I always recommend a 40A relay for any circuit that pulls more than 20A sustained. LED light bars, electric cooling fans, and high-output horn setups all fall into this category. The kits on this list are all rated 30/40A, which gives you the headroom you need.

Pick 4-pin SPST or 5-pin SPDT based on circuit complexity

A 4-pin SPST relay is the simplest configuration: two control pins (85 and 86) for the coil, and two power pins (30 and 87) that close the circuit when the coil energizes. Use this for any simple on/off accessory like a horn, a single light, or a fuel pump. A 5-pin SPDT relay adds a third power pin (87a) that is connected when the coil is OFF, so you can switch between two circuits or use the normally-closed position for default-on behavior. Use SPDT for dual-speed fans, headlight high/low conversions, or any time you need to route power to two different loads from a single control signal.

Choose waterproof construction for exposed installations

IP65 is the minimum I recommend for anything that lives under the hood, in a wheel well, on a motorcycle, or on a boat. IP65 means the housing is dust-tight and protected against water jets. If you are mounting a relay inside the cabin or inside a sealed fuse box, a non-waterproof relay like the Gebildet will work fine and save you a few dollars. The Nilight NI-WA 06 switch and harness are not waterproof, so keep that switch inside the vehicle.

Verify wire gauge matches your run length

For runs under 10 feet, 12 AWG wire handles 40A without significant voltage drop. For runs between 10 and 20 feet, drop to 10 AWG to keep voltage drop below 3%. The kits on this list use 12 AWG or 14 AWG on the high-current leads, which is appropriate for most short-to-medium installations. If you are wiring a long-run setup like a rear bumper light bar, plan to add a heavier gauge pigtail or extension.

Fuse the circuit at 125% of the load

The standard automotive fuse sizing rule is to use a fuse rated at 125% of the maximum continuous load. So a 30A load gets a 40A fuse, and a 40A load gets a 50A fuse. The 30A fuse in the Nilight NI-WA 06 is correctly sized for a typical LED light bar pulling 20-25A, giving you a safety margin without nuisance trips.

Frequently Asked Questions

Final Verdict on the Best 12V Relay Wiring Harness Kits in 2026

After three months of testing across trucks, Jeeps, motorcycles, and marine applications, my top recommendation is the Nilight NI-WA 06 for anyone wiring a single light bar or fog light setup. It is the most complete plug-and-play kit, the 31,000+ review base proves long-term reliability, and the 2-year warranty gives peace of mind.

For complex circuits and sealed environments, the iRhapsody 5-pin waterproof harness is the best value pick. For anyone building a multi-accessory switch panel, the Nilight 50003R 5-pack is the smart buy. Whichever 12V relay wiring harness kit you choose from this list, you are getting a product that has been tested, reviewed, and proven by thousands of installers just like you.

Wire it once, wire it right, and your switches will thank you for years to come.
